Walter ICECUT™ Annular Cutters, Weldon Shank, 1 Length on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

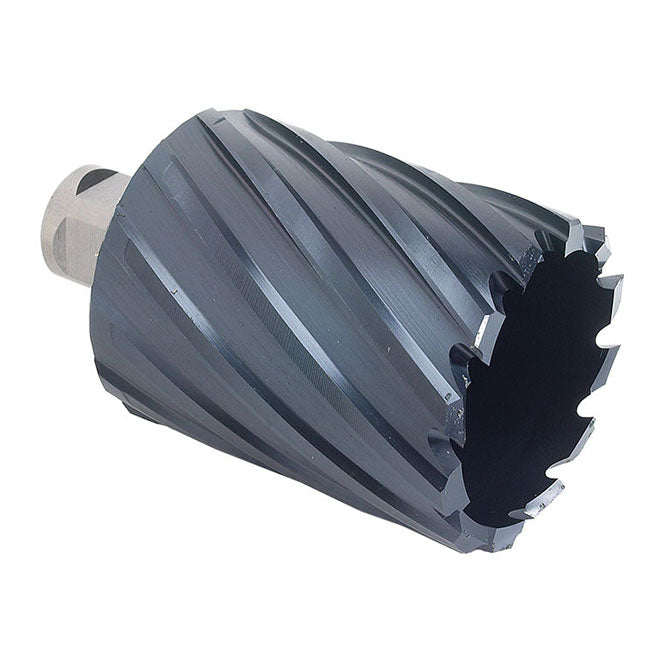

Walter ICECUT™ Annular Cutters
Made for cutting hard tensile materials and hard to lubricate areas
1 Length, AICrN Anti-Friction Coating, Weldon Shank
The new ICECUT™ annular cutters are coated with an exclusive mixture of chromium and aluminum (AICrN) and are designed to be used where lubricants are not permitted or problematic to apply. This new technology outperforms any Titanium (TiN) or Titanium-Aluminum (TiAIN) coating cutters. By incorporating a chromium aluminum blend into the coating. Walter ICECUT annular cutters can withstand at least 200 degrees Celsius higher temperatures and produce less heat than a conventional TiAIN cutter. This exclusive coating makes the ICECUT™ more resistant to higher stress under load and instant impact.
Must be used with pilot pin 05-Z 001
Features:
- Fully ground extra large flutes
-
- Modern tooth design and cutter geometry
-
- New high technology coating
-
- Weldon shank
-
- 1 Max Cutting Depth
-
For cutting the following materials;
- Aluminum
-
- Stainless steel
-
- Steel
-
- Structural Steel
-
Options:
Diameter
Part No.
1 2 (12.7 mm)
05-B 008
9 16 (14 mm)
05-B 009
5 8 (16.0 mm)
05-B 010
11 16 (17.5 mm)
05-B 011
3 4 (19.0 mm)
05-B 012
3 16 (20.6 mm)
05-B 013
7 8 (22.2 mm)
05-B 014
15 16 (23.8 mm)
05-B 015
1 (25.4 mm)
05-B 100
1-1 16 (27 mm)
05-B 101
1-1 8 (28.6 mm)
05-B 102
1-3 16 (30.2 mm)
05-B 103
1-1 4 (31.8 mm)
05-B 104
1-5 16 (33.3 mm)
05-B 105
1-3 8 (34.9 mm)
05-B 106
1-7 16 (36.5 mm)
05-B 107
1-1 2 (38.1 mm)
05-B 108
1-9 16 (39.7 mm)
05-B 109
1-5 8 (41.3 mm)
05-B 110
1-3 4 (44.5 mm)
05-B 112
1-13 16 (46 mm)
05-B 113
1-7 8 (47.6 mm)
05-B 114
1-15 16 (49.2 mm)
05-B 115
2 (51 mm)
05-B 200
2-1 16 (52.4 mm)
05-B 201
2-1 8 (54 mm)
05-B 202
Diameter
1/2" (12.7 mm), 9/16" (14 mm), 5/8" (16 mm), 11/16" (17.5 mm), 3/4" (19.0 mm), 3/16" (20.6 mm), 7/8" (22.2 mm), 15/16" (23.8 mm), 1" (25.4 mm), 1-1/16" (27 mm), 1-1/8" (28.6 mm), 1-3/16" (30.2 mm), 1-1/4" (31.8 mm), 1-5/16" (33.3 mm), 1-3/8" (34.9 mm), 1-7/16 " (36.5 mm), 1-1/2" (38.1 mm), 1-9/16" (39.7 mm), 1-5/8" (41.3 mm), 1-3/4" (44.5 mm), 1-13/16 " (46 mm), 1-7/8" (47.6 mm), 1-15/16" (49.2 mm), 2 " (51 mm), 2-1/16 " (52.4 mm), 2-1/8 " (54 mm)
