Lincoln Viking 3350 XG PAPR with Standard Battery

Powered Air Purified Respirator welding helmet system with standard battery – K3930-4

Top Features

• Premium Optics – 4C® Lens Technology, 1 1 1 1 Optical Clarity and large 12.5 sq. inch viewing area

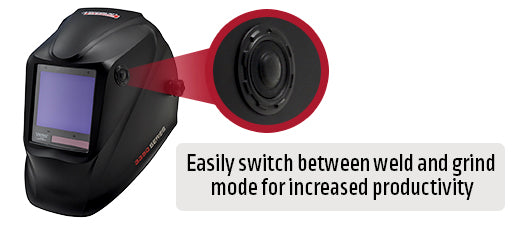

• External Grind Control – Low profile, external button allows operator to switch between weld and grind mode in seconds
• Patented Air Delivery – Unique baffling allows the user to adjust airflow direction
• HEPA Filter – Multi-compontent filter system provides 99.97% particulate filtration at 0.3 microns.

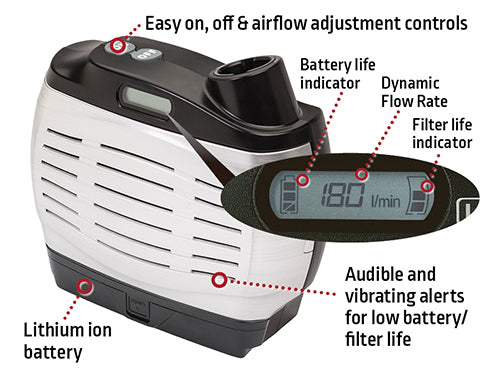

• Intelligent Blower with Standard Battery – Rechargeable lithium ion battery provides up to 9 hours of charge to the smart blower system featuring an LED display, audible & vibratory alerts and automatic speed adjustments

• The NIOSH 42 CFR Part 84 approved loosing fitting positive pressure respirator purifies ambient air from the shop and delivers filtered, breathable air to operator. The top features external grind mode control, intelligent blower system with HEPA filter, innovative air delivery design and an extra-large 12.5 Sq. Inch auto-darkening lens with our exclusive 4C® Lens technology.

  Respiratory Specifications
  Compliance Certification		NIOSH 42 CFR Part 84
  Classification		Loose Fitting Powered Air Purifying Respirator
  Assigned Protection Factor(APF)		25
  Filter Type		High Efficiency Particulate Air Filter (HEPA)
  Air Flow		Low Speed: 180+ Ipm (6+ cfm) High Speed: 210+ Ipm (7.4+ cfm)
  Air Flow Adjustment		Automatic and Manual
  Battery Life		Standard: 9 Hours
  Battery Charge Time		Standard: 3 Hours
  Alerts		Audible & Vibratory Alarms for battery life and filter life
  Size of Blower Assembly		8 x 7.5 x 3 in (203 x 191 x 76 mm)
  Belt Size		29 to 52 in. (736 to 1321 mm) *Extension Available
  Welding Helmet Specifications
  Auto-Darkening Viewing Area		3.74 x 3.34 in. (95 x 85 mm)
  Optical Class		1 1 1 1 (per EN 379)
  Lens Switching Speed		1 25,000 sec
  TIG Amp Rating		> 2 Amp
  Helmet Controls		Analog; Shade, Sensitivity and Delay
  Variable Shades		Shade 5 to 13
  Arc Sensors		4
  Helmet Battery Replacement Type		1 CR2450 Replaceable Batteries
  Helmet Compliance		ANSI Z87.1, CSA Z94.3, CE EN379,AS NZS 1338.1
  Warranty		Auto-Darkening Filter: 3 Years Blower: 1 Year


  What s in the box?

  • VIKING 3350 XG PAPR Welding Helmet
  • VIKING PAPR Blower Unit, 29-52 in
  • Padded Belt
  • 2 – Shoulder Straps
  • Hose with FR Cover
  • 2 – HEPA Filters
  • 1 – Pre Filter
  • 1 – Spark screen
  • 1 – Standard Capacity Lithium Ion Battery
  • 1 – 120V Battery Charger
  • Industrial Duffle Bag
  • 7 – 3350 Series Clear Cover Lenses
  • Instruction Manual

  • Link to Replacement Parts
