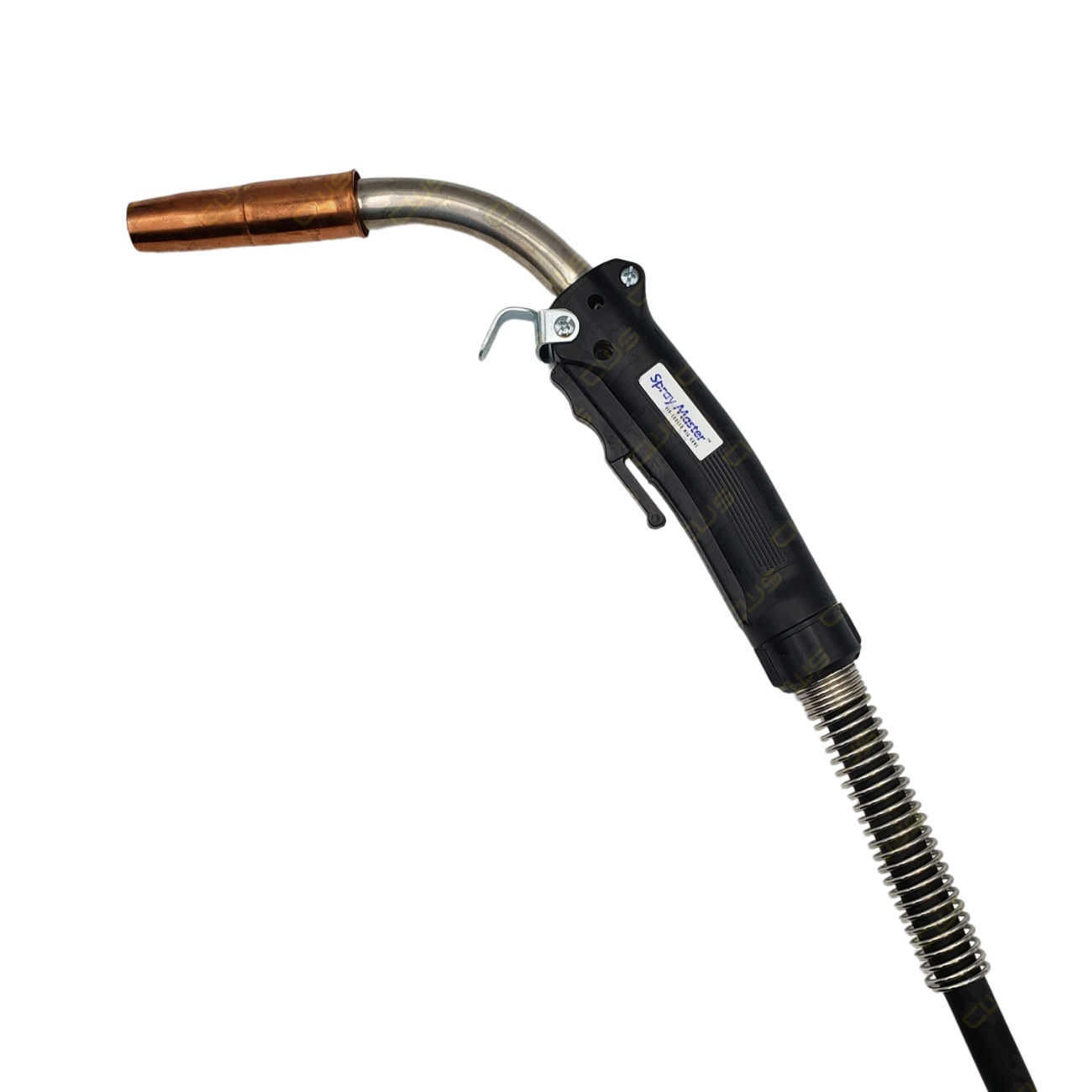

Tweco Spraymaster 250 MIG Gun

NEW Tweco Spraymaster Kits – Compatible with ESAB, Miller, and Lincoln Connections

These packages include power pins for Miller and Tweco No.4 Lincoln Feeders, as well as a 4-Pin-to-5-Pin jumper connection.



Features



• Heavy-duty contact tip and diffuser for improved performance in high heat applications

• Rated 250 AMPS at 80% duty cycle using Argon CO2 gases

• Ergonomic handle design reduces welder’s fatigue

• Simplified direct rear plug for ease of installation

• Easy to repair and maintain – only 10 parts

• Ideal for use with Argon mixed gas for Spray and Pulse welding applications

• Compatibility

  • ESAB Tweco Thermal Arc: Tweco Style Connections with 4-Pin Control Plugs

  • Miller: Intellimatic™, Millermatic® 251 252, MM-35, S-42GL, S-52A, Swingarc™-Dual, Swingarc-Single, S-32S, 52D, 54D, 54E, 60 Series, 70 Series

  • Lincoln: Power MIG series, Activ8™, Activ8X, Flexfeed® 74, Flexfeed® 84, LF-72, LF-74 Series, LN-25 PRO, LN-25X, Power Feed® 84

  • For ESAB Tweco Thermal Arc machines with 8-Pin Plugs, 2160-2142 Jumper must be used

  •

    Consumables

    Nozzle		Nozzle Insulator		Contact Tip		Diffuser		Gooseneck
    Tweco 24A Series		Tweco 34A		Tweco 14 Series		Tweco 54A		Tweco MS64H Series

    Available Options:

    • 15 (4.5m) Length – 1023-1033 (Replaces: 1023-1102, 1023-1112, 1023-1136)
    • 25 (7.6m) Length – 1023-1034 (Replaces: 1023-1108, 1023-1118)

    •

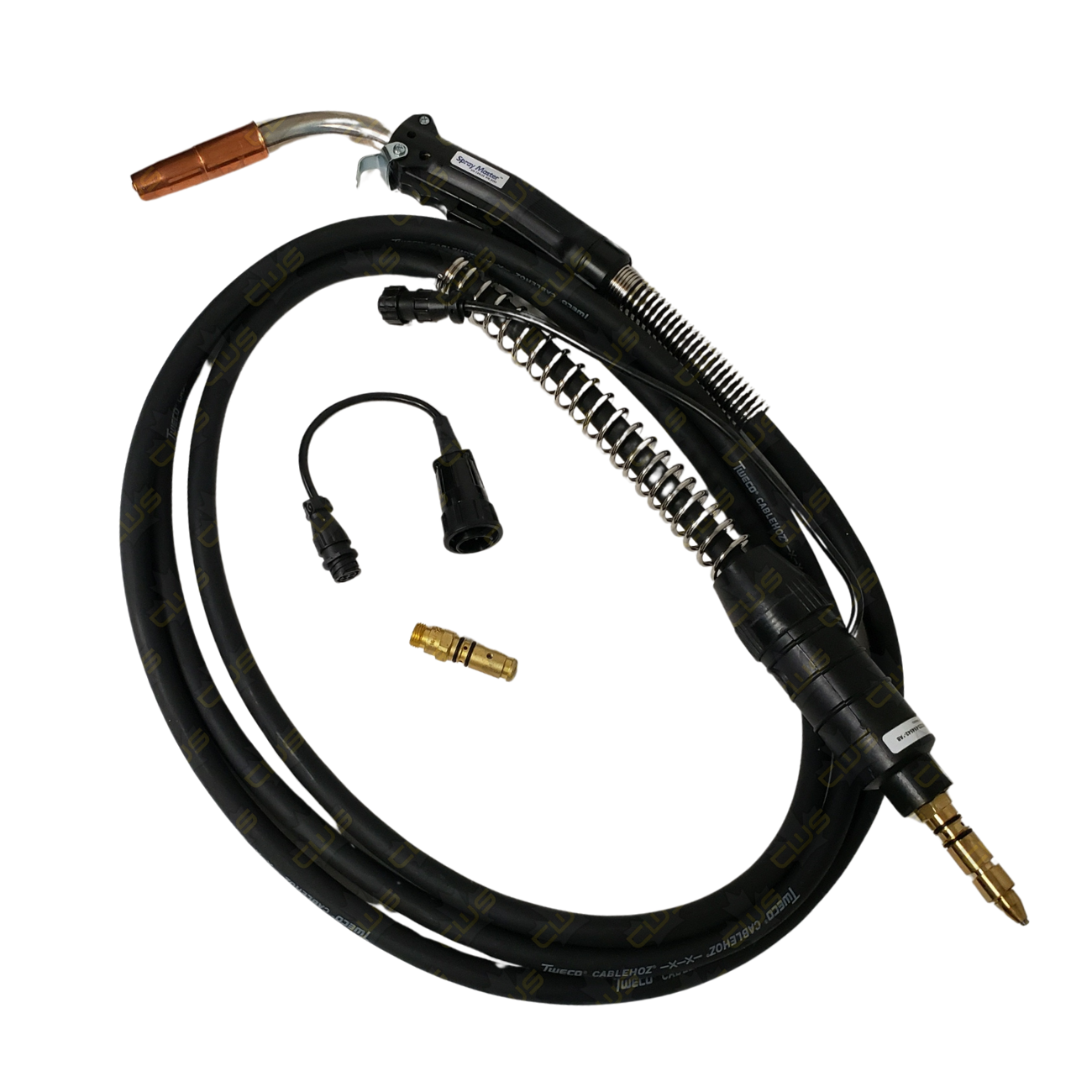

      Included In Box

      • Spraymaster MS250 MIG Torch with Miller Backend Installed
      • 1640-1319 MS64H 60D Conductor Tube

      • 1540-1100 54A Diffuser

      • 1240-1120 24A Nozzle

      • 1340-1100 34A Nozzle Insulator

      • 1140-1102 14-35 0.035 Contact Tip

      • 2060-2137 Tweco to Lincoln ( Bell Plug ) Jumper
      • 2035-2110 Tweco No. 4 Lincoln Backend

      •

    Torch Length	15' (4.5m) Length, 25' (7.6m) Length
