Tweco Classic 5 – 500 AMP MIG Gun Fashion
23 people are viewing this right now
6 products sold in last 15 hours
Selling fast! Over 14 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

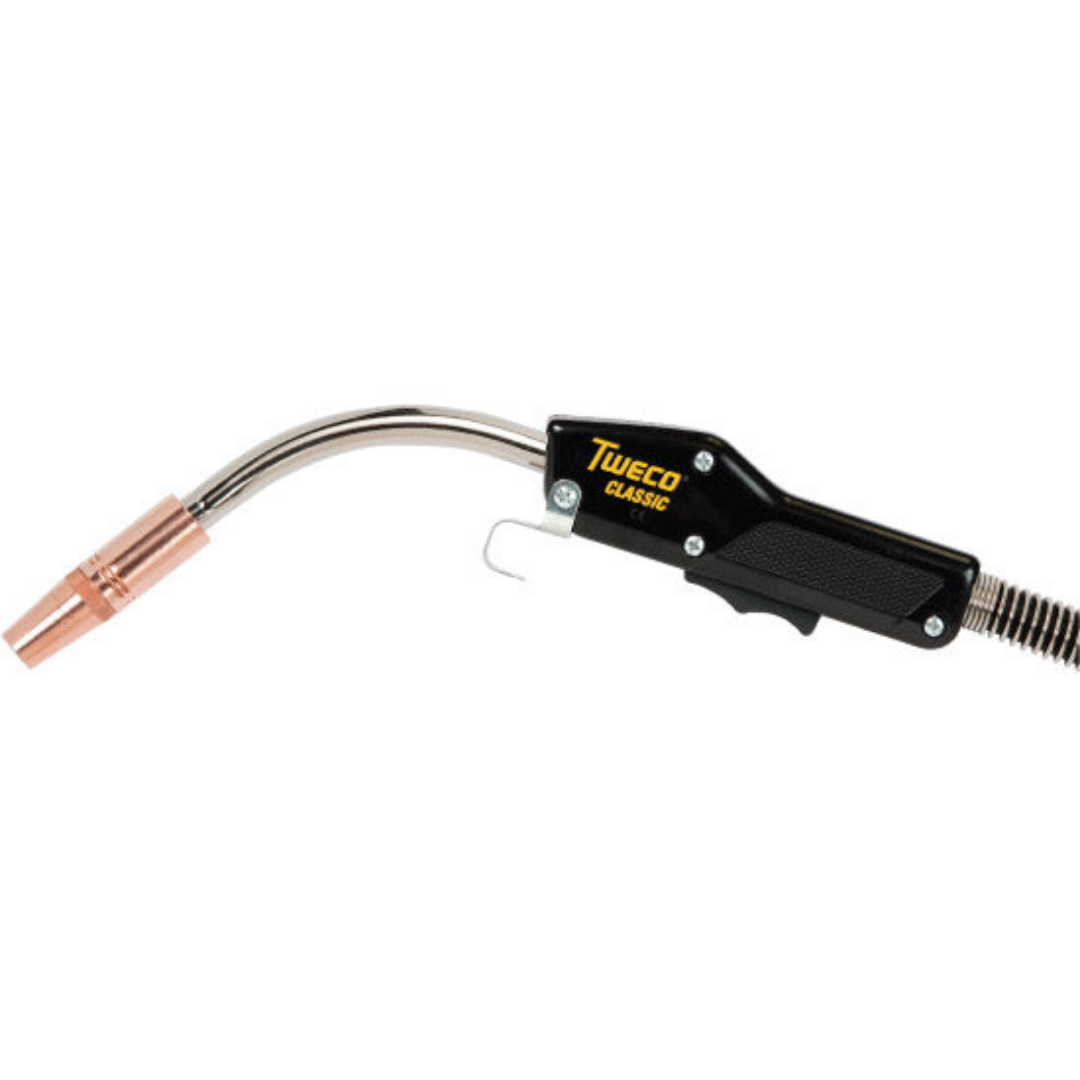

Tweco Classic No. 5 MIG Gun
500 AMP 60% Duty cycle MIG gun available with Tweco Miller Lincoln Euro-Kwik Style rear connectors. Suitable for medium heavy duty fabrication
- Wide selection of front end consumables available to fit the needs of the application
- Industry standard for 40+ years, oval shaped handle reduces grip required to manipulate MIG gun position
- Balanced to pivot at the center of the handle for ease of use in different welding positions, and thereby reduces operator fatigue
- Gun hanger located at the bottom for ease of resting gun when not in use
- Heavy-duty design for industrial application environments using special plastic composition for high impact crush-resistant handle
- Steel spring strain relief provides support to the Cablehoz® coming out the rear of the handle to minimize wire feed issues
- Mechanical connection of conductor tube and cablehoz within the handle providing excellent current path to the end of the contact tip
- Two (2) ball-point screws are used to secure the Cablehoz® and conductor tube in place
- Trigger contains silver plated contacts with a self cleaning action every time the trigger is engaged & disengaged
- Industry Standard
- Metal jacket conductor tube
- Enhanced direct plug capabilities
-
- 15 ft. – 1 16 Liner – 1050-1113
- 25 ft. – 1 16 Liner – 1050-1115
- 15 ft. – 1 16 Liner – 1050-1173
- 15 ft. – 3 32 Liner – 1050-1642
-
*Non-stock item – contact us for lead time at [email protected]
Cable Length 15 ft., 15 ft. – 3/32" wire, 25 ft.
Rear Connector Type Tweco, Miller, Lincoln
Lincoln Connector
Miller Connector:
Tweco Classic No.5 Guns Datasheet
Options
Tweco 4-Pin Connector:
- 15 ft. – 1 16 Liner – 1050-1113
