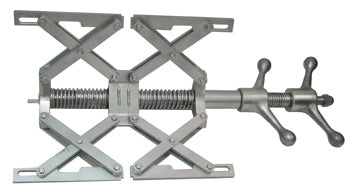

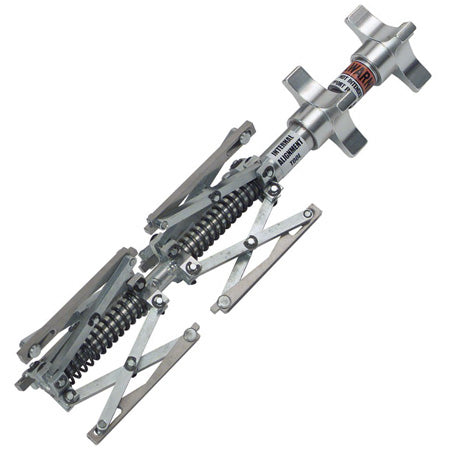

Sumner Internal Fit-Up Clamp



The Sumner Internal Fit-Up Clamp is an internal pipe alignment tool that can be used on all standard weld neck and slip-on flanges.

• Independent adjustment allows for alignment even if internal dimensions differ
• One-piece construction the Internal Fit-Up
• Internal Fit-Up Clamp is built for durability and reliability
• Simple and quick one-man operation allows for one jaw to clamp the pipe inside diameter and the second jaw to clamp on the flange
• Stainless Steel contact points
• NOTE: The Internal Fit-Up Clamp is an alignment tool. A separate lifting device to support the flange weight is recommended.
• Available in three sizes

• How the Internal Fit-Up Clamp works:

  1. Tighten jaws to clamp pipe I.D.
  3. Mount flange on second set of pipe jaws, adjust for gap and tighten jaws for final fit-up.

  4. Options:

     Range		Item No.
     2 – 4 (50 – 100 mm)		784100
     4 – 8 (100 – 200 mm)		784102
     8 – 12 (200 – 300 mm)		784103


     Download Tech Sheet

     Options	2 – 4" – 784100, 4 – 8" – 784102, 8 – 12" – 784103
