SSC ESAB® AIRCO® Heliwelder 251 AC DC Style (12 Pin) Pedal – Model C870-1225 Supply

SSC Controls Model C870-1225 for ESAB® AIRCO® Heliwelder 251 AC DC Machines

The C800 foot controls are dependable workhorses with high-performance characteristics. The C870-1225 is designed for Heliwelder 151 AC DC Machines with 12-Pin Plug

Designed for the pro, these rugged and dependable controls provide a tremendous value. The patented design improves low-current welding while providing precision arc control.

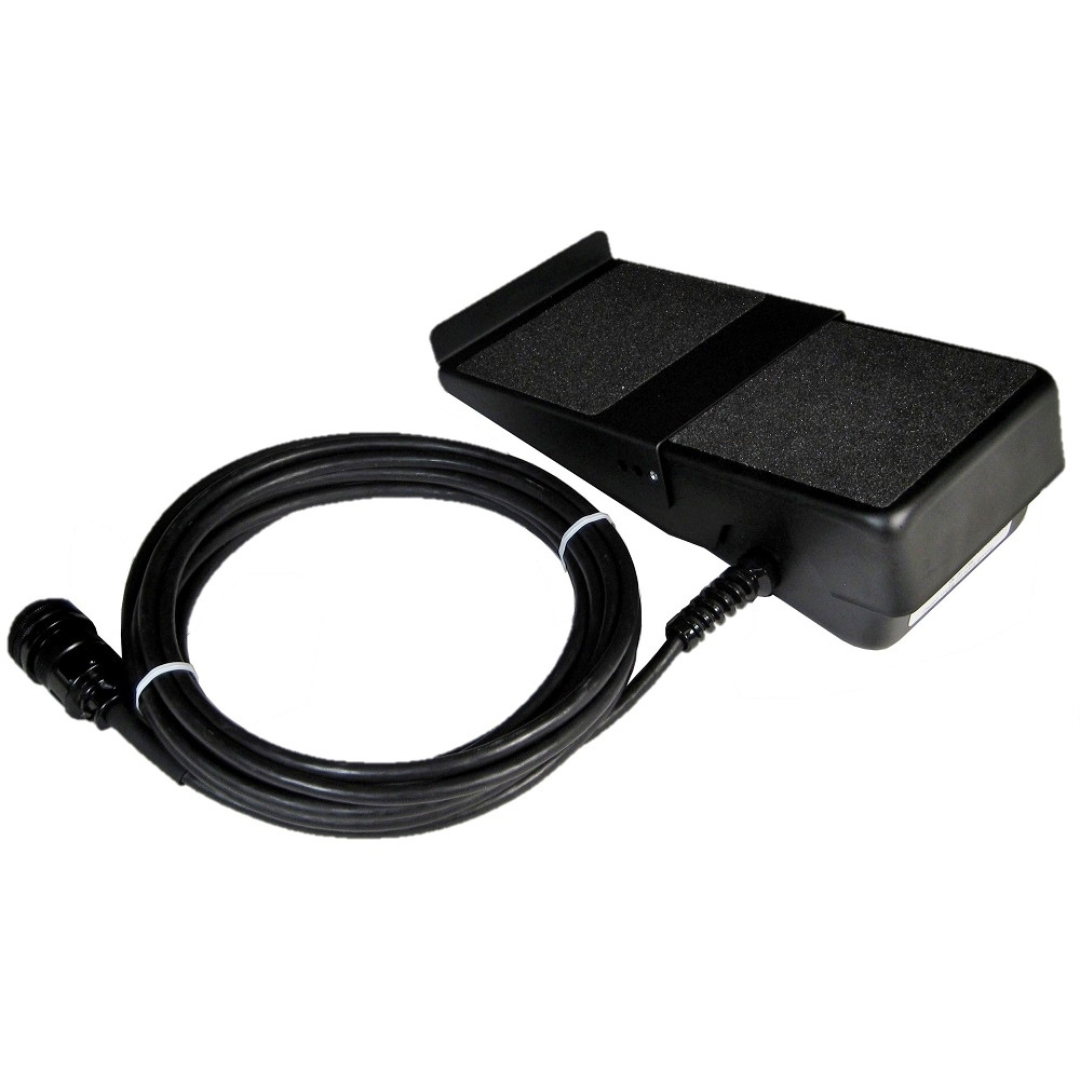

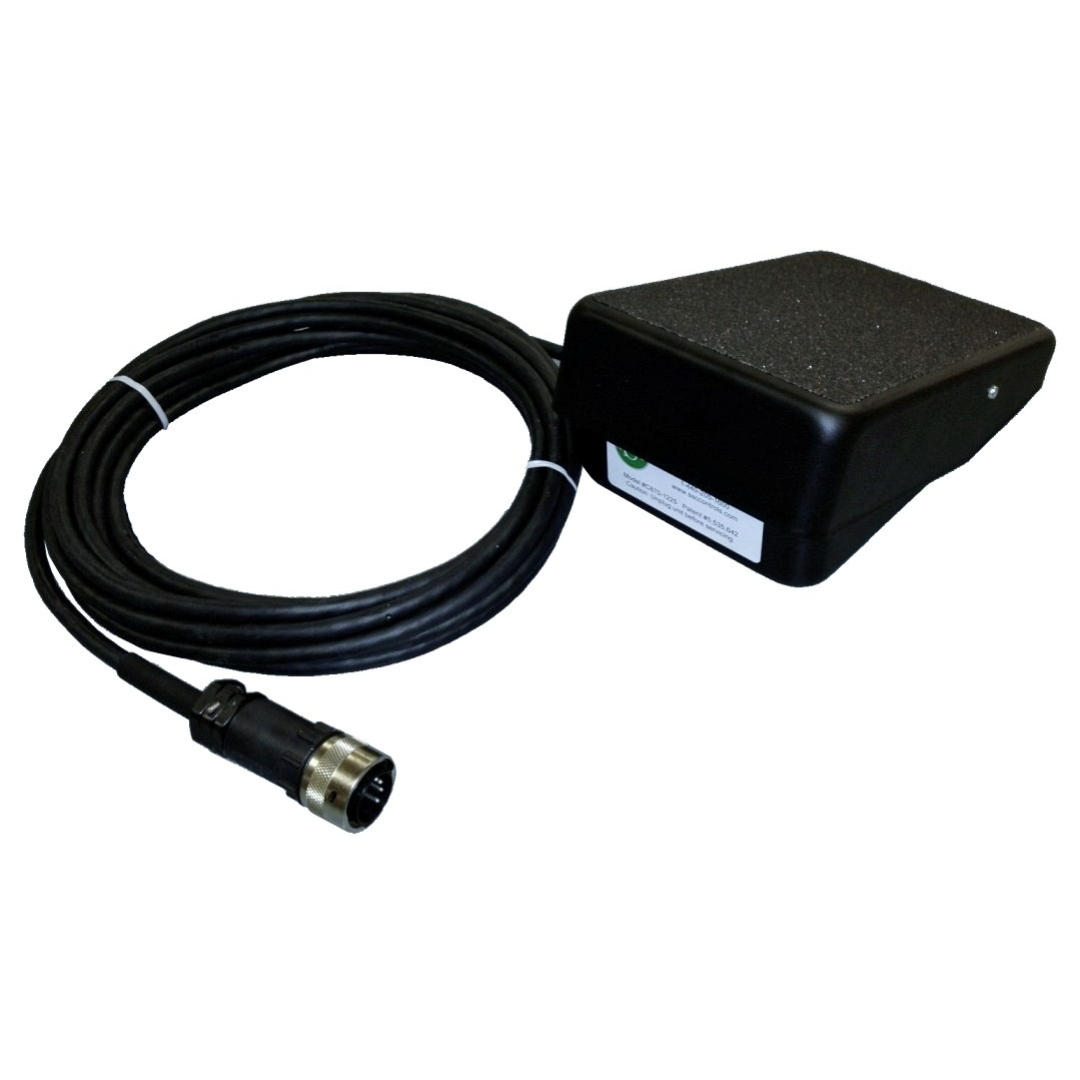

The design features a durable 16-gauge steel case, oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the postflow cycle. Includes a 25-foot cable and 12-pin plug.

Optional Heel Rest Attachment Available. Click Here.

• 25,000-ohm potentiometer
• Uses pins D, E, F, G, and H
• Patented design is tested to one million lifecycles.
• Designed and manufactured under a quality system certified to ISO 9001 requirements.
• Made in USA
• Part Number: C870-1225

• Model:		C870-1225
  Cable Length:		25 ft. (7.6 m)

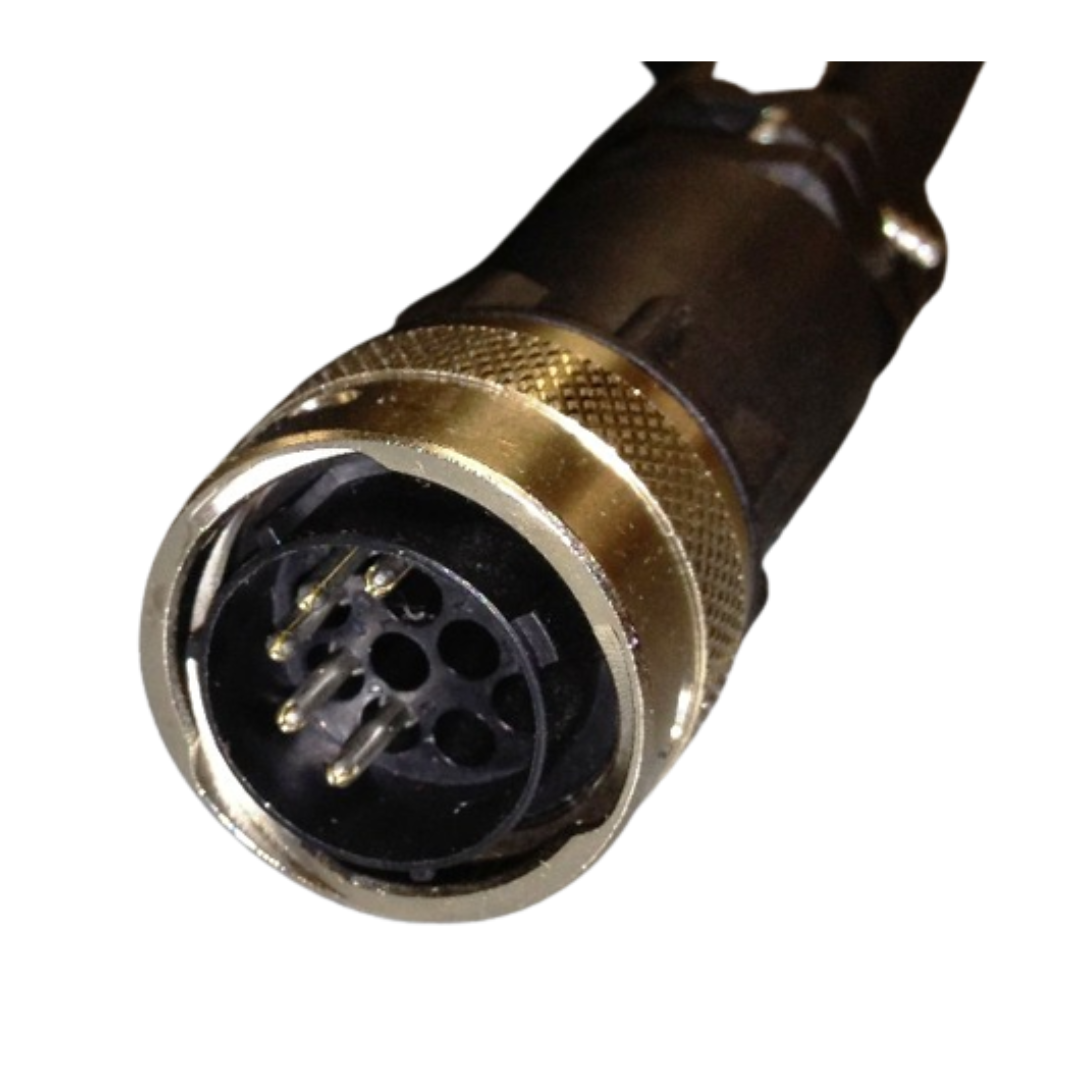

  Connection:		12-Pin Male Souriau
  Dimensions, L x W x H, in. (cm.):		10 x 10 x 4 (25.4cm x 25.4cm x 10.2cm)
  Weight, pounds (kg.):		5.5 lb (2.5 kg)
  Finish:		Black, powder paint

  Model C870-1225 Direct Connects to:

  • Airco Heliwelder 251 AC DC

  • Non Stock Item – Please inquire for lead time [email protected]
