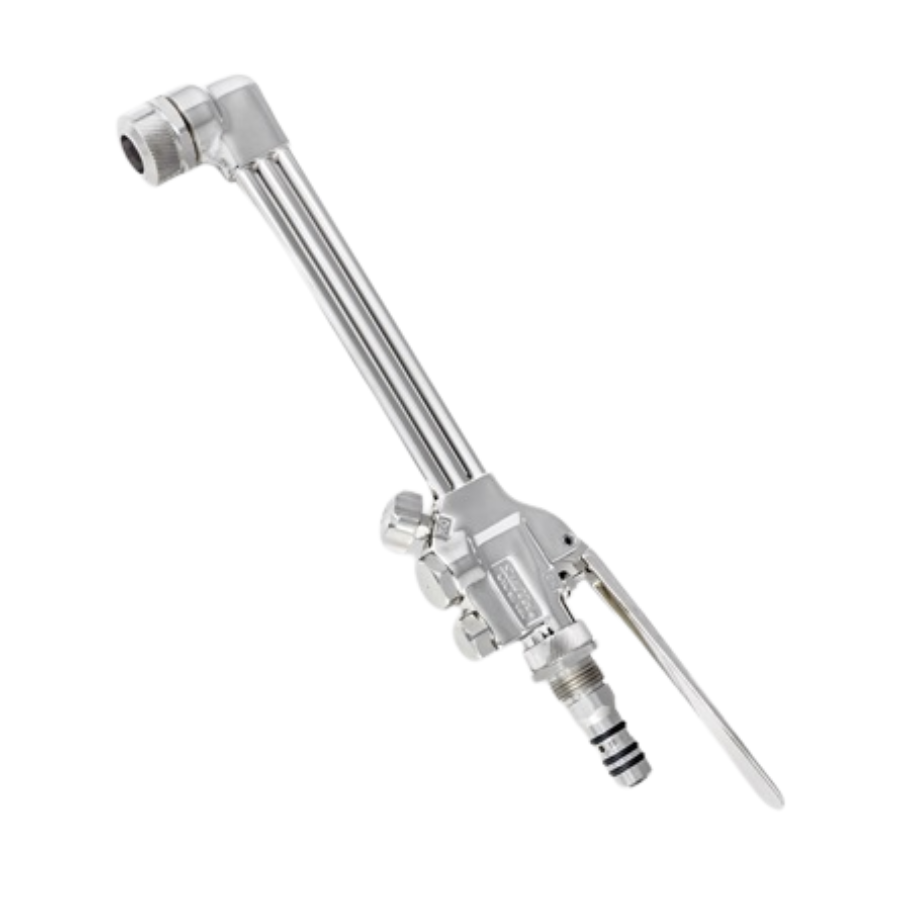

Smith SC209 Heavy Duty Cutting Attachment, 90 degree

Cuts up to 8-inch (203 mm) thick steel.

Solid silver-brazed construction. Features o-ring seating and easy-to-change slip-in Graf-Tite® cutting tips with cost-saving soft seats. Use with any industrial fuel gases — acetylene, propane, natural gas, propylene, hydrogen, and many others.

Works with all SC Series cutting tips.

• Silver-Brazed Nickel-Plated Torch Joints – Provides strength, leak resistance and heat deflection.
• Slip-in Tip Design – No wrench is needed allowing for quick and easy tip changes. Learn More
• Three Tube Construction – Keeps gases separate in the cutting attachment until mixed at the tip for safety. Mixed gas stays farthest away from the operator.
• Triple O-Ring Seal – For easy 360-degree torch head rotation to reduce operator fatigue.
• Flo-Trol™ Valve – Eliminates seat burn out due to reverse flow of mixed gases.
• Center Pre-Heat Valve – Usage for both left and right-handed operators.
• Part No.: SC209

• For use with: SC Cutting Tips
