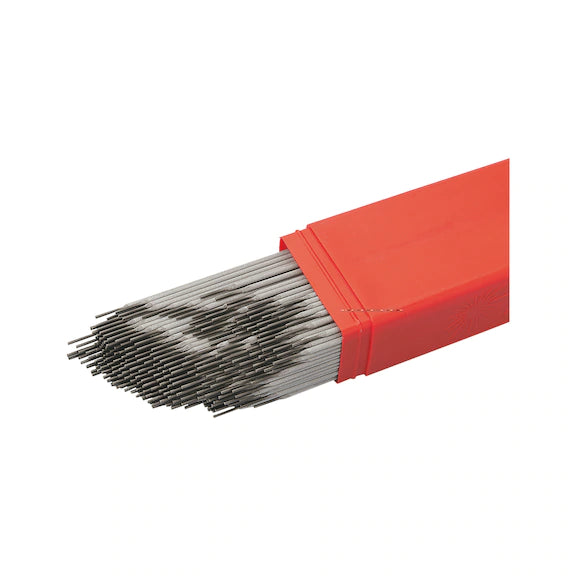

Rutile-basic coated electrode with a coating that has very with very low moisture pick-up. Smooth fusion, without spatters, self releasing slag, exceptional bead appearance and restriking.

E316L-17 electrodes are designed to weld in the flat and horizontal position, with a self peeling slag.

For welding and cladding on austenitic Cr-Ni-Mo stainless steels and clad plates. For service temperatures from -120°C up to +400°C in the chemical and petrochemical industries, refineries, food industry and in shipbuilding to weld pipes, tanks, heat exchangers, pulp and paper

Download Tech Sheet

• Sold in 1 Kg or 4.5 kg plastic tube.

• What is the difference between Stainless Steel (-16) vs (-17) Stick Welding Electrodes?

  (-16)

  Rutile specified

  At least 50% rutile flux composition with some basic flux materials

  All-position

  Convex weld bead appearance

  Application:  All-around stainless stick welding

  (-17)

  Rutile specified

  Al teast 50% rutile flux composition with some basic, acid, and or Iron-oxide materials

  All-position with less control compared to (-16)

  Flat to concave weld bead appearance

  Application:  Fillet welds requiring near-flat transition at the weld toe

  Options	3/32" (2.5 mm), 1/8" – (3.2 mm)
  Quantity	1 Kg, 4.5 Kg
