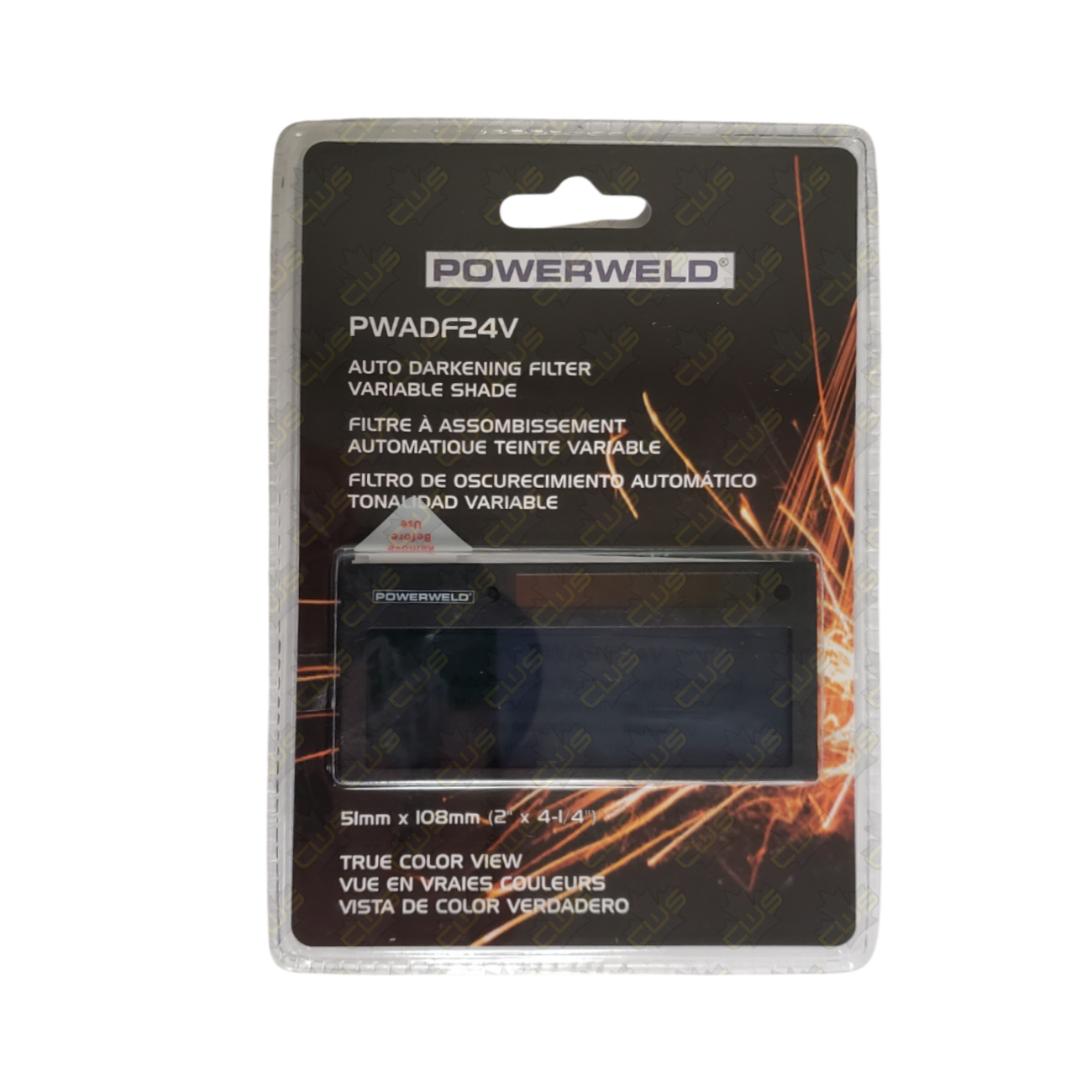

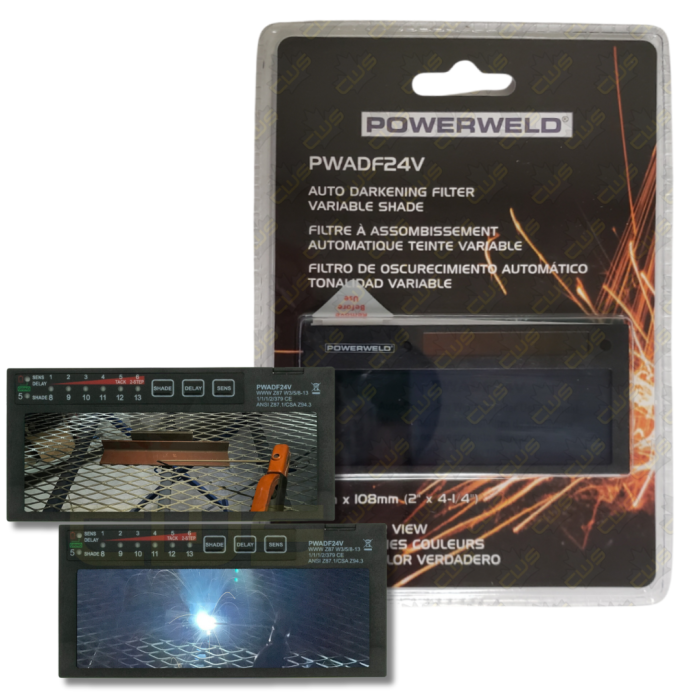

Powerweld Variable Shade 2×4 Drop in Welding Lens

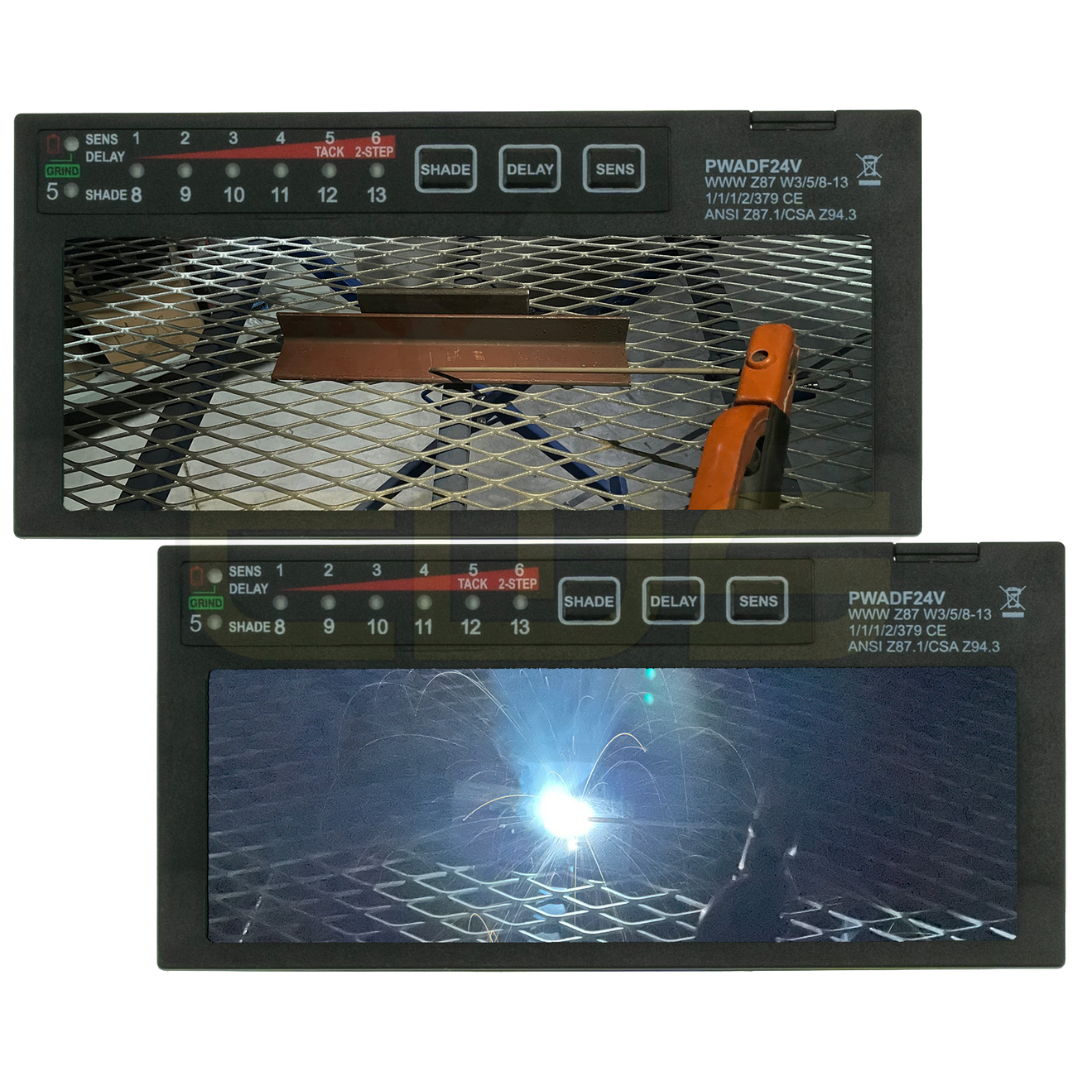

Don’t settle for ordinary—control your view with the Powerweld PWADF24V variable shade drop-in cartridge. Convert your standard 2 x 4-1 4 welding helmet into a full feature auto-darkening helmet. True colour clear view lens technology presents your work in a whole new light, providing optimal clarity and vision when welding.

Plus, you can customize your view with variable shades from 5-13, adjustable sensitivity, and additional options with weld grind mode and multiple delay settings including tack and 2-step modes.

Step up your welding game and see your work in a whole new light with the PWADF24V.

• TRUE COLOUR Clear view lens technology

• VARIABLE SHADE ADF with grind mode

• LIGHTWEIGHT & ULTRA THIN cartridge – Fits into most 2×4 Helmets with NO Modification!

• ULTRA THIN inside cover lenses available – Makes pressing buttons on the cartridge easy!

• Product Name Part Number		PWADF24V
  Viewing Area		3.78 x 1.26 (96 mm x 32 mm)
  Dimensions		2 x 4-1 4 (50.8 mm x 108 mm x 5 mm)
  Weight		1.23 oz (35 g)
  Optical Class		1 1 1 2
  Light State		Shade 3
  Dark State		Shade 5, Variable 8-13
  Arc Sensors		2
  Battery		2x CR1025 Coin Cell
  TIG Rating		>5 Amps
  Operating Temperature		23°F to 131°F (-5°C to +55°C)
  Storage Temperature		-4°F to 158°F (-20°C to +70°C)
  Certifications		ANSI Z87.1 CSA Z94.3
  Warranty		1 Year



  This lens is the perfect companion to your Outlaw Leather or Fibre Metal Pipeliner Welding Hood
