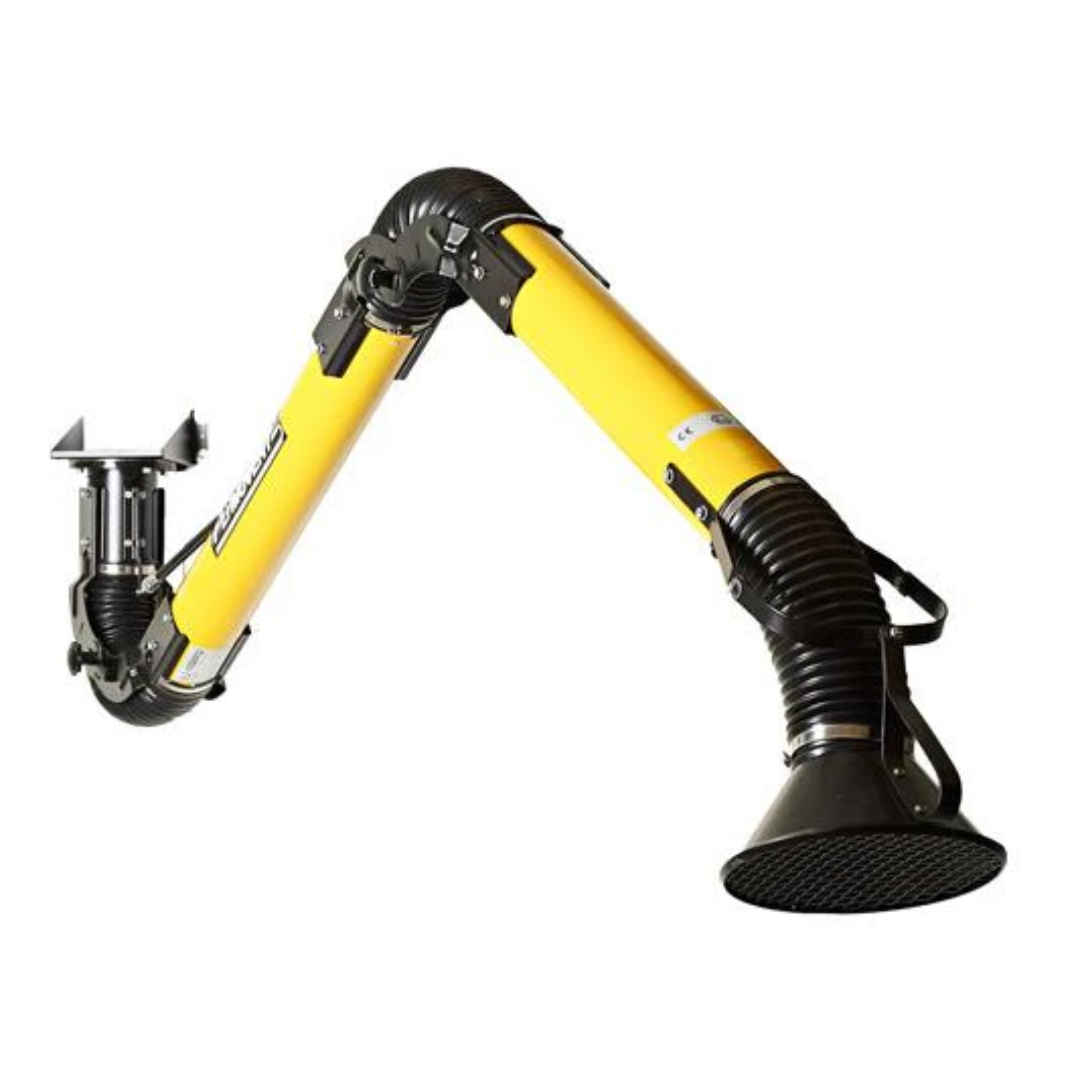

Plymovent MINIMAN-100 Fume Extraction Arm



The MiniMan-100 is a compact flexible arm, which is ideal for all
types of smaller dust and fume applications.

The arm is fitted with exterior friction joints. The inner tubes are kept in place by a gas spring (standing arm) or a balancing strap (hanging arm). This design ensures smooth movement of the arm.

The MiniMan-100 arm is available in different versions, including ATEX1. The specific TopGrade arms have a distinctive colour and are meant for use in clean working environments, such as laboratories.

The standard MiniMan-100 arm is intended to be used for the following applications:

• Soldering fumes
• Airborne dust
• Fumes from solvents
• TIG welding
• MIG-MAG GMAW welding

• Features

  • Clear-thru design allows maximum air velocity, low pressure drop, low noise level and low energy cost
  • Reach above mounting height offers maximum reach
  • Supplied fully assembled saves installation time
  • Exterior joints allows for ease of adjustment, smooth operation and ease of service
  • 360 degree rotation
  • Available in white and stainless steel to meet the demanding requirements of the pharmaceutical, chemical and food processing industry
  • Available in an ATEX version

  • Download Data Sheet

    Options:

    • MiniMan 100-1.5H – Part number: 101109
    • MiniMan 100-2.1H – Part number: 101110

    • Scope of Delivery

      • Flexible extraction arm with exterior friction joints.
      • Incl. round hood and mounting bracket.
      • The arm is 360° rotatable. Hanging mounting.

      • Please allow 2 week lead time to ship.
