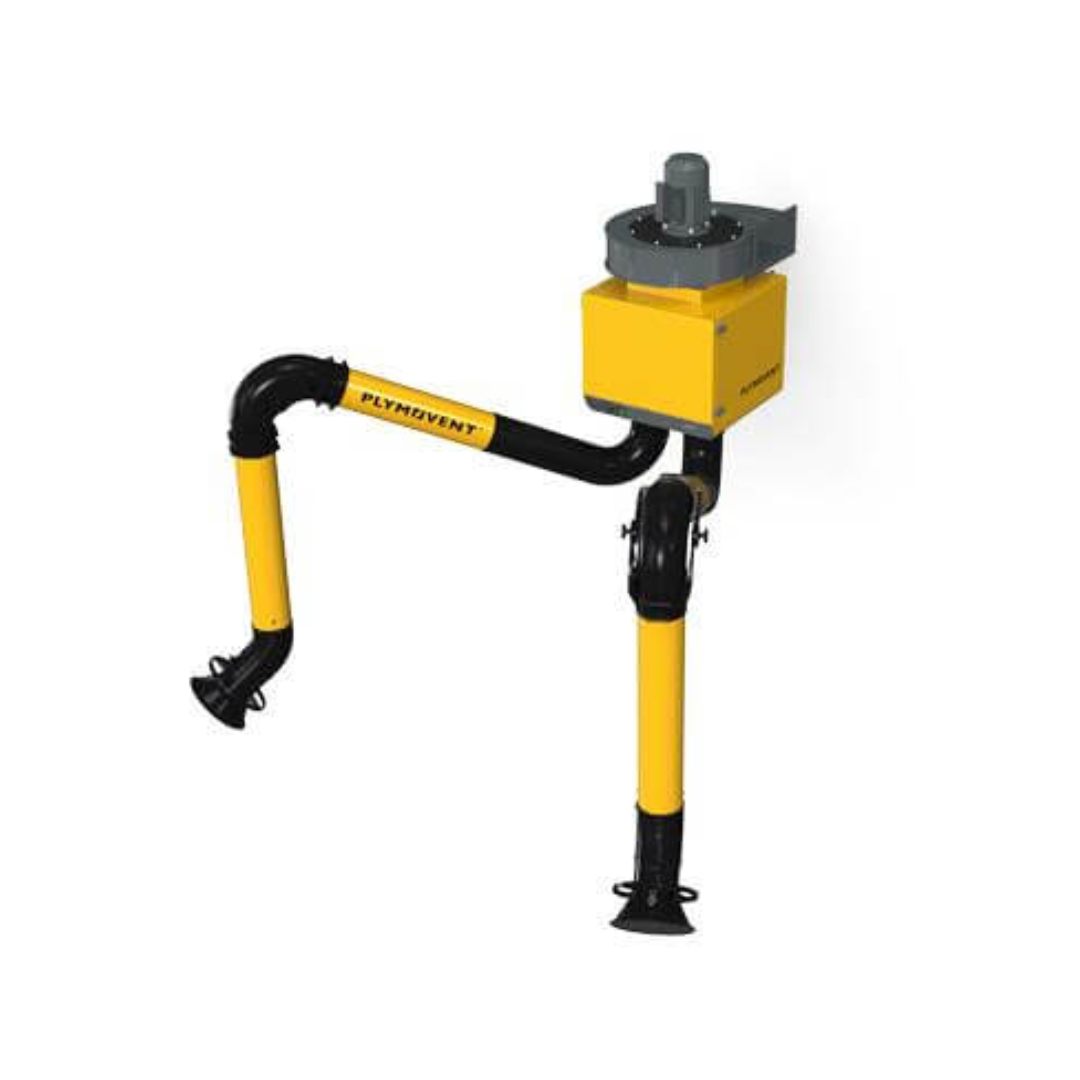

Plymovent DualGo Plus – Dual Hose Fume Extraction

Wall Mounted Welding Fume Extractor



The DualGo Plus is a stationary welding fume extractor with integrated fan and two metal tube arms. It contains a disposable filter package.

The DualGo Plus is designed for occasional to regular welding activities (approx. 1 coil of solid wire or 7.5 kg 16.5 lbs of electrodes per workplace per month) and TIG welding.



• Light Duty Stationary Welding Fume Extractor
• Disposable Filters
• Input Voltage: 575V 3Ph
• Weight excluding arms: 280lb
• Includes 2 Extraction arms with intergrated 575 Volt Fan unit
• Filter 280 Square Feet of Filter Media (HEPA E12)
• CSA Approved

• The DualGoplus is intended to be used for the following applications:

  • MIG-MAG GMAW welding
  • TIG welding
  • FCAW welding
  • Stick MMA welding
  • Grinding, polishing, finishing

  • What s Included

    • 1x Stationary filter unit, incl. fan and wall bracket
    • 2x KUA-160 Extraction arm (pre-assembled)
    • 2x Rotating flange, 2x Arm swivel ring, incl. rubber collar
    • 2x Extraction hood, 2x Hood collar with safety mesh
    • Mounting material
    • Switch box

    • Replacement Filters:

      • Pre Filter 111637
      • Main filter 111636

      • Options:

        • 7 (2m) Arm
        • 10 (3m) Arm
        • 14 (4m) Arm

        • Product Data Sheet

          Freight cost of $120 automatically added at checkout.  Shipped direct from Plymovent – please allow 5-10 days processing time. Priority shipping not available for this item.  Please contact our Support team if you have any questions.
