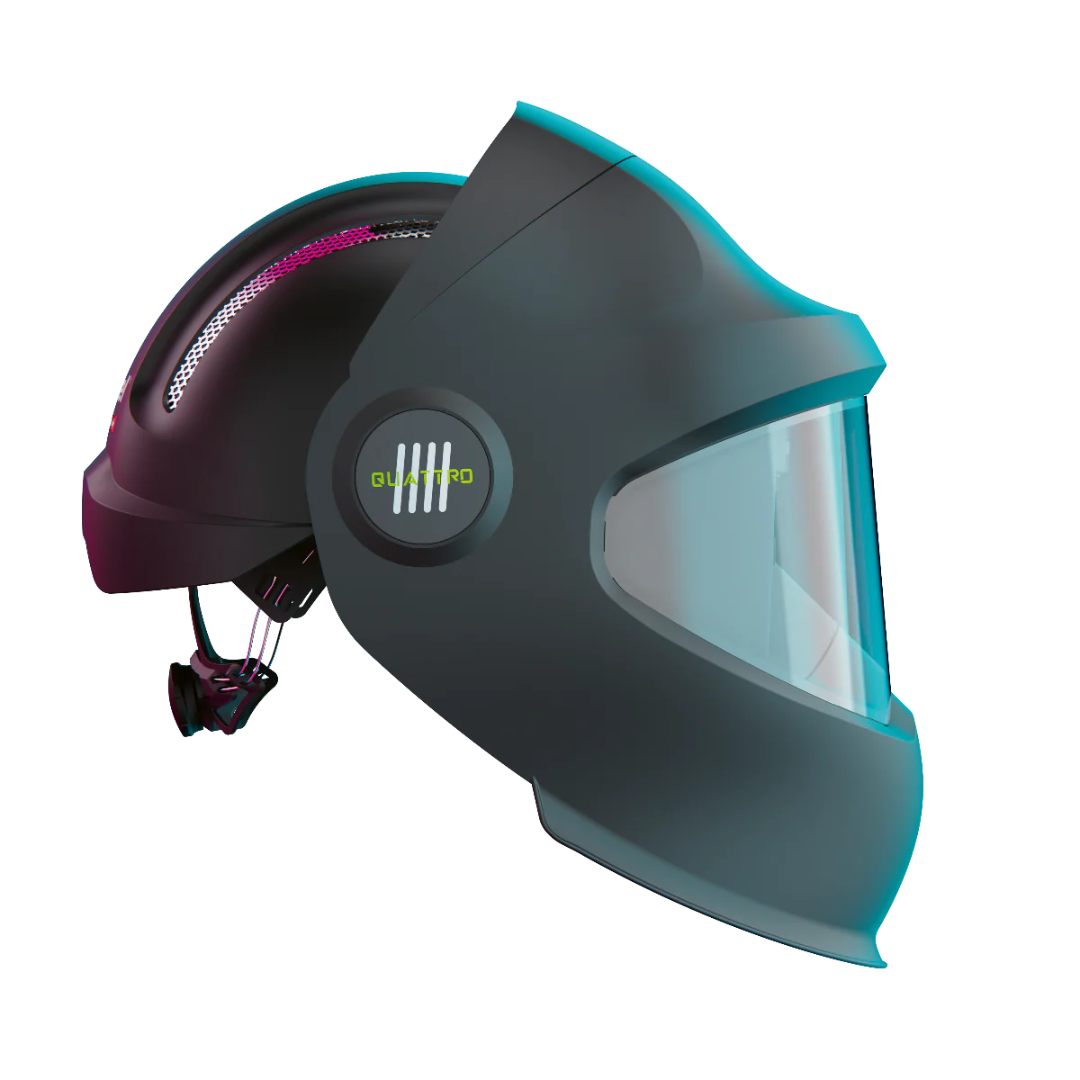

Optrel Helix Quattro Welding Helmet 1050.100
The new slide-up welding helmet with panoramic field of vision and Crystal Lens Technology
With the Helix Quattro, Optrel offers a welding helmet for working under the toughest conditions. A slide-up helmet with an internal anti-glare unit that has all the technical features of an Optrel helmet:
- Panoramic XXL field of view
- EN379 classification 1 1 1 1
- Shade levels 4-14
- ShadeTronic®
- Fadetronic
- Rechargeable battery unit with charging via the welding arc
- 5-point multi-detection sensors
-
- Integrated, removable hard hat included
- Detection of the arc brightness and fully automated shade level adjustment from 4 to 13
- Sensitivity Control prevents ADF from responding too soon or not at all to their arc flash
- Opening Delay: Adjust the time it takes to switch from dark to light
- Curved helmet optimized for overhead welding
- Meets CSA standard Z94.3
- Part No. 1050.100
- Welding helmet
- Optrel IsoFit® headgear
- Hard Hat
- Storage Bag
- Micro USB Charging Cable
- Front Cover Lens
- Warranty Card
-
- From the date of purchase: 2 years for manufacturing and material defects, 6 months for the battery
- 1 year warranty extension (except batteries) for online product registration within the first 6 months
Title Default Title
Related products
Warranty
- From the date of purchase: 2 years for manufacturing and material defects, 6 months for the battery
Shade levels Light state: shade level 3.0 4.0
Manual: Shade levels 8-12
ShadeTronic : Automatic Shades 4-13 with individual calibration option ± 2Energy supply Solar cells with Li-Polymer battery pack, chargeable via Micro-USB Battery life range 300 to 500 charging cycles Sensors Five sensors Sensitivity continuously, new with “Super High” sensitivity Switching time 0.090 ms at 20°C
0.070 ms at 55°C
dark to light:
0.1 s to 2.0 s (with FadeTronic)Field of vision 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF Classification EN379 1 1 1 1 Shape stability Mask: up to 220°C
Front cover lens: up to 137°CEye protection UV IR protection: maximum protection at all shade levels Operating temperature -10°C to + 55°C 14°F to 131°F Storage temperature -20°C to + 70°C -4°F to 158°F Weight 620 grams Warranty 2 Years, 3 Years with registration What s Included
Review Cart
Optrel Helix Quattro Welding Helmet Hot on Sale$255.90Select optionsOptrel Helix Quattro Welding Helmet Hot on Sale$255.90Select options

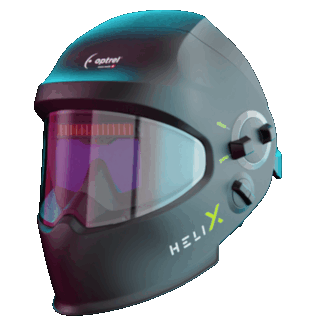

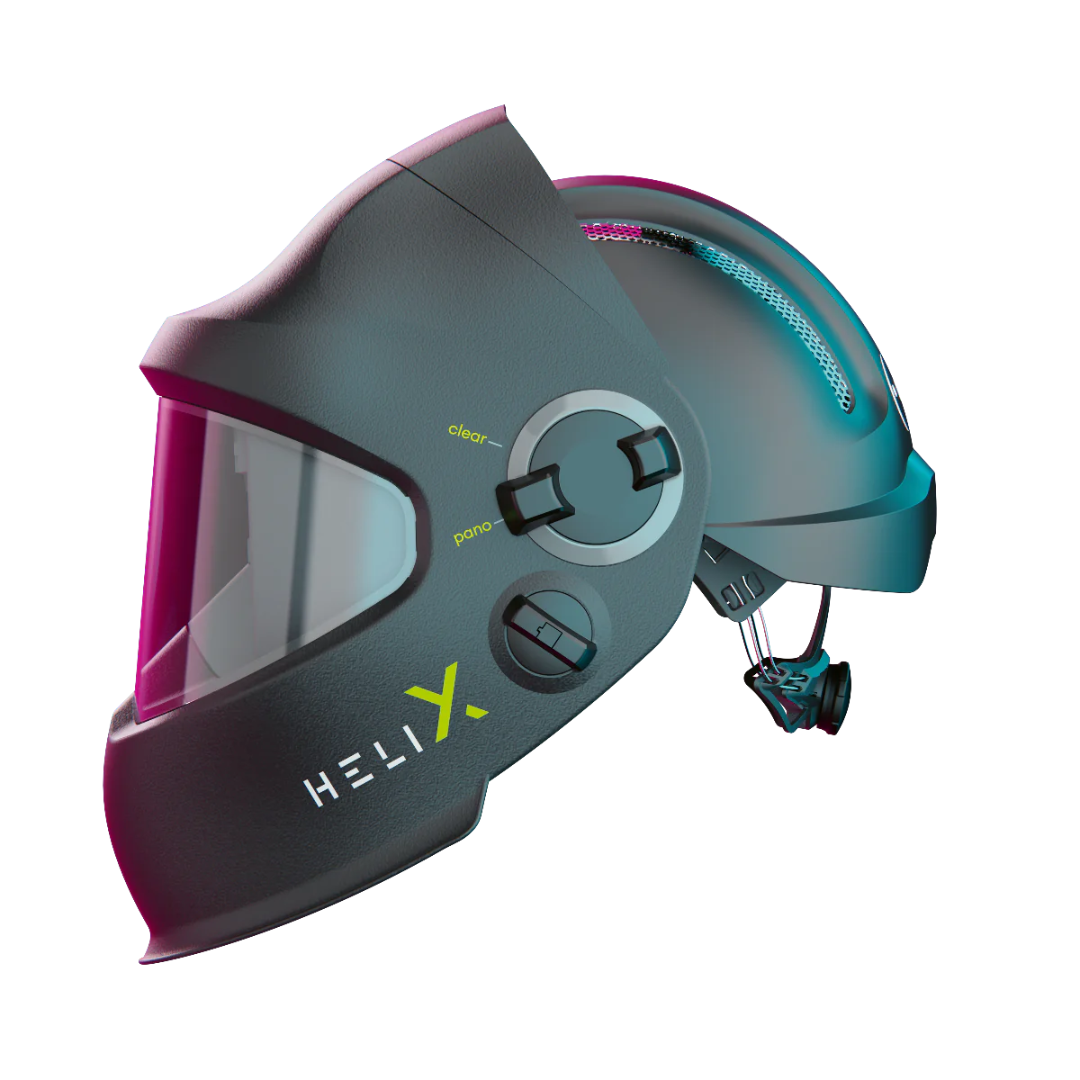

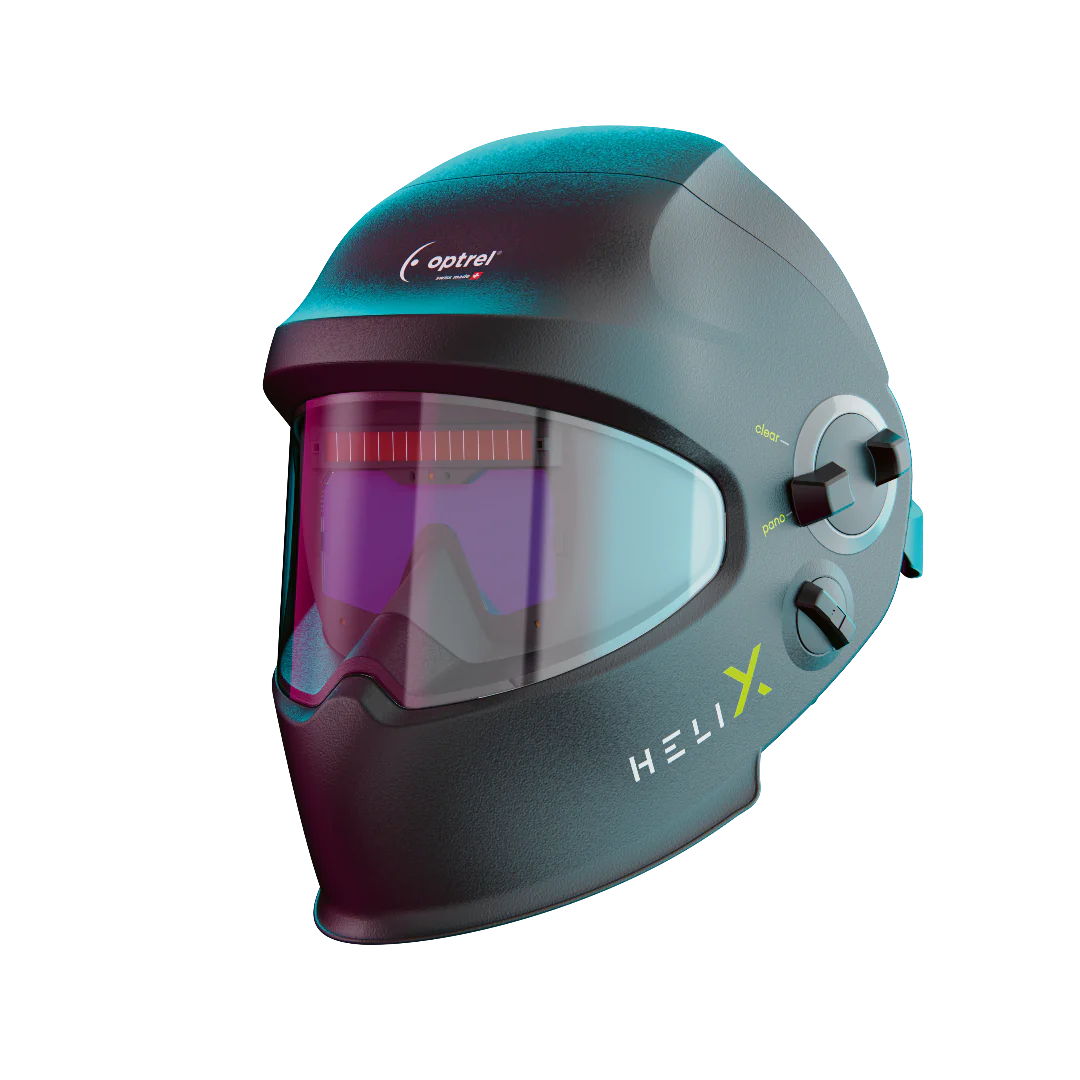

The Helix CLT is ideal for you if you need the practical slide-up function to switch between different tasks and also want a large field of vision with an extremely bright and true-color view when welding.
The Optrel Helix CLT is available with an integrated IsoFit® headgear
NEW Position Locker
The new two-position locking function for a safely open or closed helmet. Now standard with all Optrel Panoramaxx series welding helmets and with the IsoFit® headgear.
Features and Technical Specs
