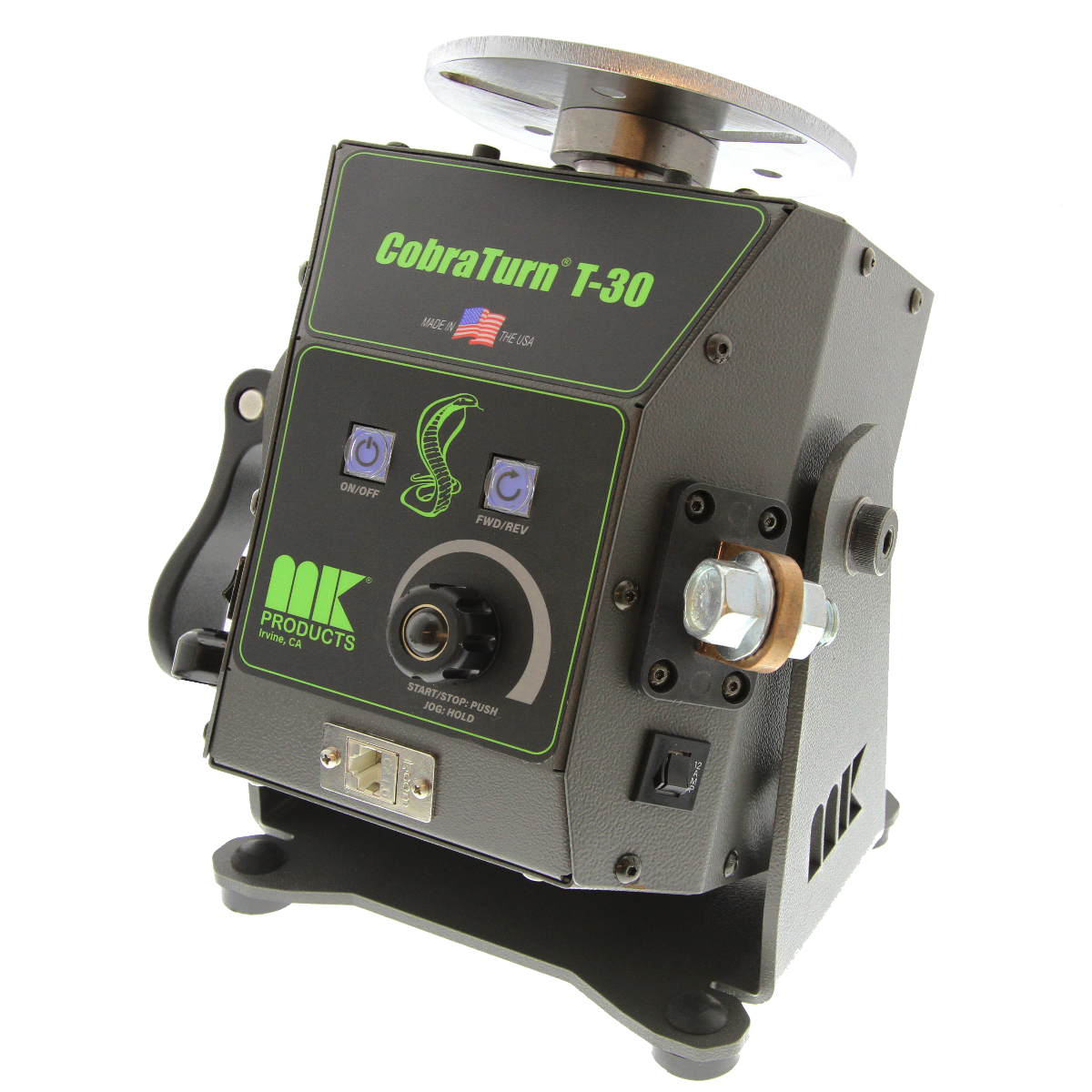

MK Products CobraTurn®  T-30 Welding Positioner



The CobraTurn® T-30 turntable is ideal for lightweight applications. The T-30 is well suited for welding small, intricate assemblies, tube flanges and small aircraft-type parts as well as rotating lightweight non-welding items.

The compact T-30 turntable has a maximum center load capacity of 30 lbs. and maximum welding ground capacity of 400 amps.

Pair CobraTurn T-30 with the MK Products 3-Jaw Self Centering Chuck for a quick and easy setup.

Key Features:

• Compact high performance turntable
• Weld ground fault protection
• Adjustable LED illuminated control panel
• Linear single speed control knob with center pushbutton start, stop and jog functions
• Cam lever to lock table angle
• High frequency interference protection
• Easily bolts to any flat surface

• Pair the positioner with the ReadyRest™ Articulated Arm Rest and or Adjustable Wrist Rest to optimize your semi-automated welding station for comfort, speed, and quality.

  Power Input		110V 50 60Hz
  Capacity (Horizontal)		30 lbs. (13.6 kg)
  Capacity (Vertical)		15 lbs. (6.8 kg)
  Table Diameter		5 (127 mm)
  Rotation Speed		0.4 – 6 rpm
  Grounding		400 Amp (60%)
  Tilt Range		0 – 90°
  Weight		14 lbs. (6.4 kg)



  CobraTurn T-30 Spec Sheet
