Millermatic® 355 W XR-A Aluma-Pro 25 208 240 460 575V, EZ-Latch – 951927

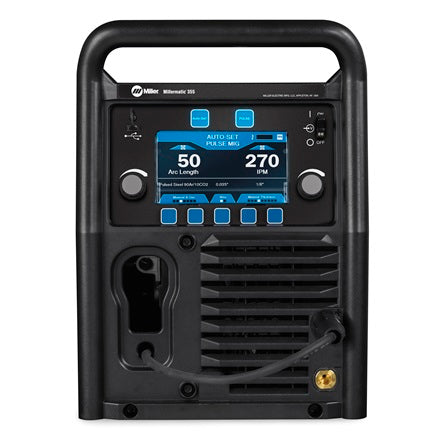

Easy to use machine to increase efficiency and productivity for manufacturing and fabrication users. 7 Color LCD screen featuring Auto-Set™ Elite, Electronic Parameter chart, and Trigger Program Select.

This all-in-one welder connects to any North American input power. Welds up to 1 2” aluminum, stainless and mild steel.

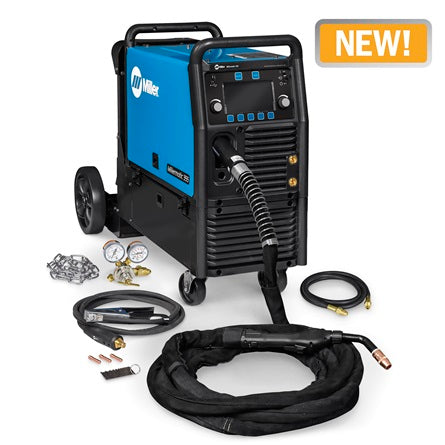

What s Included

• Power source with 9 ft. (2.7 m) industrial power cord
• 25 ft. (7.6 m) XR-Aluma-Pro air-cooled push-pull MIG gun with Miller FasTip consumables for .035 .047 in. (0.9 1.2 mm) aluminum wire
• 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR CO2 mix
• .035 .047 in. (0.9-1.2mm) reversible U-Grooved drive rolls
• Extra .035 and .045 in. (0.9 and 1.2 mm) contact tips
• Material Thickness Gauge
• EZ-Latch™ Running Gear
• Chain to secure gas cylinder

• Product Name Part Number		Miller Millermatic 355 951926
  Welding Processes		MIG (GMAW), Flux Core (FCAW)
  Input Voltage		208 240 460 575 V, 50 60 Hz (1 3 Phase)
  Input Current		32.3 28.8 18.2 15.4 A
  Welding Output Amps (230V)		Single Phase: 20-350 A 3-Phase: 20-400 A
  Output Current		DC – CV
  Aluminum TIG		❌
  Spool Gun Ready		✔️ –  Spoolmatic or XR Alumapro
  Dimensions		Machine only: H: 19.25 in. (489 mm) W: 13.75 in. (349 mm) D: 26.25 in. (667 mm) Machine with running gear: H: 32 in. (813 mm) W: 13.75 in. (349 mm) D: 45 in. (1,143 mm)
  Weight		Machine only: 99 lb. (45 kg) Machine with running gear: 163 lb. (74 kg)
  Warranty		Machine: 3-Year Parts & Labour, Torch: 90 Days Parts



  Non Stock Item – Please allow 2 week lead time



  Full Product Data Sheet | MillerMatic 355 User Manual | MDX Torch Consumables
