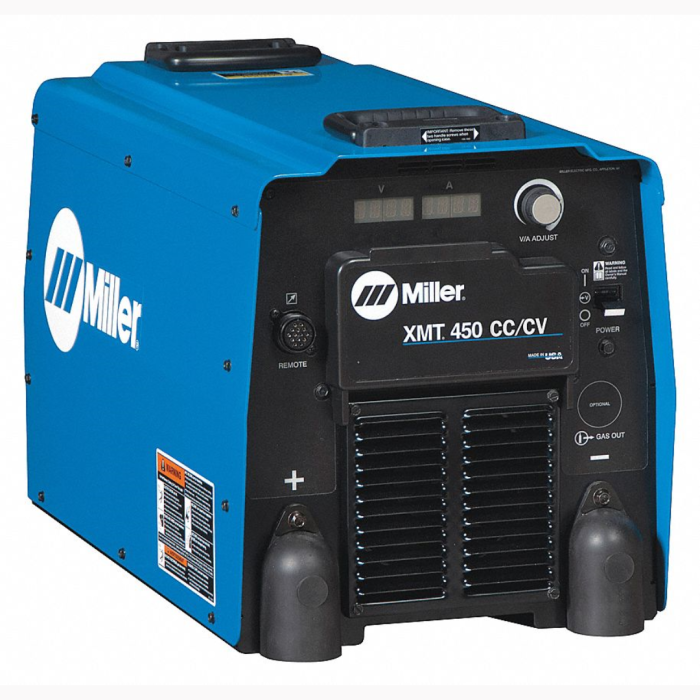

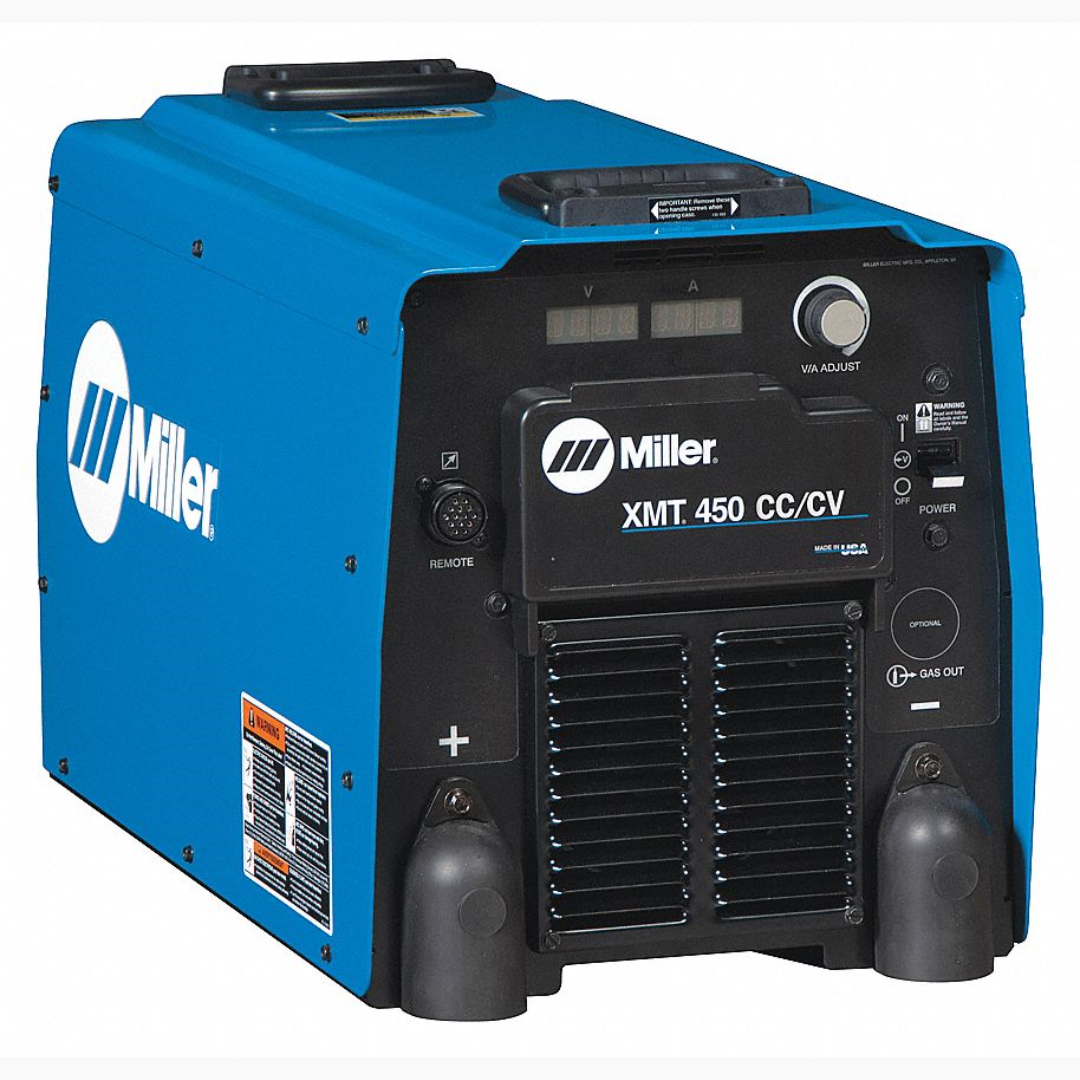

Miller XMT® 450 CC CV – 3 Phase 575V – 907482



Portability and excellent arc performance make the XMT family the most popular in the industry. ArcReach provides remote control of the power source without a cord – saving time and money.

Features:

• ArcReach technology uses the existing weld cable to communicate welding control information between the feeder or remote and power source.
• More arc-on time and reduced exposure to workplace hazards for operators can be realized using ArcReach because less time is spent going back to the welding power supply to set process and arc voltage.
• Auto-Process Select™ – System automatically returns to XMT setting when ArcReach communication is terminated.
• Wind Tunnel Technology™ protects internal components, greatly improving reliability.
• Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through the machine.
• Welder friendly control panel
• Operators can precisely set arc voltage at the feeder and monitor the actual arc voltage and current delivered to the weld using the digital meters on the feeder.
• Remote Override of XMT
• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion.
• Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications.
• Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency.

• General Specifications:

  Title		XMT® 450 CC CV 575 V, ArcReach™
  Industries Interests		Construction and Fabrication Manufacturing Railcar Shipbuilding
  Weldable Metals		Aluminum Specialty Metals Stainless Steel Steel
  Input Voltage		575 V
  Rated Carbon Diameter		3 8 in (9.5 mm)
  Input Phase		3-Phase
  Input Hz		60 Hz
  Input Amperage		3 Phase – 575 V (24.6 A)
  Current Type		DC
  Max Open Circuit Voltage		75 VDC
  Weld Output		CC CV
  Warranty		3 Years

  Full Product Data Sheet
