Miller Trailblazer® 325 EFI w GFCI, Excel™ Power & Wireless Interface Control – 907798003

Trailblazer welder generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry

Powerful all-in-one tool is designed for repair and construction with unbeatable multiprocess weld quality, integrated rotary screw air compressor, and 13,000 watts of generator power for job site tools.

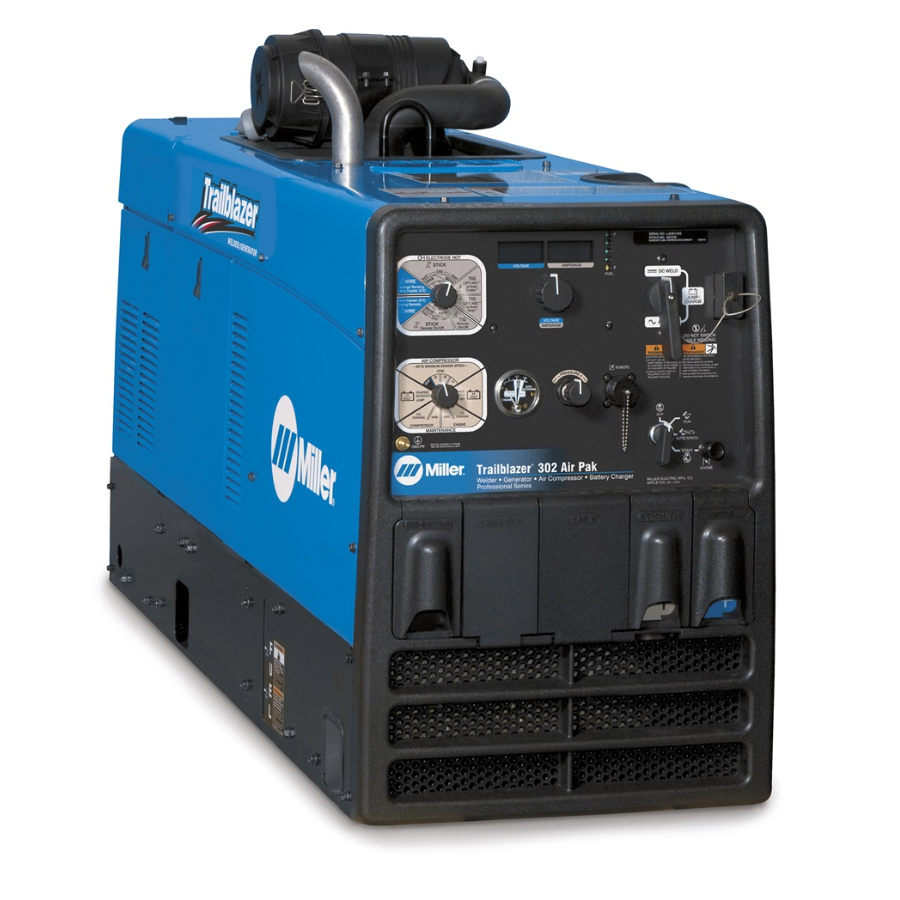

Title		Trailblazer® 302 Air Pak™ w cool sep, GFCI, Electric Fuel Pump
Industries Interests		Infrastructure Fabrication Pipe Fabrication Construction Maintenance and Repair – Field Operations
Engine Brand		Kohler CH750
Engine Idle Speed		2400 RPM
Fuel Tank Size		12 gal.
Fuel Type		Gasoline
Amperage		20 A – 300 A
Horsepower		23.5 hp
Rated Output		300 A at 28 V, 100% duty cycle
Single Phase Generator Continuous Power		11,000 W
Single Phase Generator Peak Power		13,000 W
Rated Carbon Diameter		3 16 in (4.8 mm)
Current Type		DC
Portability		Lift Eye (Standard) Running Gear Cart (Optional) Trailer (Optional)
Weld Output		CC CV
Dimensions		H: 28 in. (838 mm) H: 34.5 in. (876 mm) (to top of exhaust) W: 20 in. (508 mm) D: 59.625 in. (1,514 mm)
Net Weight		771 lbs
Warranty		3 Years

Non Stock Item, Not Eligible for free shipping. – Please contact support@canadaweldingsupply for accurate lead time and freight cost

Product Fact Sheet
