Miller Multimatic 220 AC DC



The Multimatic 220 AC DC is the only machine in its class that offers users the ability to switch welding gas, polarity and welding process automatically while recalling the last MIG or TIG settings.

Product Name		Multimatic 220 AC DC
Welding Processes		MIG (GMAW) Flux-cored (FCAW) AC DC TIG (GTAW) Pulsed TIG (GTAW-P) DC stick (SMAW)
Input Voltage		120-240V 1Ph
Welding Output Amps		MIG: 30–230 A AC DC TIG: 20–210 A DC stick: 30–200 A
Output Current		AC DC – CC CV
Aluminum TIG		✔️
Remote Control Connector		✔️ – Miller 14 Pin – See What s Included Section
Dimensions		H: 17.5 in. (445 mm) W: 11.25 in. (286 mm) D: 21.5 in. (546 mm)
Weight		56 lb
Warranty		3-Year Parts & Labour

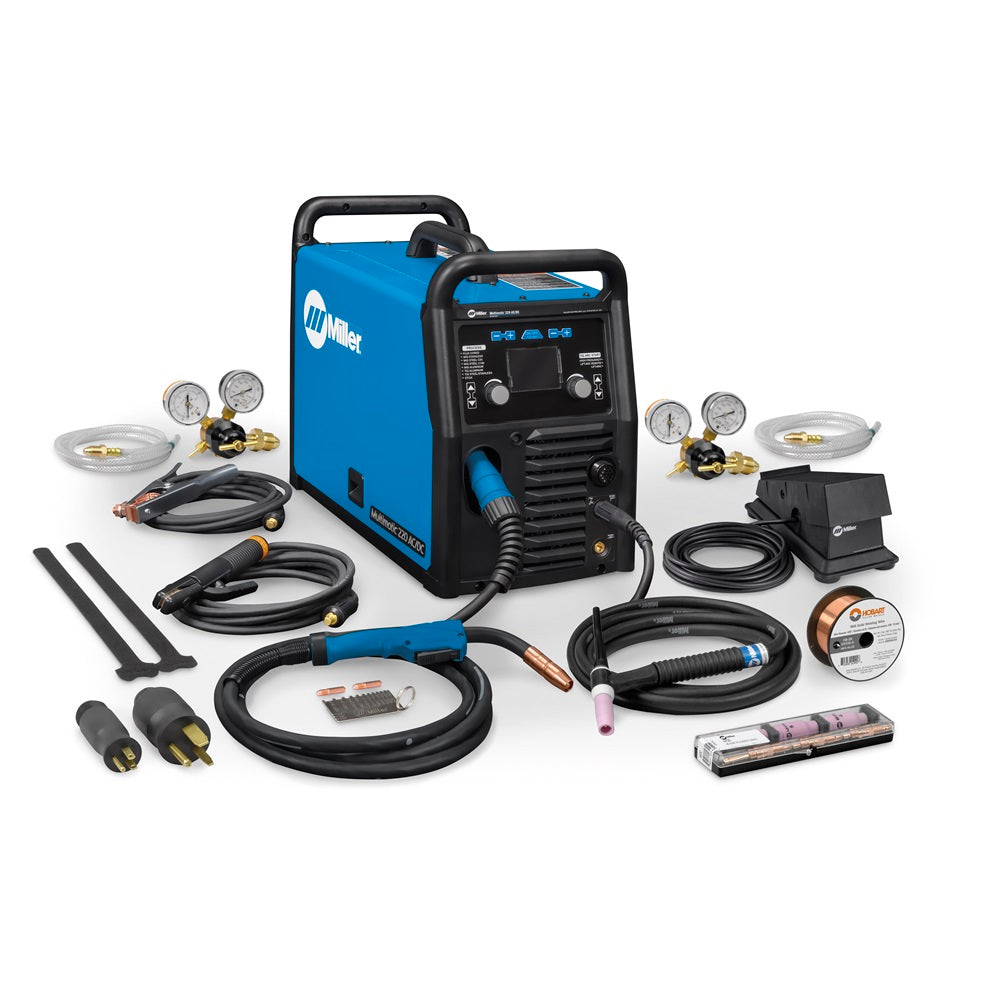

Miller Multimatic 220 AC DC Package 907757 Includes:

• Power source 10 ft. (3 m) MDX™ -100 MIG gun
• 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
• 12.5 ft. (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25 mm Dinse-style connector
• 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
• 6.5 ft. (2 m) power cord with MVP™ plugs for 120 V and 240 V
• RFCS-14 HD foot control with 20 ft. (6 m) cord
• Two flow gauge regulators and gas hoses for argon or AR CO2 mix
• Hobart® spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select ™ drive roll for .024 in. (0.6 mm) or .030 .035 in. (0.8 0.9 mm) solid wire, and .030 .035 in. (0.8 0.9 mm) flux-cored wire
• AK2C TIG torch accessory kit
• Material thickness gauge 229895
• Hook-and-loop cord wraps

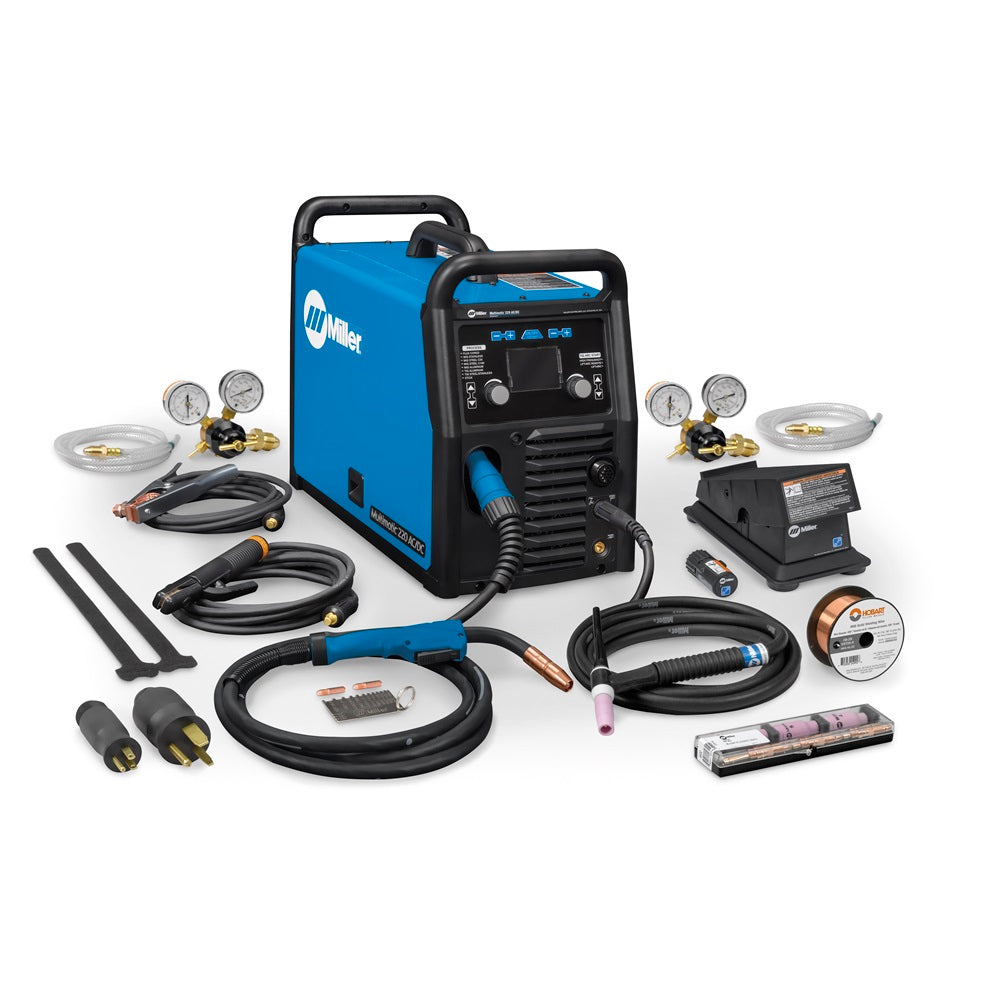

• Multimatic 220 AC DC Package 907757002:

  • Includes wireless foot control
  • Does not include RFCS-14 wired foot control

  • Full Product Data Sheet

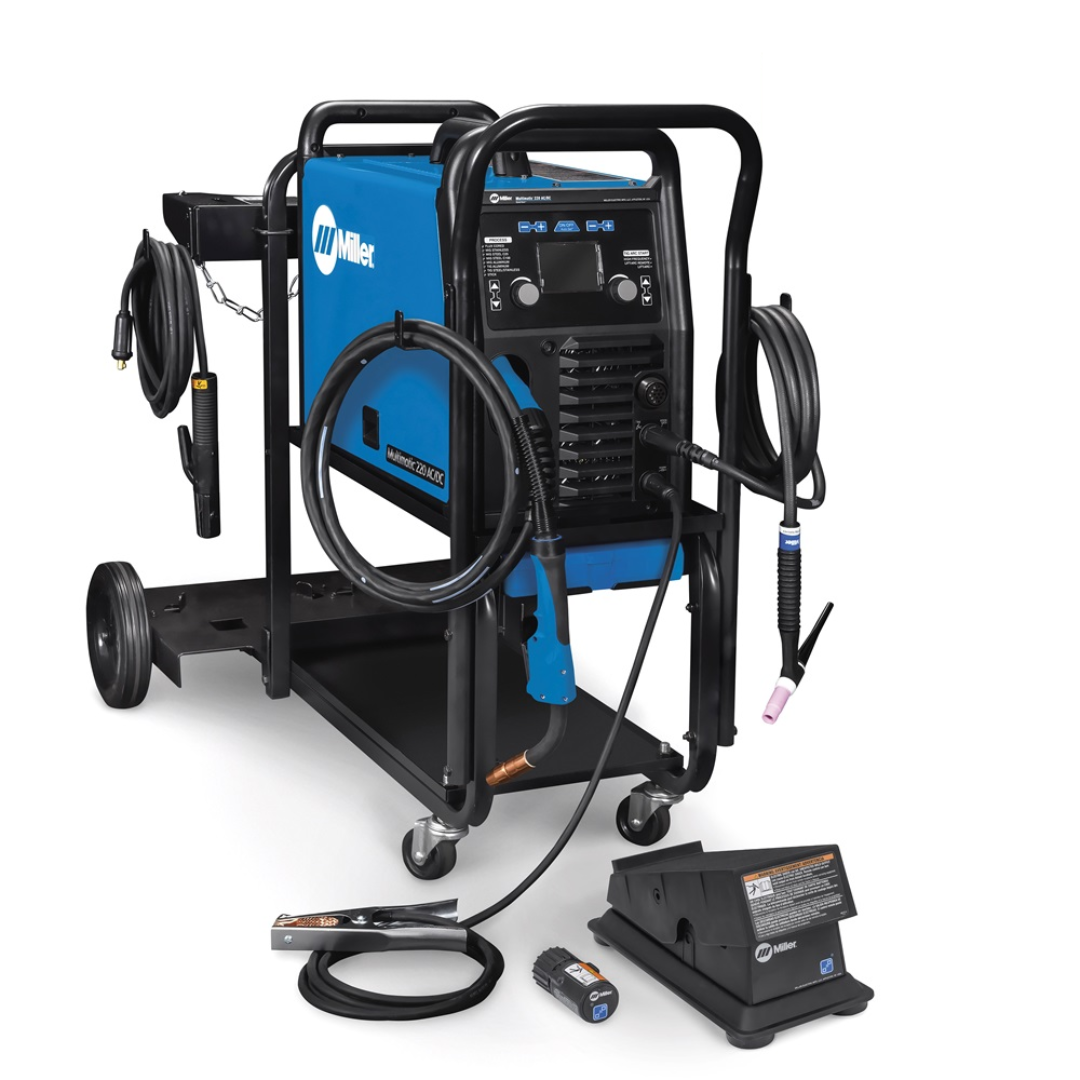

Select Package	220 AC/DC w/ Wired Foot Pedal – 907757, 220 AC/DC w/ Wireless Foot Pedal – 907757002, 220 AC/DC w/Dual Cyl. Cart w/Wireless Foot Pedal – 951000104
