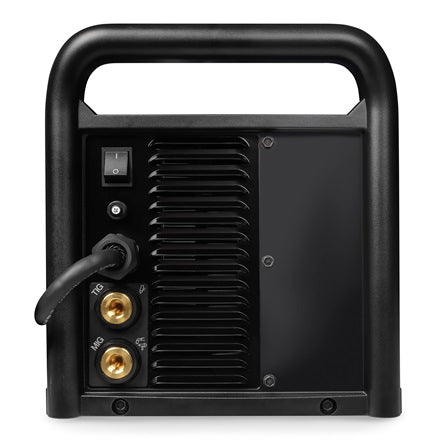

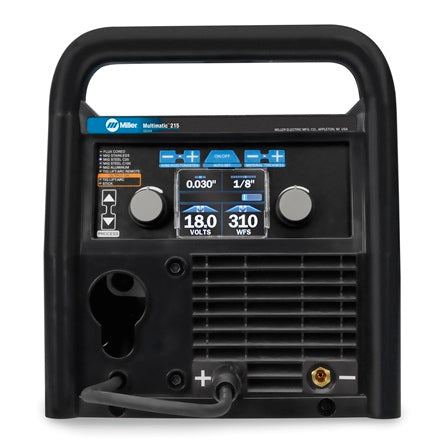

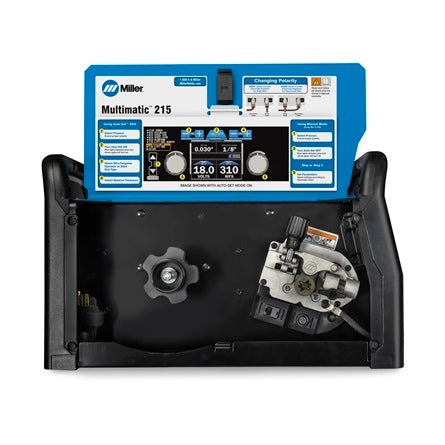

Miller Multimatic® 215 Multiprocess Welder with TIG Kit

Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3 8” mild steel.

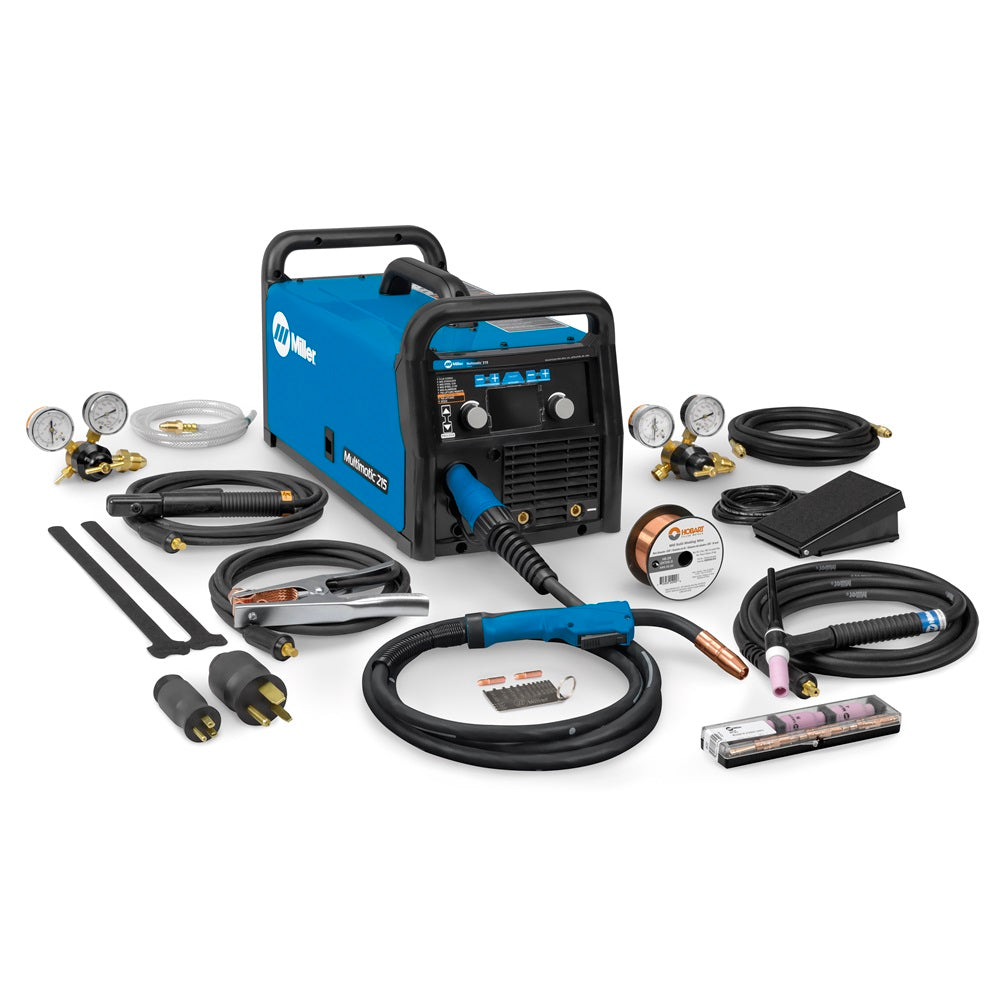

What s Included

• Multimatic® 215 Part Number 907693
• Material thickness gauge #229895
• 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
• 10 ft (3 m) MDX™-100 MIG gun
• 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
• 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
• Argon and AR CO2 mix regulator flow gauge with hose
• Spool of Hobart® .030 in (0.8 mm) solid wire
• Two contact tips for .030 in (0.8 mm) wire
• Quick Select™ drive roll for .024 in (0.6 mm) or .030 .035 in (0.8 0.9 mm) solid wire, and .030 .035 (0.8 0.9 mm) flux cored wire
• Hook-and-loop cord wraps
• TIG Kit for Multimatic 215 Part No. 301337

• Product Name Part Number		Miller Multimatic 215  951674
  Welding Processes		MIG (GMAW), Flux Core (FCAW), TIG (GTAW), Stick (SMAW)
  Input Voltage		120V 230V, Single Phase
  Max. Input Current		23A (120V), 27A (230V)
  Welding Output Amps (230V)		MIG: 30 – 230A TIG: 20 – 210A Stick: 30 – 200A
  Welding Output Amps (120V)		MIG: 30 – 125A TIG: 20 – 150A Stick: 30 – 100A
  Output Current		DC – CC CV
  Aluminum TIG
  Spool Gun Ready		– Spoolmate 150
  Dimensions		H: 12.5 in. (318 mm) W: 11.25 in. (286 mm) D: 20.5 in. (521 mm)
  Weight		38 lb. (17.2 kg)
  Warranty		Machine: 3-Year Parts & Labour, Torch: 90 Days Parts

  Full Product Data Sheet | MultiMatic 215 User Manual | MDX Torch Consumables
