Miller Millermatic® 255 MIG Welder – 208 240V



Easy to use machine to increase efficiency and productivity for the light manufacturing and fabrication users. Color screen featuring Auto-Set™ Elite and Pulsed MIG. This all-in-one welder connects to 208 – 240 volt input power.

Welds up to 1 2” aluminum.

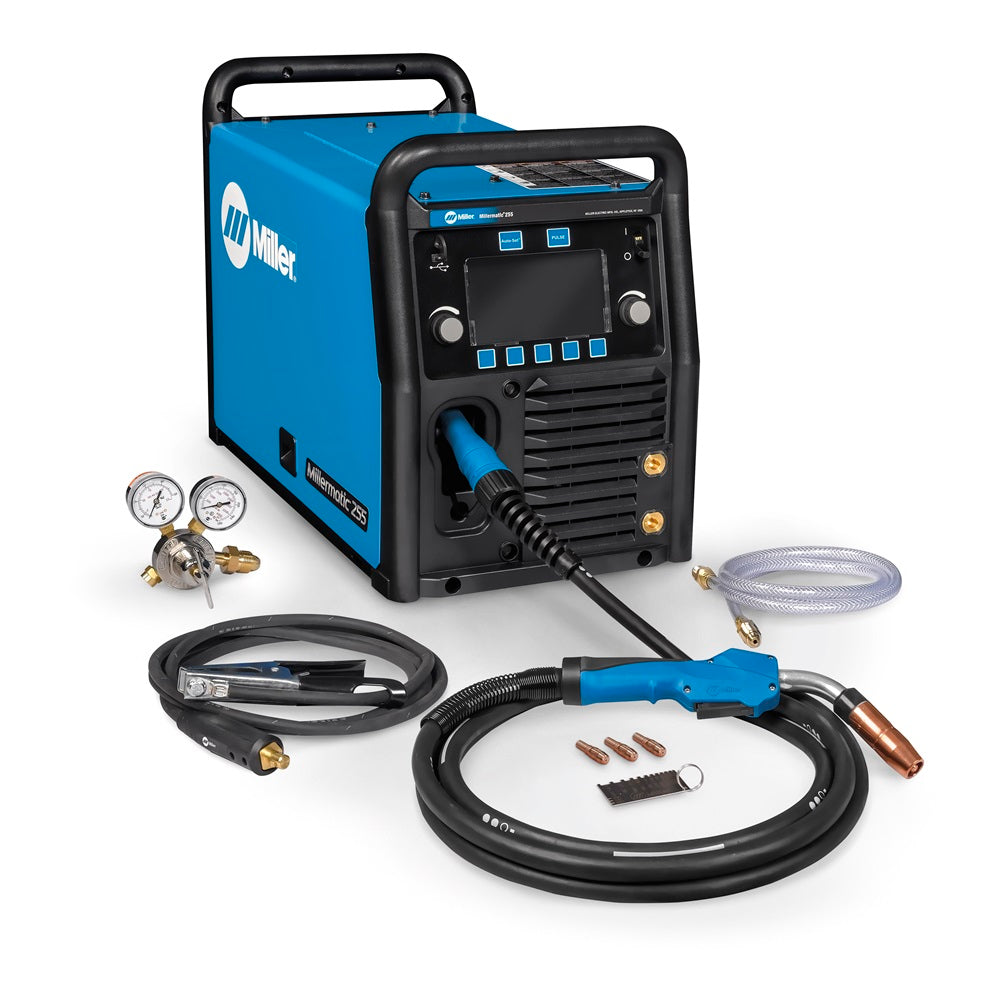

What s Included (Machine Package)

• Millermatic 255 with 10 ft. (3 m) power cord
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w Bernard® AccuLock™ S consumables for .035 .045 in. (0.9 1.2 mm) wire
• 10 ft. (3 m) work cable and clamp and 50mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR CO2 mix
• Extra contact tips
• .035 .045 in. (0.9 1.2 mm) reversible drive rolls
• Material Thickness Gauge

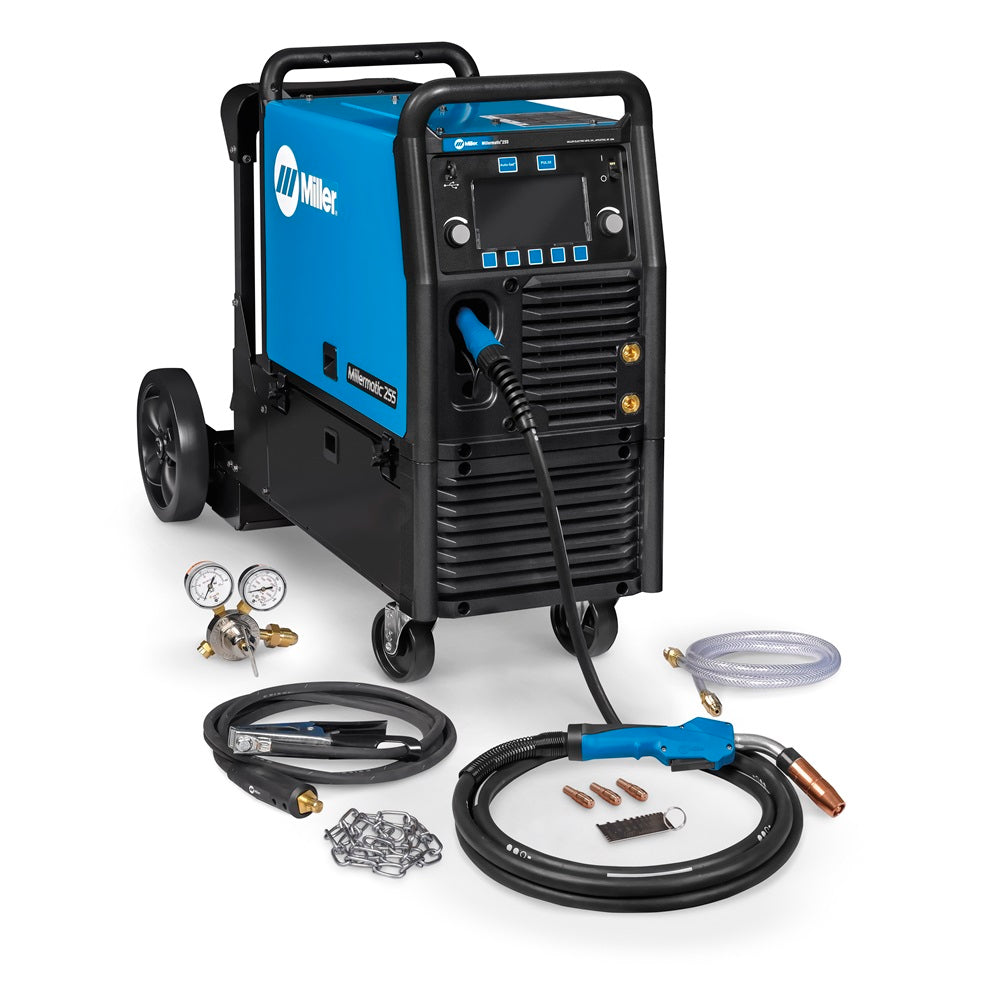

• Also Included (Running Gear Package)

  • Chain to secure gas cylinder
  • EZ-Latch™ Running Gear

  • Product Name Part Number		Miller Millermatic 255 907734 951766
    Welding Processes		MIG (GMAW), Flux Core (FCAW)
    Input Voltage		208 240 V, 50 60 Hz (1 Phase)
    Input Current		32.3 28.8 18.2 15.4 A
    Welding Output Amps		20-350 A
    Output Current		DC – CV
    Aluminum TIG		❌
    Spool Gun Ready		✔️ –  Spoolmatic or XR Alumapro
    Dimensions		Machine only H: 19.24 in. (489 mm) W: 13.75 in. (349 mm) D: 24.25 in. (616 mm) Machine with running gear H: 32 in. (813 mm) W: 13.75 in. (349 mm) D: 45 in. (1,143 mm)
    Weight		Machine only: 84 lb. (38 kg) Machine with running gear: 148 lb. (67 kg)
    Warranty		Machine: 3-Year Parts & Labour, Torch: 90 Days Parts



    Full Product Data Sheet | MillerMatic 355 User Manual | MDX Torch Consumables

    Model	Machine Package – 907734, Machine Package with Cart – 951766
