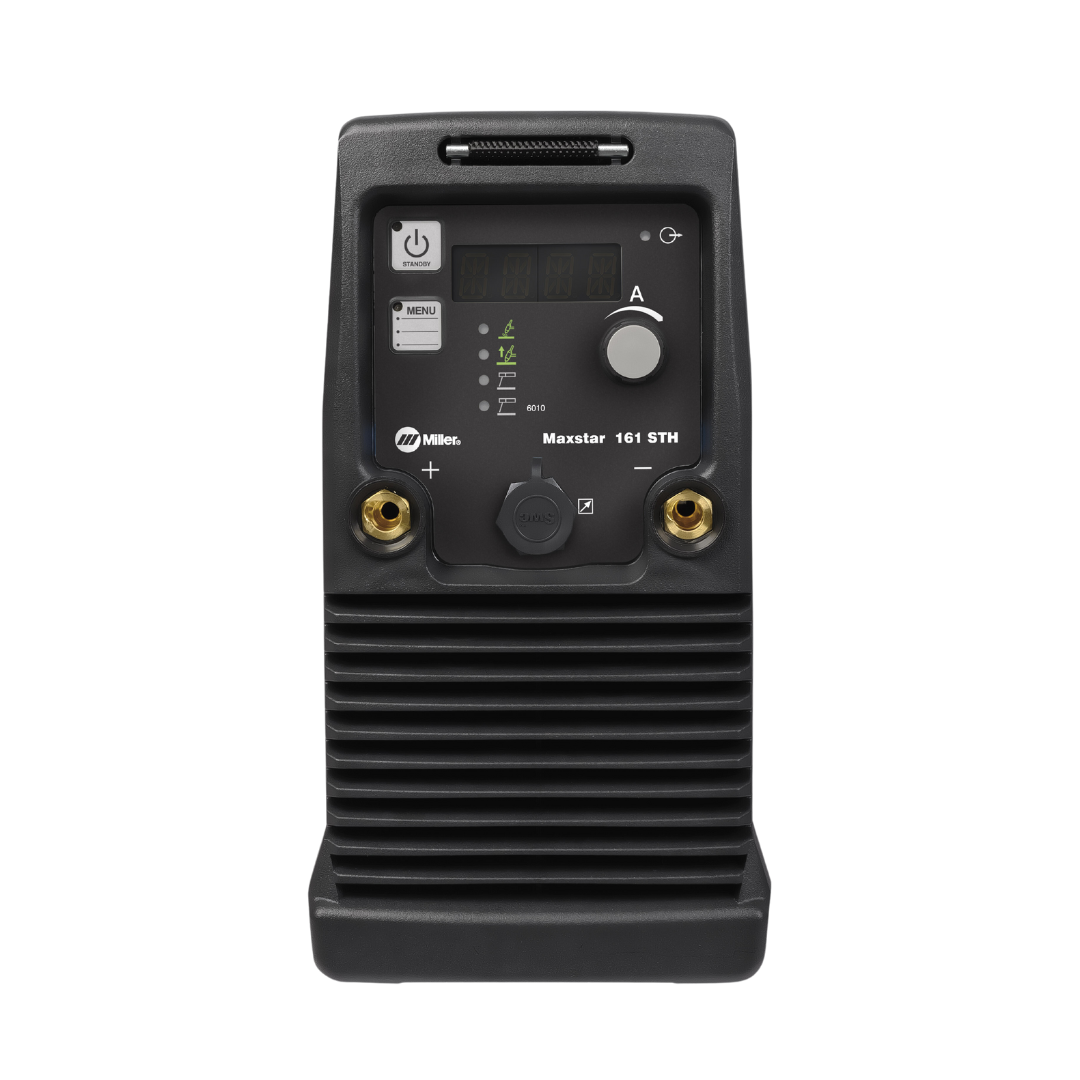

Miller Maxstar® 161 STH 120-240 V, Stick Package



Best-of-class – provides maximum portability and performance in the most compact Stick package in the industry. Packs dependability and performance all in one machine.

Top Features

• Auto-Line Power Management Technology
  Allows for any input voltage hookup (120–240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or
  unreliable power.

• High Frequency and Pulse TIG Welding
  High-frequency for non-contact arc initiation that reduces tungsten
  and material contamination. Pulsing can increase puddle agitation, arc stability and travel speeds while reducing heat input and distortion.

• • Portable
    in the shop or at the jobsite — at 13 pounds, the handle shoulder strap allows
    the end user to easily move from location to location.

  • No More Sticky Electrodes
    With Miller s Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes

  • Technical Specs

    Product Name Part Number		Miller Maxstar 161 STH 907711
    Input Voltage		120V thru 240V, 1Ph, 50 60 Hz
    Input Current (120V)		60 A at 22.4 VDC, 100% duty cycle – 14.68A 90 A at 23.6 VDC, 30% duty cycle – 23.16A
    Input Current (240V)		110 A at 24.4 VDC, 100% duty cycle – 14.31A 160 A at 26.4 VDC, 20% duty cycle – 22.55A
    Dimensions		H: 10.3 in. (262 mm) W: 5.6 in. (142 mm) D: 13.5 in. (343 mm)
    Weight		13 lb

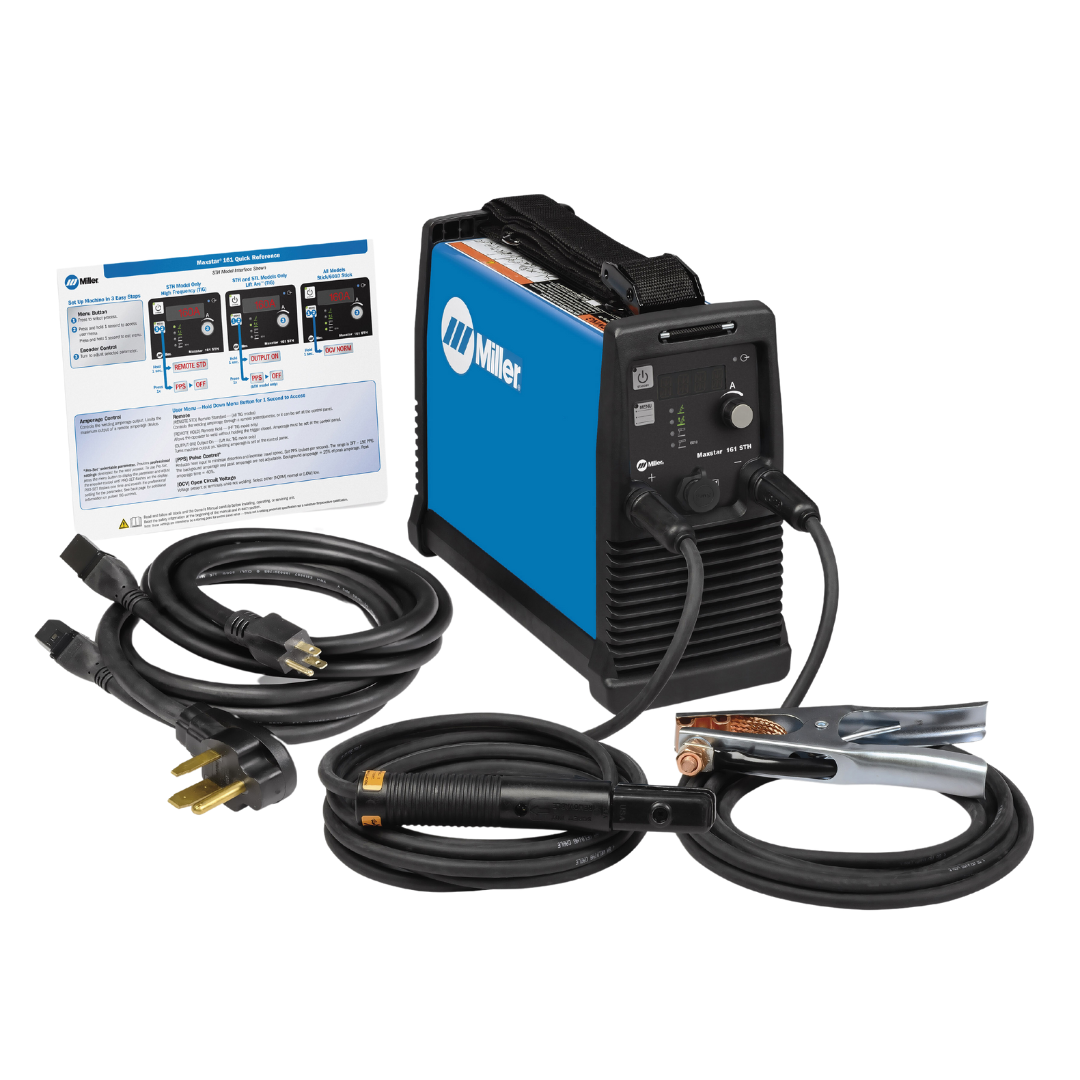

    What s Included

    • Maxstar 161 power source
    • 6.5 ft. (2 m) 120-volt and 240-volt power cords
    • Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector
    • Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector
    • One air-cooled TIG torch connector (195234)
    • Handle shoulder strap
    • Quick-reference guide

    • Full Product Spec Sheet
