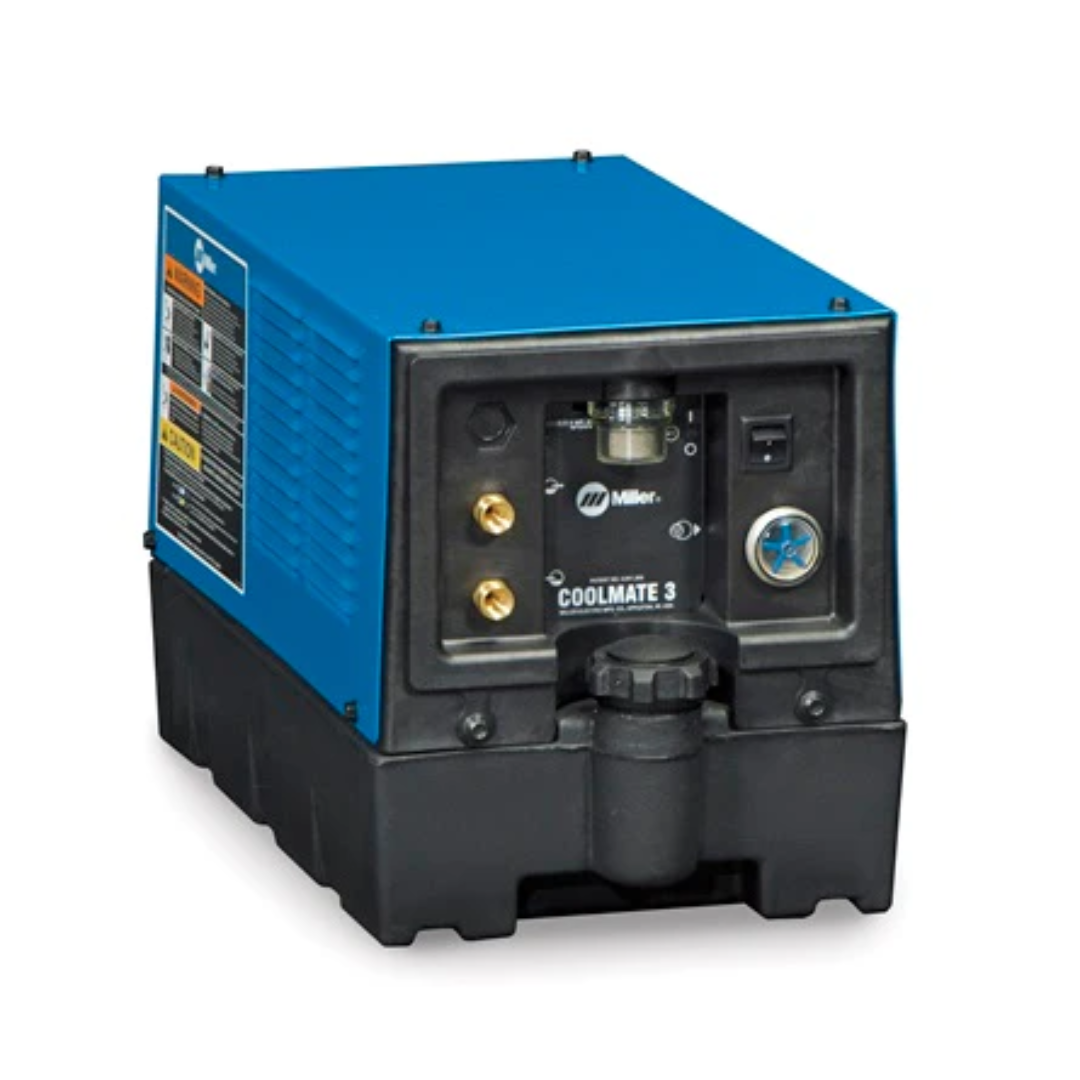

Miller Coolmate™ 3 Water Cooler



The Coolmate 3 from Miller features a Closed-Loop design with radiator, reducing coolant temperatures and prevents the system from overheating. The Closed-Loop design also recirculates the coolant through a fan-cooled heat exchanger.

Top Features

• Rustproof coolant reservoir molded of poly ethylene for durability and corrosion resistance.

• Standard inlet outlet torch fittings are compatible with TIG and MIG torches having standard 5 8-inch 18 left-hand fittings.

• 10-foot (3 m) power cord with 110V plug is longer than most power cords in the industry — providing the extra length when required.

• Technical Specs

  Product Name Part Number		Miller Coolmate 3  043007
  Torch Compatibility		Any water cooled GMAW, GTAW torch with fittings
  Input Voltage		110V 120V, 50 60 Hz
  Input Current		4.7A
  Maximum Cooling Capacity		13,000 BTU hr (3,820W)
  Maximum Flow		5.6 L min (5.9 Qt min)
  Reservoir Capacity		11.4 L (3 gal.)
  Dimensions		H: 13.25 in. (337 mm) W: 12.25 in. (311 mm) D: 23.25 in. (584 mm)
  Weight		40 lb
  Warranty		1 Year, parts and labour



  Coolmate Series Product Data Sheet
