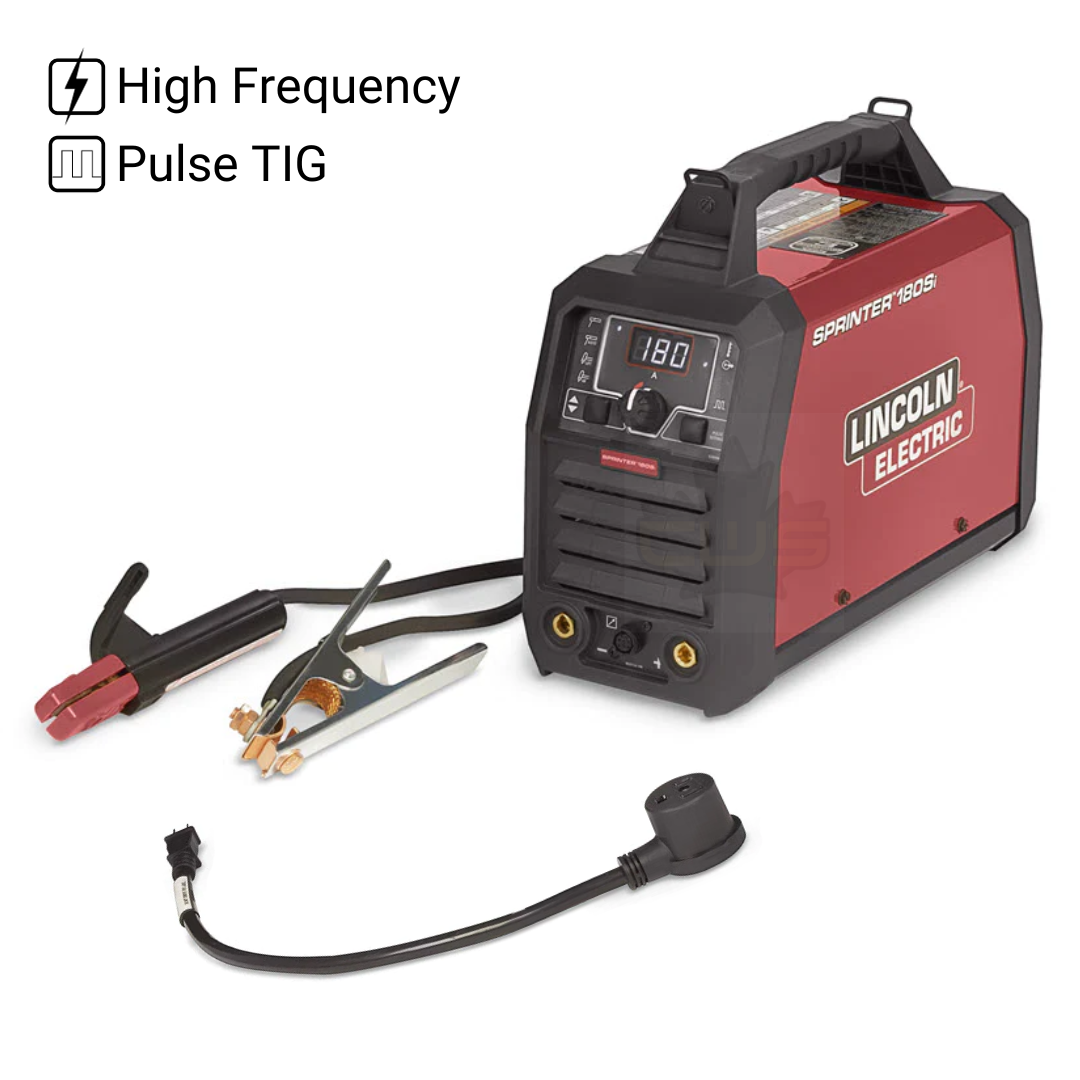

The Sprinter™ 180Si stick welder gives you power in a small package. Weighing in under 20 lbs., it is lightweight and portable, and the 180 amp output enables you to weld electrodes up to 5 32 inches, including 7018 and 6010. This machine is more than just a stick welder. The Sprinter 180Si welder combines superior stick capabilities with high-frequency TIG, pulsed TIG mode, amptrol compatibility and dual input voltage (120V 230V). A simple display allows you to dial in the weld settings so you can get started quickly and easily on any job, anywhere – maintenance work, fabrication, light structural and everything in between. The Sprinter 180Si is a stick welder and so much more.

Value Added Features

• High Frequency Start – Strike a precise arc every time while TIG welding

• Pulsed TIG Mode – Provides heat management and enhanced control when making thin, precise welds
• Two Stick Modes – Dedicated E6010 and E7108 weld modes allow for greater welding versatility and superior performance

• Dual Input – Run the Sprinter 180Si welder off 120V or 230V depending on the job

• Product Name		Sprinter 180Si
  Welding Processes		Stick (SMAW), TIG (GTAW)
  Input Voltage		120V 208-230V 1Ph
  Welding Output Amps		Stick: 20-85A, TIG: 10-110A (120V) Stick: 20-180A, TIG: 10-200 (230V)
  Output Current		DC – CC, Pulse TIG
  Aluminum TIG		❌
  Remote Control Connector		✔️ – Lincoln 8-Pin (K4361-1)
  Dimensions		11.8 x 6.25 x 16
  Weight		20 lb.
  Warranty		3-Year Parts & Labour



  Available Options and Part Numbers

  • Sprinter 180Si Machine Package – K5453-1

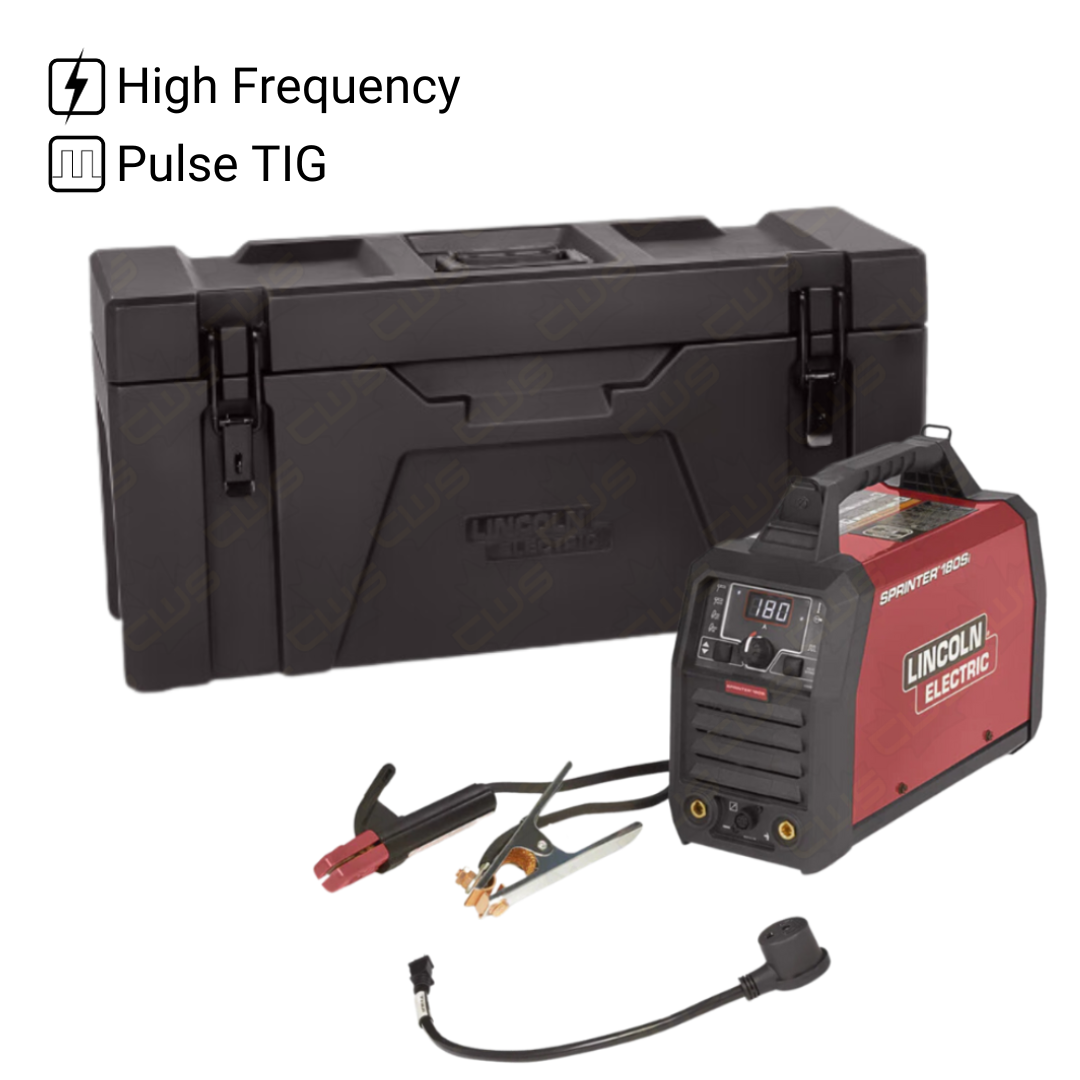

  • Sprinter 180Si Package with Hard Case One-Pak – K5600-1

  • Please see this link for the Sprinter 180Si TIG Packages

    Packages Include

    • Sprinter 180Si welding machine
    • Insulated Electrode Holder and Cable
    • Heavy Duty Work Clamp and Cable
    • 230V to 120V Power Cord Adapter
    • One-Pak Includes Additional Hard Case (K5549-1)

    • Full Product Data Sheet

  Package Option	Machine Package Only (K5453-1), Machine Package with Case (K5600-1)
