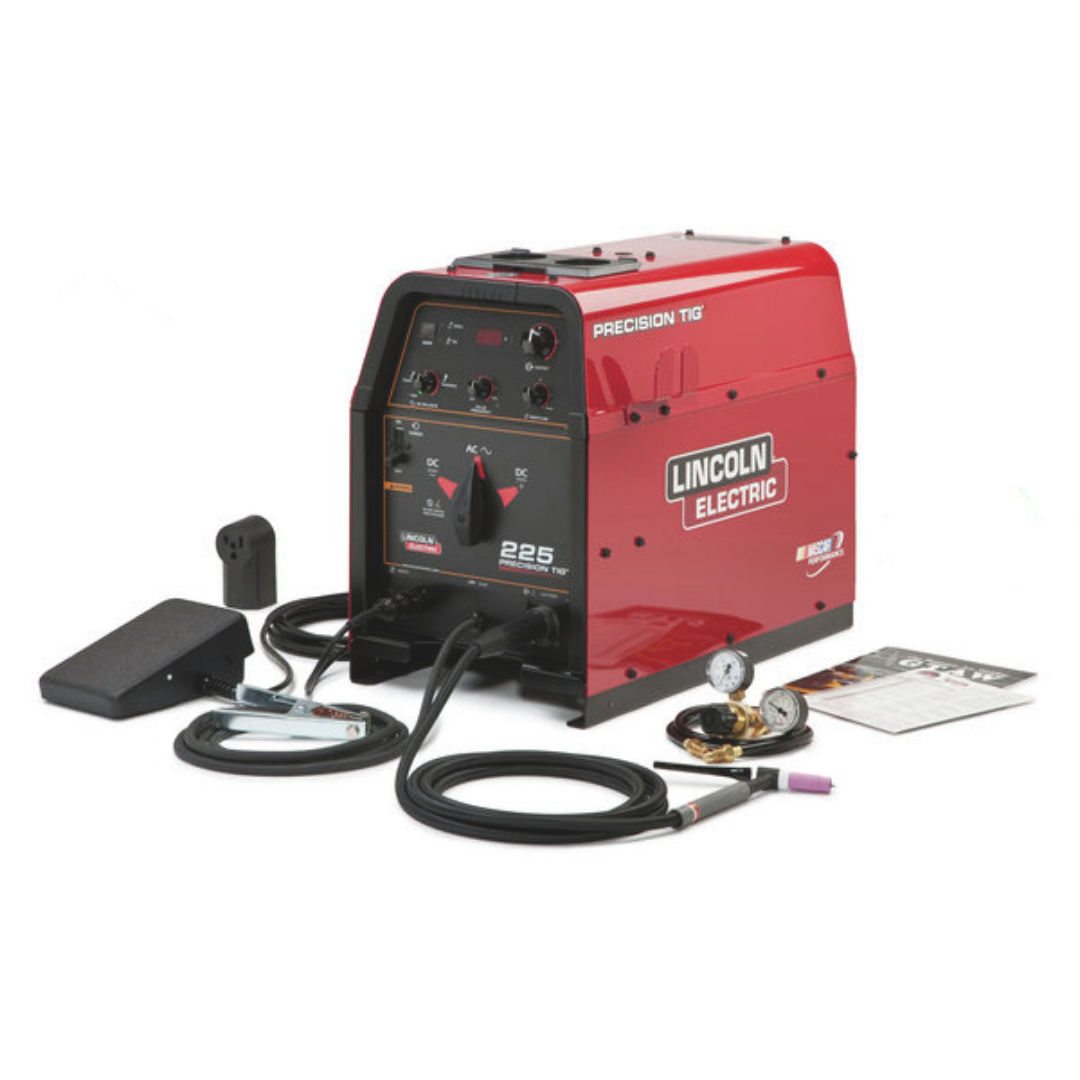

Lincoln Precision TIG® 225 TIG Welder Ready-Pak®



Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools.

Top Features:

• Easy-to-use operator interface – select mode, polarity and weld
• AC Auto-Balance® automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum
• Enable the TIG pulser to minimize material distortion from excessive heat input
• Offers outstanding stick welding capabilities with up to 5 32 in. (4.0 mm) electrodes
• Experience enhanced starting, optimal arc stability, and accomplish more precise welds with our patented Micro-Start™ II Technology

• Input Power
  Single phase, 230V

  Processes
  TIG AC DC, Stick

  What s Included:

  • Torch Parts Storage Compartment
  • Torch Hanger
  • 10 ft. (3.0 m) Work Cable & Clamp
  • Removable Lift Eye
  • 9 ft. (2.7 m) Input Power Cord with NEMA 6-50P Plug
  • NEMA 6-50R Receptacle
  • TIG Procedure Guide GTAW (TIG) Handbook
  • PTA-17 150 amp TIG torch w 1 pc. cable 12 ft. (3.6 m) Ultra-Flex™ Cable

  • Twist Mate™ Adapter
  • 3 32 in. (2.4 mm) 2% Ceriated Tungsten Collet & Collet Body
  • 7 16 in. (11.1 mm) Alumina Nozzle
  • Long Back Cap
  • Gas Regulator with Hose
  • Foot Amptrol™ with 25 ft. (7.6 m) cable assembly (K870)

  • Manufacturer Part Number: K2535-1

    Download Spec Sheet
