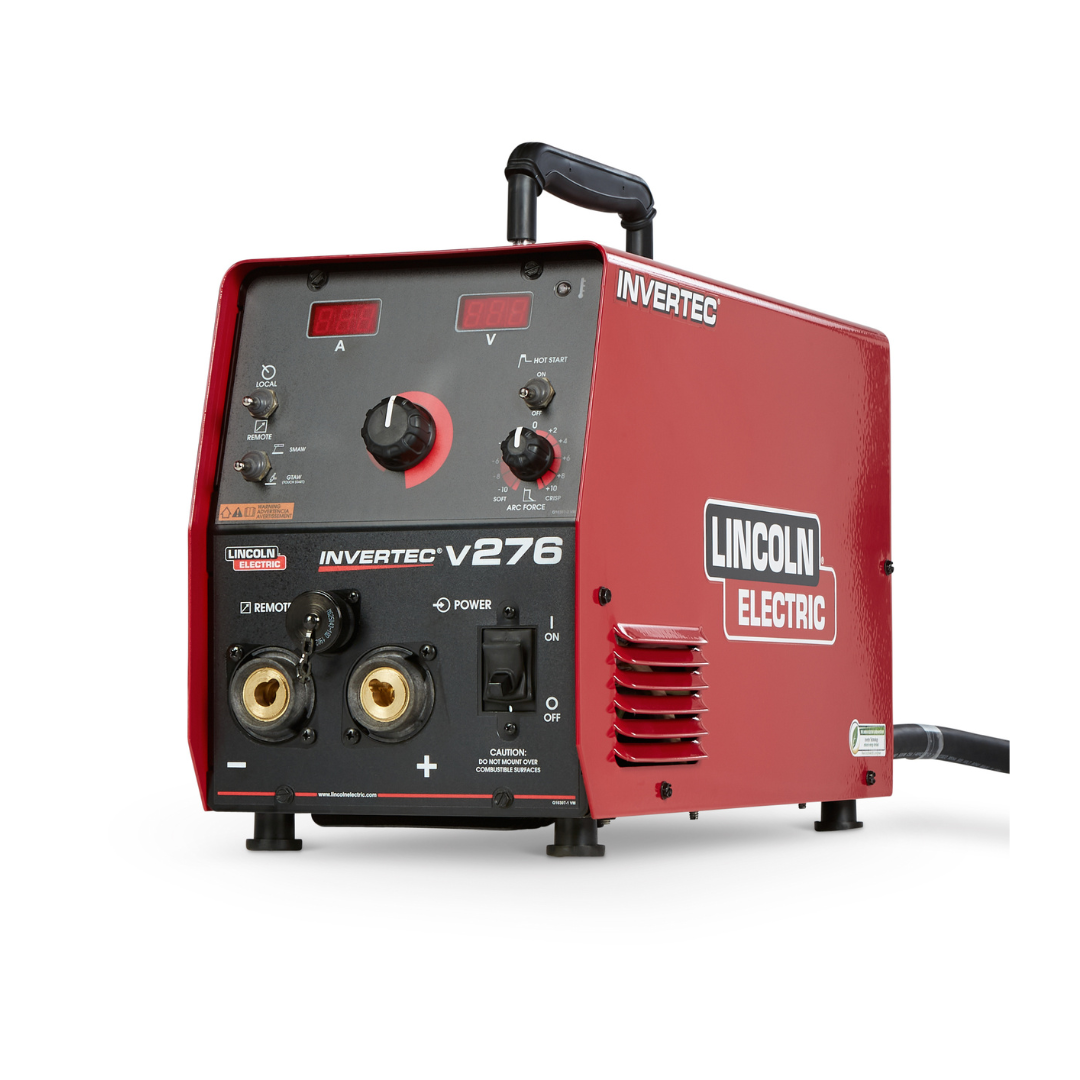

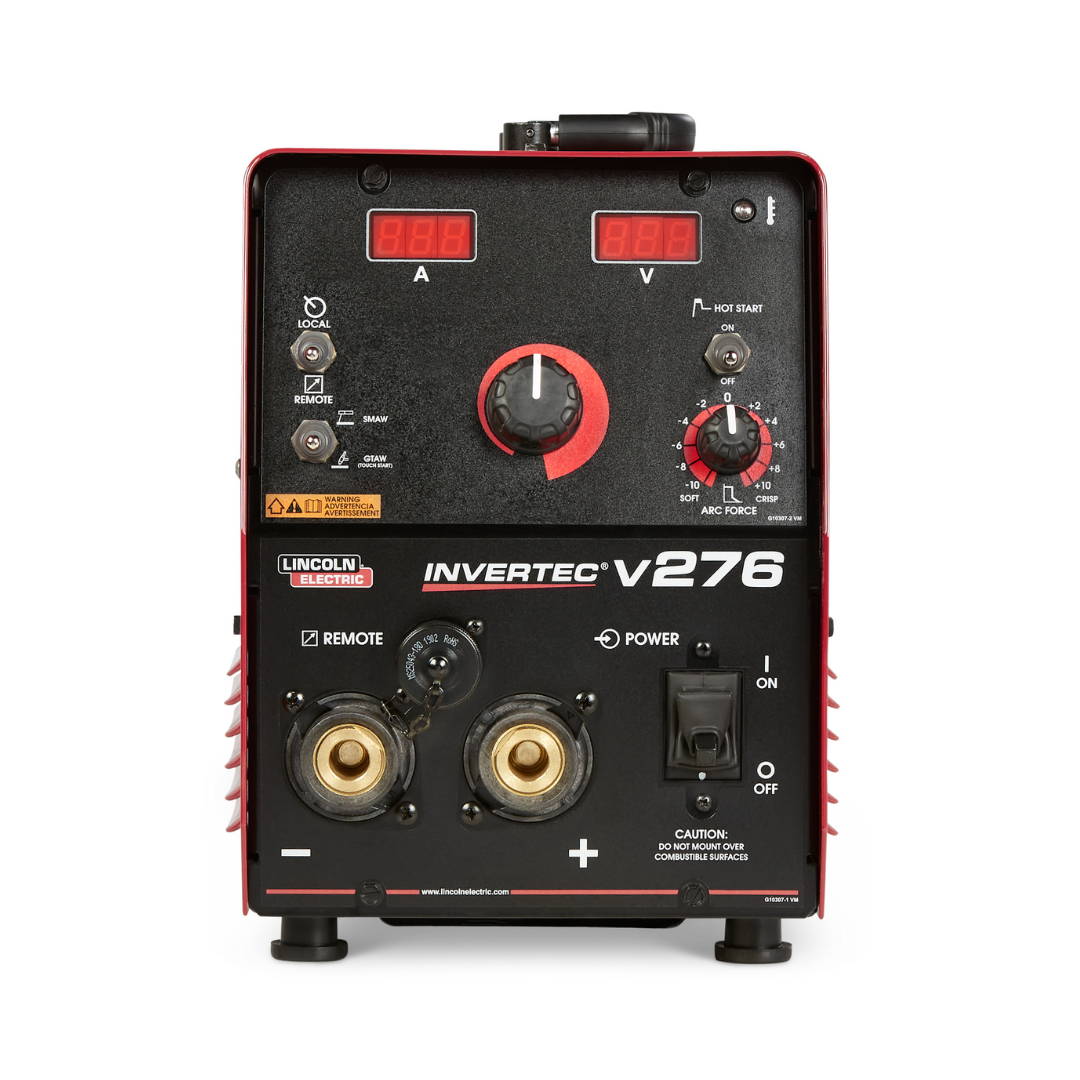

Lincoln Invertec® V276

The Invertec® V276 stick and TIG power source is ideal for outdoor construction applications.  This small package delivers outstanding performance on a wide range of electrode types and sizes.  Plus it is built rugged enough to handle the toughest construction sites.

Features

• Outstanding AWS E6010 and E7018 performance – using up to 7 32 in. (5.5 mm) diameter electrode that enables both whip and drag techniques.
• Touch Start TIG® – allows the welding arc to be established without high frequency starting
• Air carbon arc cutting and gouging – with up to 3 16 in. (4.8 mm) diameter carbon electrode.
• Selectable Hot Start Turn it on for an extra boost of output to help you fire off and prevent sticking to the work piece.

• Product Name		Invertec V276
  Welding Processes		Stick (SMAW), TIG (GTAW)
  Input Voltage		208-575V Inclusive, 1Ph or 3Ph
  Welding Output Amps		Stick: 20-275A TIG: 20-275A
  Output Current		DC – CC
  Aluminum TIG
  Remote Control Connector		– Lincoln 6-Pin
  Dimensions		13.6 x 9 x 20.25
  Weight		54.5 lb
  Warranty		3-Year Parts & Labour

  Available Options and Part Numbers

  • Lincoln Invertec 275, Tweco Style Connections – K4868-1
  • Lincoln Invertec 275, Dinse Style Connections – K4868-2

  • Machines sold as power source only, accessories are not included

    Full Product Data Sheet

  Select Connection Style	Tweco Style Connectors – K4868-1, Dinse Style Connectors – K4868-2
