Flexible

• Compatible with across-the-arc, analog, digital or CrossLinc™ feeders
• Premium multi-process arc characteristics works with all DC wire, stick and TIG processes
• Lightweight and portable

•  Product Highlights

  • Desert Duty Rated™ for extreme temperatures up to 55°C
  • VRD® Voltage Reduction Device reduces Open Circuit Voltage for added safety
  • Offered in 4 and 6 pack rack configurations
  • Wide 5-425 amperage range
  • Capable of Arc Gouging with 3 16 in. (4.8 mm) carbons

  • Input Power		200-600V 1Phase 3Phase
    Rated Output		350A 34V 60% 300A 32V 100%
    Output Range		5-425A
    Solid Wire Size Range		.023-1 16 in. (.6-1.6 mm.)
    Cored Wire Size Range		.030-5 64 in. (.8-2 mm.)
    Wire Feed Speed Range		50-800 ipm
    DIMENSIONS (H X W X D)		17 x 13 x 24 in.
    NET WEIGHT		84 lb

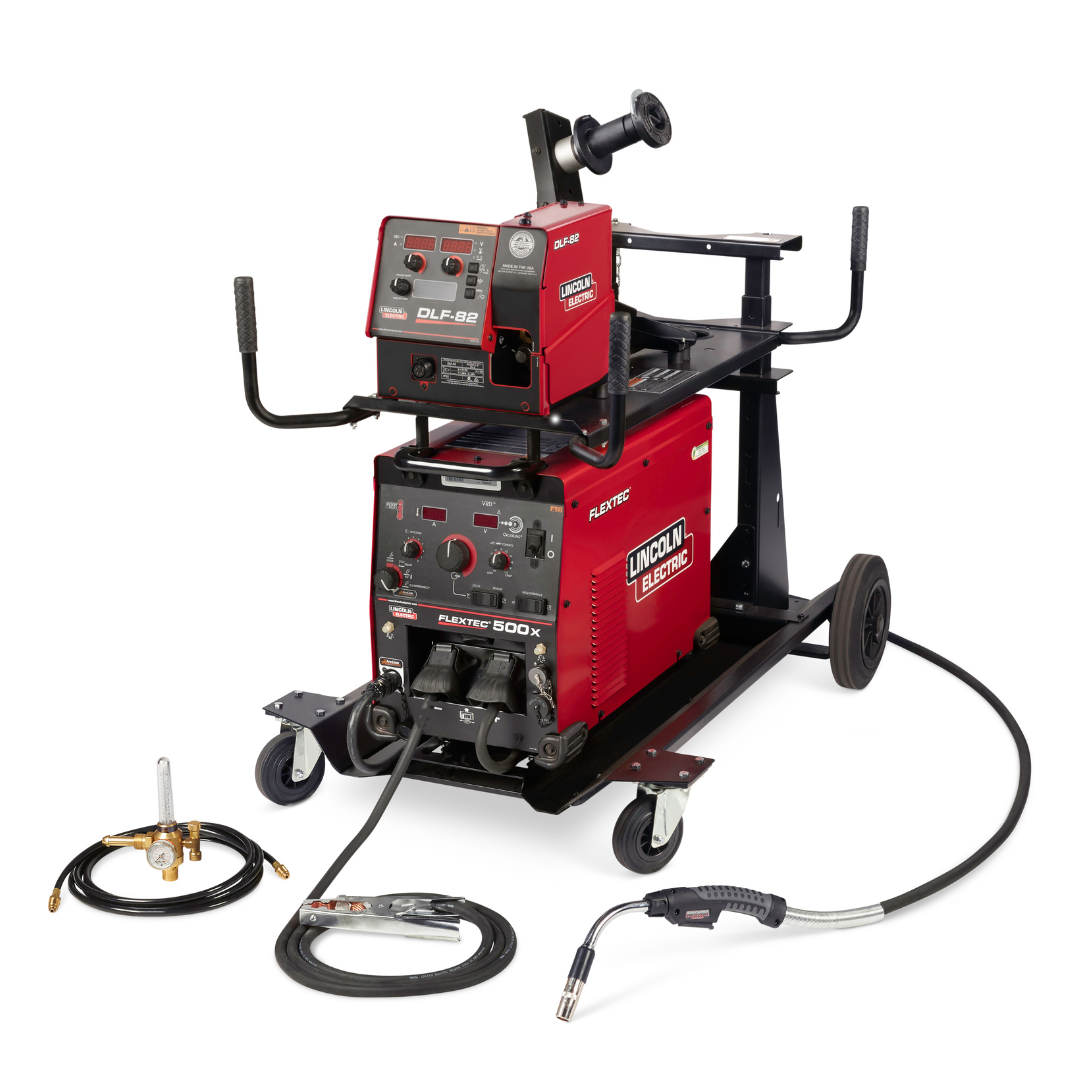

    What s Included?

    • Fkextec 500X DLF-82 Ready-Pak
    • DLF-Feeder Cart Mounting Bracket | K5395-1
    • Weld Power Cable – Lug to Lug (3 0, 600A, 60%) – 10 ft (3 m) | K1842-10
    • Flextec® 500X Locking Foot Kit | K3056-2
    • Inverter and Wire Feeder Cart | K3059-4
    • Flextec® 500X Multi-Process Welder | K3607-1
    • DLF-82 Bench Model (w Gun) | K5282-3
    • Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit | 3100211
