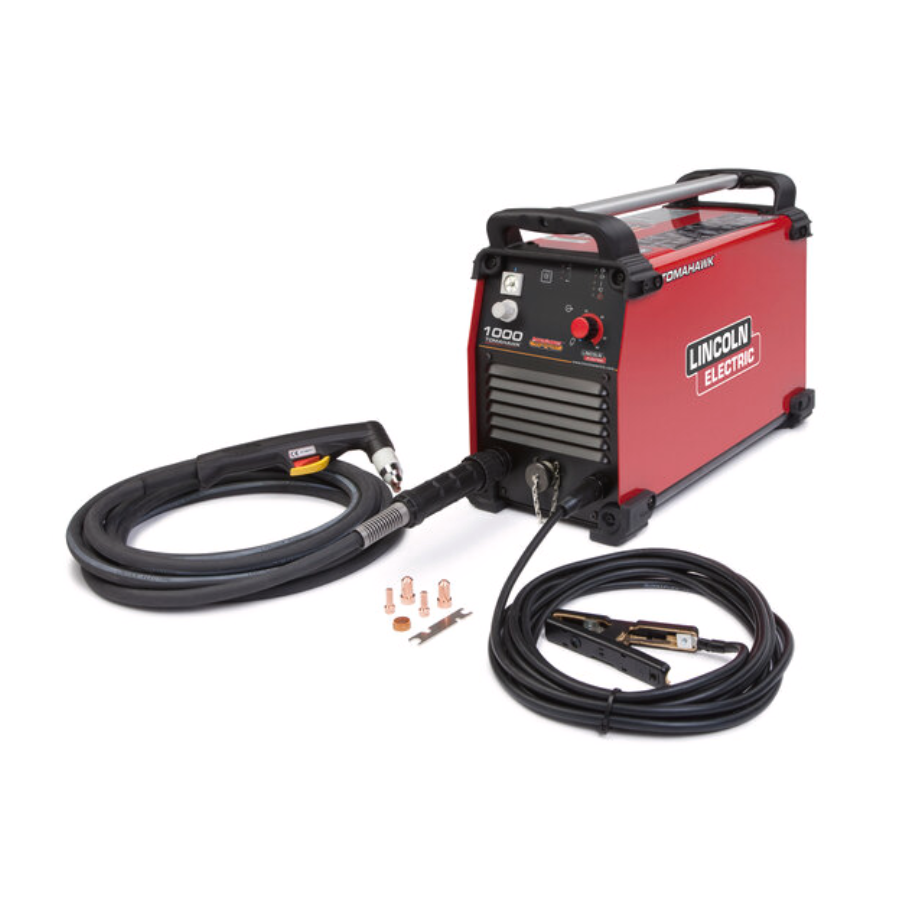

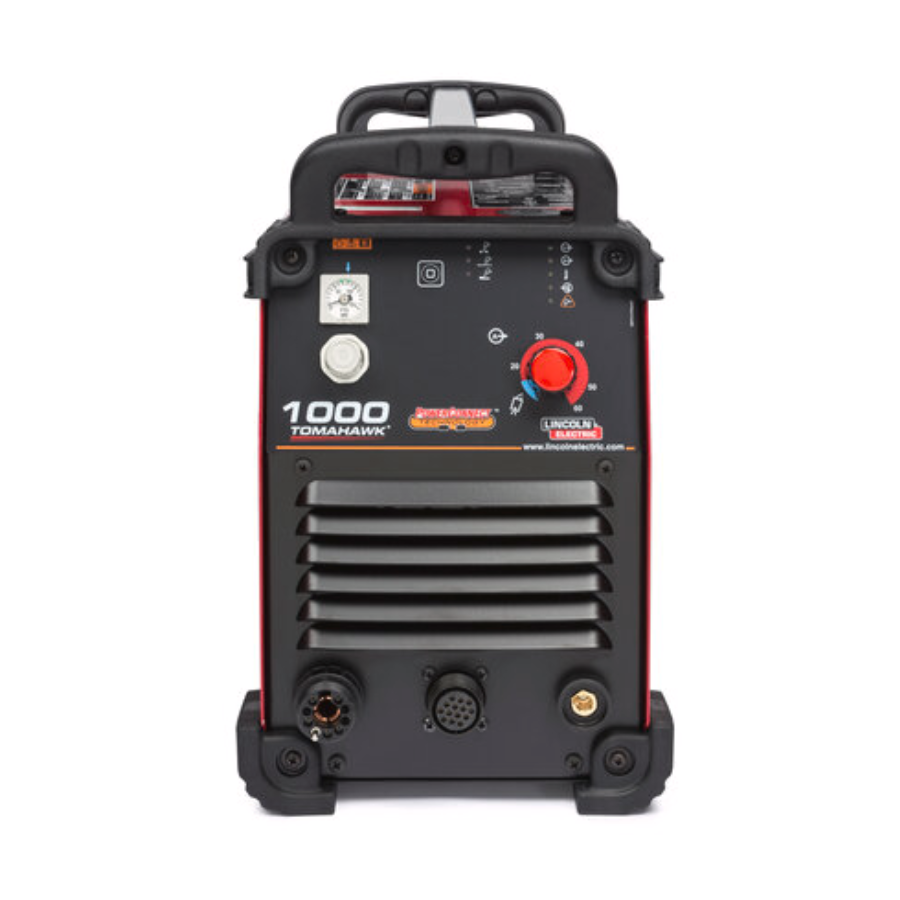

Lincoln Electric Tomahawk 1000

60 Amp Plasma Cutter

The Tomahawk 1000 plasma cutting system is portable enough to use on the jobsite and rugged enough to use on up to one inch material in a production environment. Hook up the compressed air, grab the torch and start cutting.

Features:

• PowerConnect® Technology – Automatically senses and adjusts to input power for a range of 200 up to 600 volts, single or three phase, 50 or 60 hertz. Cutting output remains constant throughout the entire input voltage range.

• Continuous Output Control – Focus the arc for different material thicknesses.

• Touch Start™ System – Reliable plasma arc initiation without high frequency.

• Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.

• Cool Operation, Long Consumable Life- New electrode and nozzle design save you money in the long run

• Added Safety – Our Parts-in-Place™ – System detects correct installation of consumables and torch.

• Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.

• Optional Machine Torch – Available for use on CNC plasma cutting table

•


  Technical Specifications

  Input Power		208 230V-575V 50 60Hz, Single or Three Phase
  Output Power		20-60A
  Duty Cycle		100% 40A@96V 50% 60A@104V
  Compressed Air Consumption		87-109 psi @ 275 SCFH
  Torch & Leads		LC65 hand torch and 25 ft. (8 m) cable



  What s Included

  • LC65 hand torch w 25 ft. (7.5 m) cable
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Spare consumables
  • Input power cord
  • 3 Year Warranty on Power Source, 1 Year Warranty on Torch

  • Product Data Sheet
