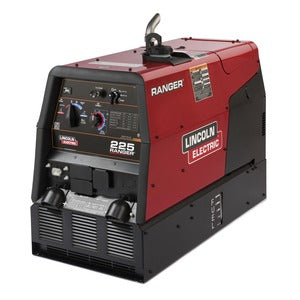

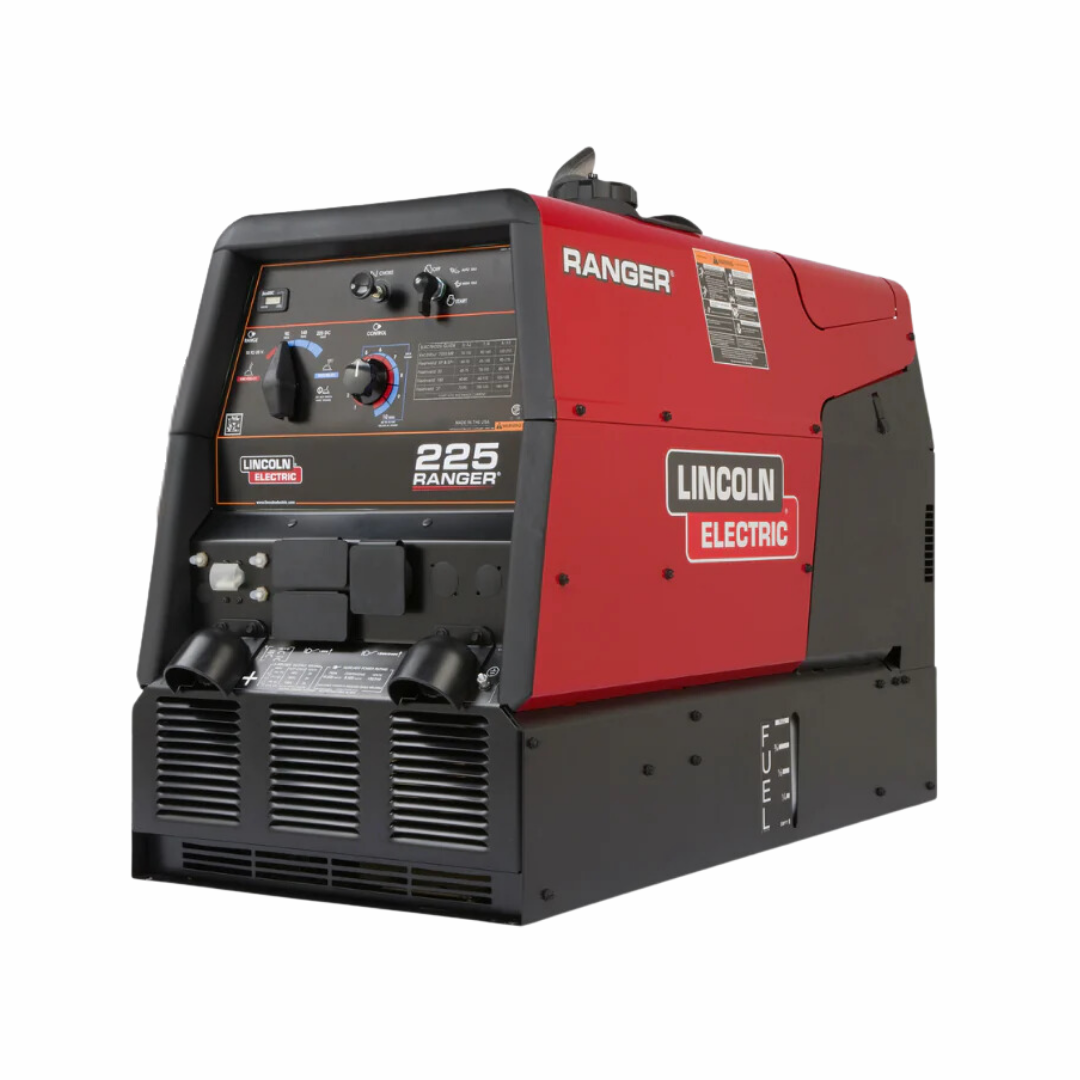

Lincoln Electric Ranger 225 Engine Driven Welder

Top Features

• Totally Enclosed Case
• Versatile DC Welding
• 10,500 Watts Peak Single-Phase AC Generator Power
• 23 HP Kohler® Gasoline Engine
• Rugged Reliability

• ARM YOURSELF WITH THE RIGHT WELDER

  The Ranger® 225 is a multi-process, engine-driven welder designed for a variety of processes – stick, TIG, MIG or flux cored. Whatever the process or application, arm yourself to get the job done and get it done right the first time.

  • Totally enclosed case protects the engine and limits noise
  • Smooth DC welding output
  • 10,500 Watts AC generator power



  Totally Enclosed Case
  • Engine is fully protected.
  • 3 service access doors.
  • Low noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.

  Versatile DC Welding
  • Smooth DC welding output for a broad range of stick electrode types.
  • MIG, flux-cored and TIG capable (with optional equipment).

  10,500 Watts Peak Single-Phase AC Generator Power
  • Peak for motor starting.
  • 9,000 watts continuous power for generator, plasma cutter or inverter welder.
  • Lights, grinder, power tools.

  23 HP Kohler® Gasoline Engine
  • 2 cylinder, 4 cycle overhead valve air-cooled design.
  • Oil drain extension for easy oil changes.
  • 12 gallon tank for extended run times.
  • Only 1.5 gallons hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.

  Rugged Reliability
  • Welding and AC generator outputs rated at 104ºF (40ºC).

  Download Tech Sheet
