Lincoln Electric OuterShield 71 Elite



Flux Cored MIG Wire

AWS: E71T-9C-H8, E71T-9M-H8, E71T1-C1A2-CS1-H8, E71T1-M21A2-CS1-H8

Smooth arc transfer, low spatter and good bead appearance make this a top quality electrode. Operators will enjoy the well directed arc with small ball transfer.

Features

• Smooth arc transfer and low spatter
• Designed for welding with either 100% CO2 or 75-82% Argon balance CO2 shielding gases
• Good bead appearance
• Fast freezing slag for out-of-position welding
• Meets AWS D1.8 seismic lot waiver requirements
• Notes: AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Electric Certificate Center.

• Typical Applications

  • Shipbuilding, barges and offshore platforms
  • Heavy equipment
  • Structural fabrication
  • General fabrication

  • Welding Positions

    • All

    • Shielding Gas

      • 100% CO2
      • Mixed Shielding Gas

      • Available Options and Part Numbers

        Diameter		15 lb. Spool		33 lb. Spool		60 lb. Coil		600 lb. Drum
        0.045 in (1.1 mm)		ED029418		ED029201				ED029202
        0.052 in (1.3 mm)		ED029419		ED029204		ED029205
        1 16 in (1.6 mm)				ED029206		ED029207		ED029387

        Full Product Data Sheet

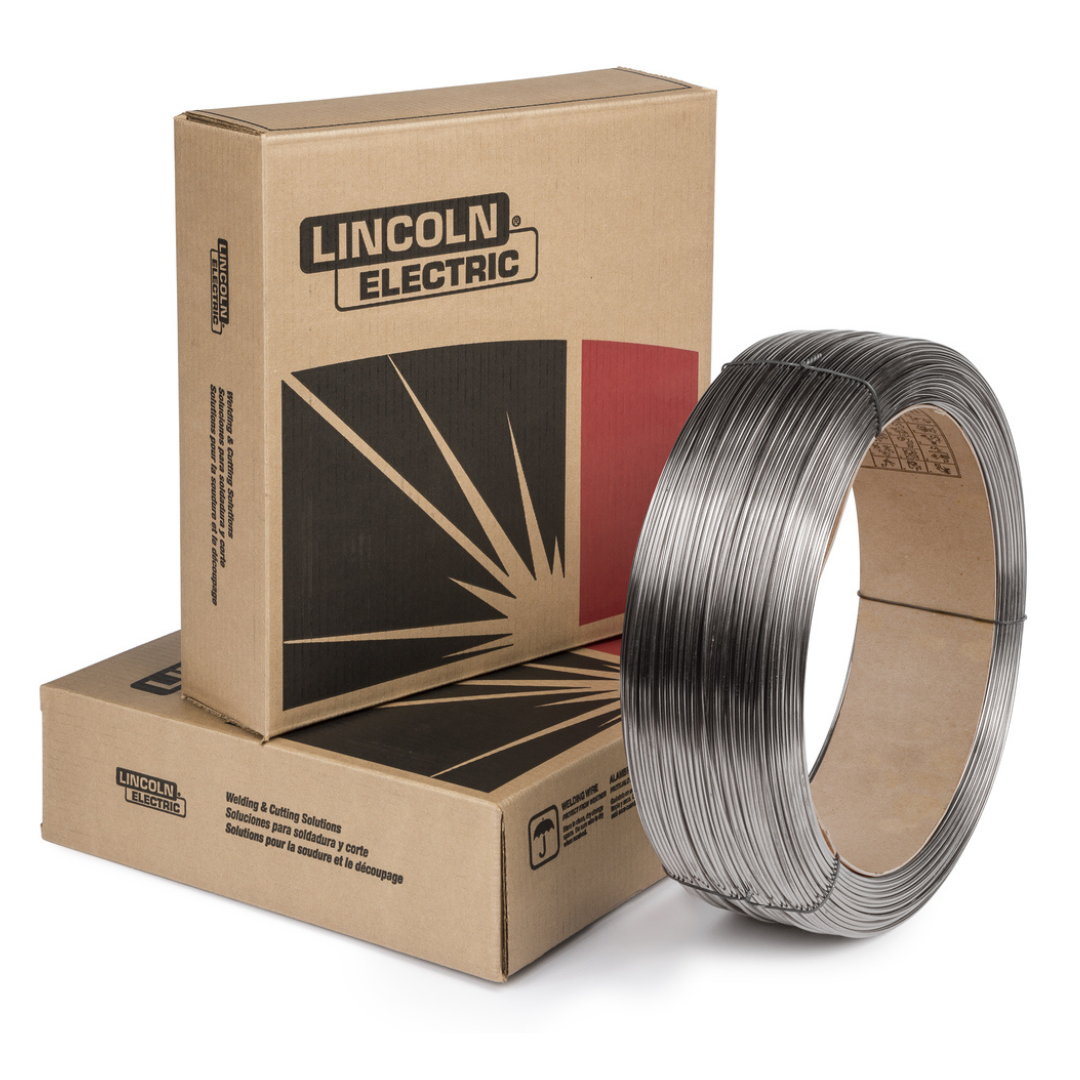

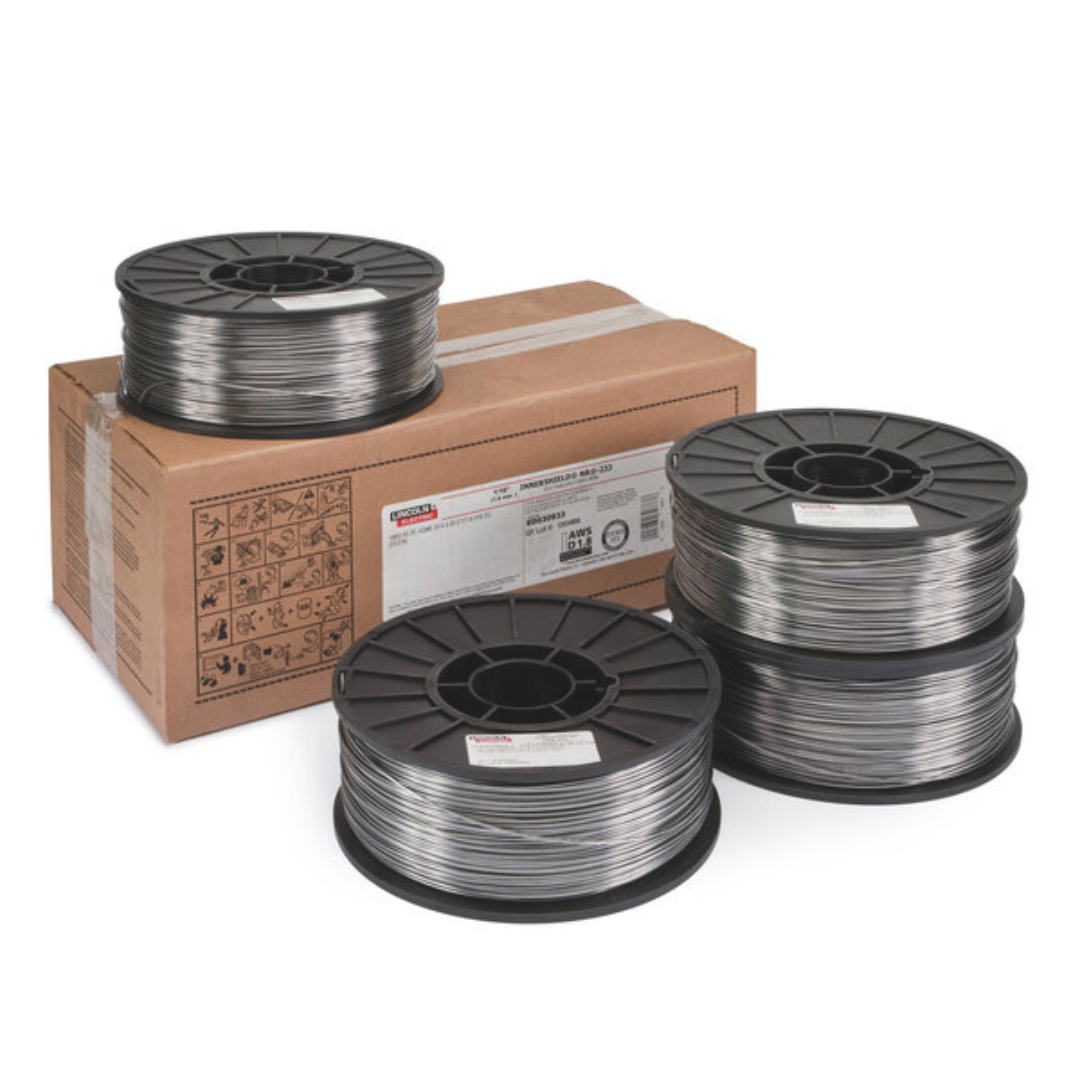

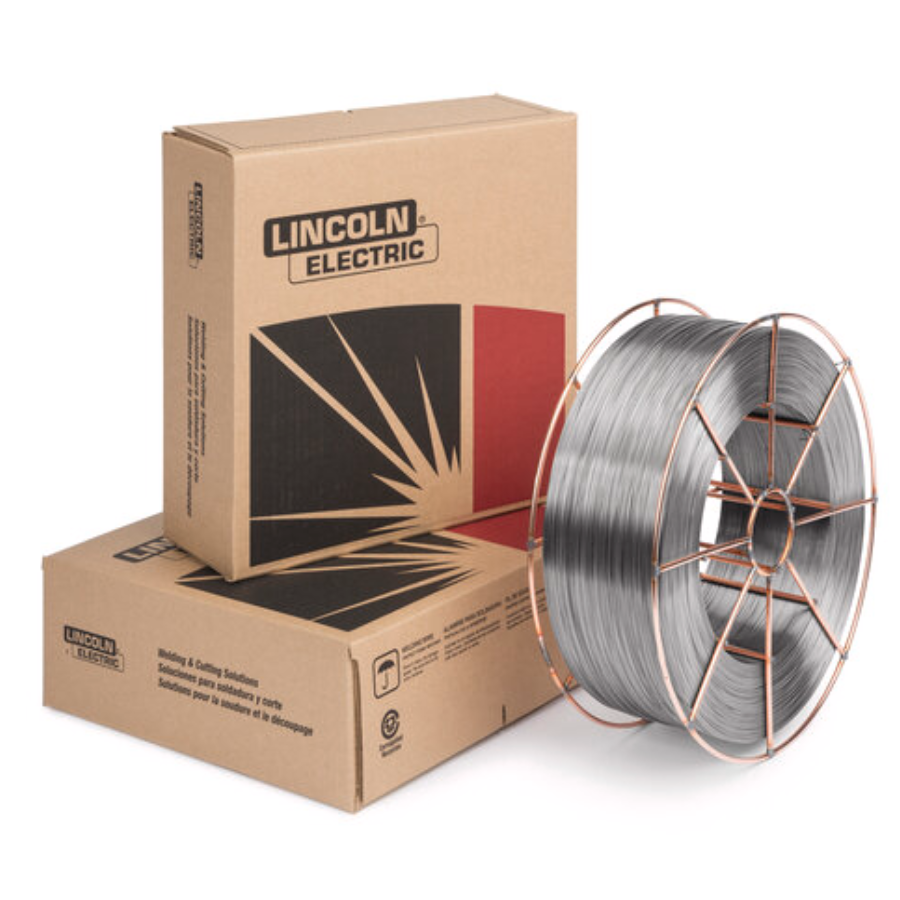

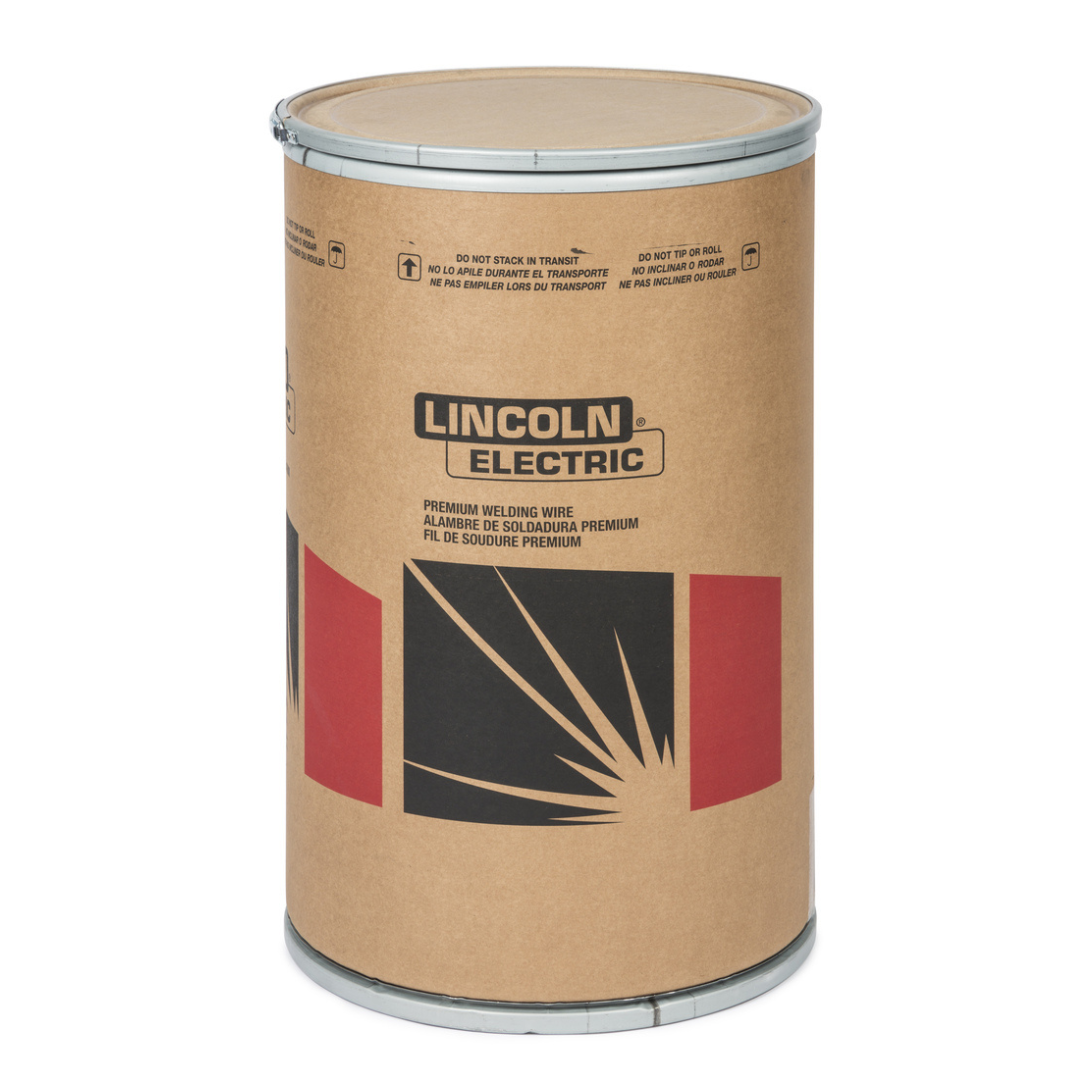

        Spool Size	15 lb. Spool (8" Spool), 33 lb. Spool (12" Spool), 60 lb Coil, 600 lb Drum
        Wire Diameter	0.045" (1.2 mm), 0.052" (1.3 mm), 1/16" (1.6 mm)
