Lincoln Electric Magnum® SG Spool Gun for PowerMIG 200 and 215





The Magnum® SG – a lightweight, well balanced semiautomatic spool gun designed for easy and reliable aluminum wire feeding with a variety of CV power sources and engine-driven welders. Rated 250 amps @ 60%, the Magnum® SG features a generous 25 ft (7.5 m) gun cable and integrated wire feed speed control in the handle to cut your trips back to the power source.

Easy to set up, operate and maintain. . . the Magnum® SG is a great addition to your welding tool set.

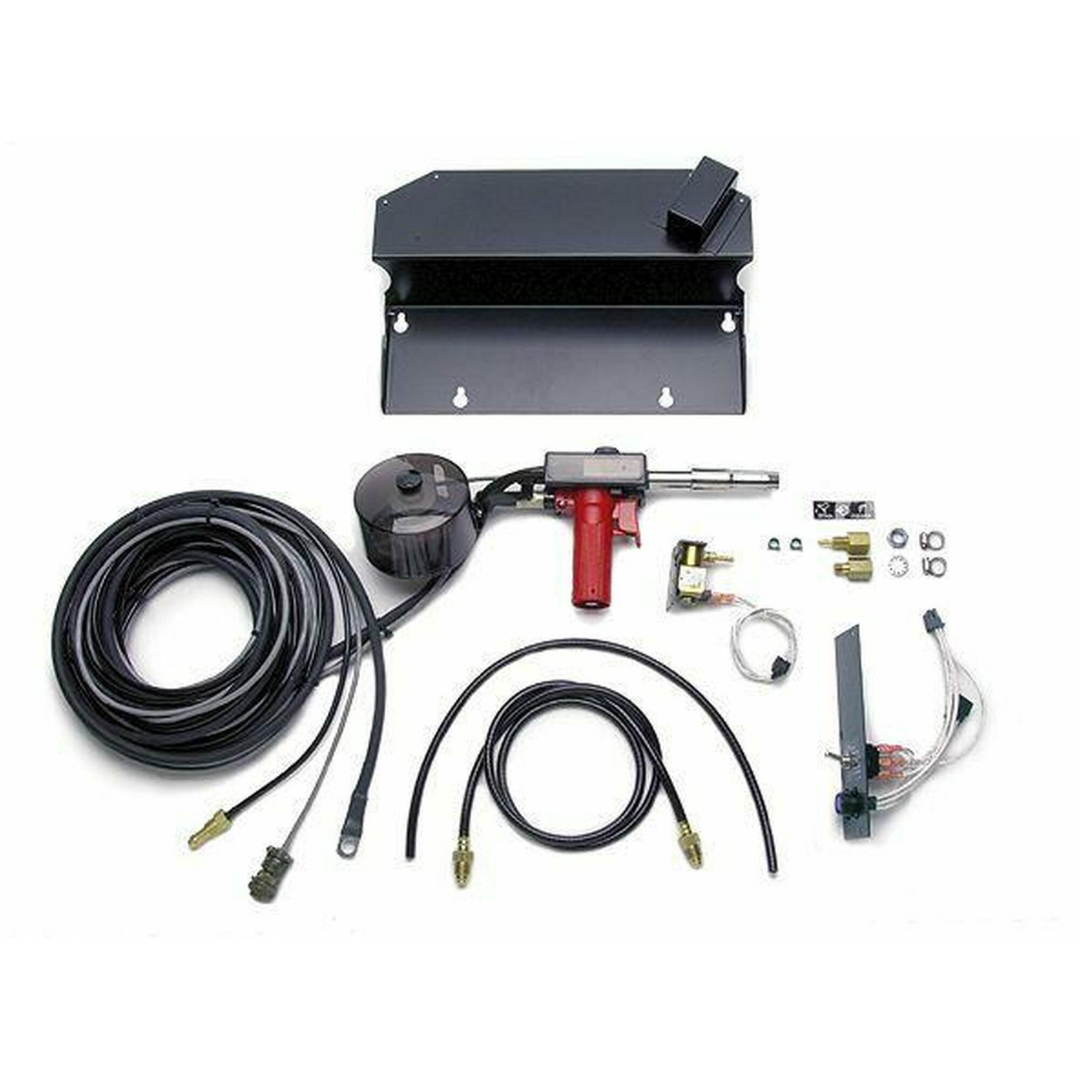

The K1809-1 kit includes the K487-25 Magnum 250SG Spool gun and the adapter kit for connecting the spool gun to the Power MIG 200.

The Adapter Kit provides toggle switch selection between the machine’s use with its feeder gun or thes pool gun for same polarity welding with different wire and gas processes.

The kit includes a spool gun adapter module assembly with a single connecting plug and trigger switch, arear gas inlet, fitting hose, solenoid valve assembly, and mounting hardware with installation and operation instructions

• Large Easy-Grip Handle.

• Sizable Trigger is easy to use with gloved hands.

• Remote Wire Speed Control reduces trips to the welding power source.

• Clear Spool Gun Body Cover makes it easy to check the wire drive path.

• Gas Nozzle is built to stand up to rugged use.

• Clear Electrode Wire Spool Cover allows you to check remaining wire at a glance.

• Generous 25 ft. (7.5 m) Gun Cable Assembly allows you to work a significant distance from your welding power source.

• Reliable Feeding of Aluminum Wire.

• What s Included?

  • K487-25 Magnum SG Spool Gun with 25 ft. (7.5 m) gun cable and .035 (0.9 mm) contact tip installed.
  • Package of 6 contact tips – 2 each – .030 (0.8 mm), .035 (0.9 mm) and 3 64 (1.2 mm).
  • 5 64 (2.0 mm) Allen Wrench
  • Operating Manual

  • The Magnum SG Control cable has a 6-Pin Plug. K2445-1 Adapter must be used when connecting to 7-Pin machines such as the PowerMIG 255, 256, 260 and 360MP

    User Manual
