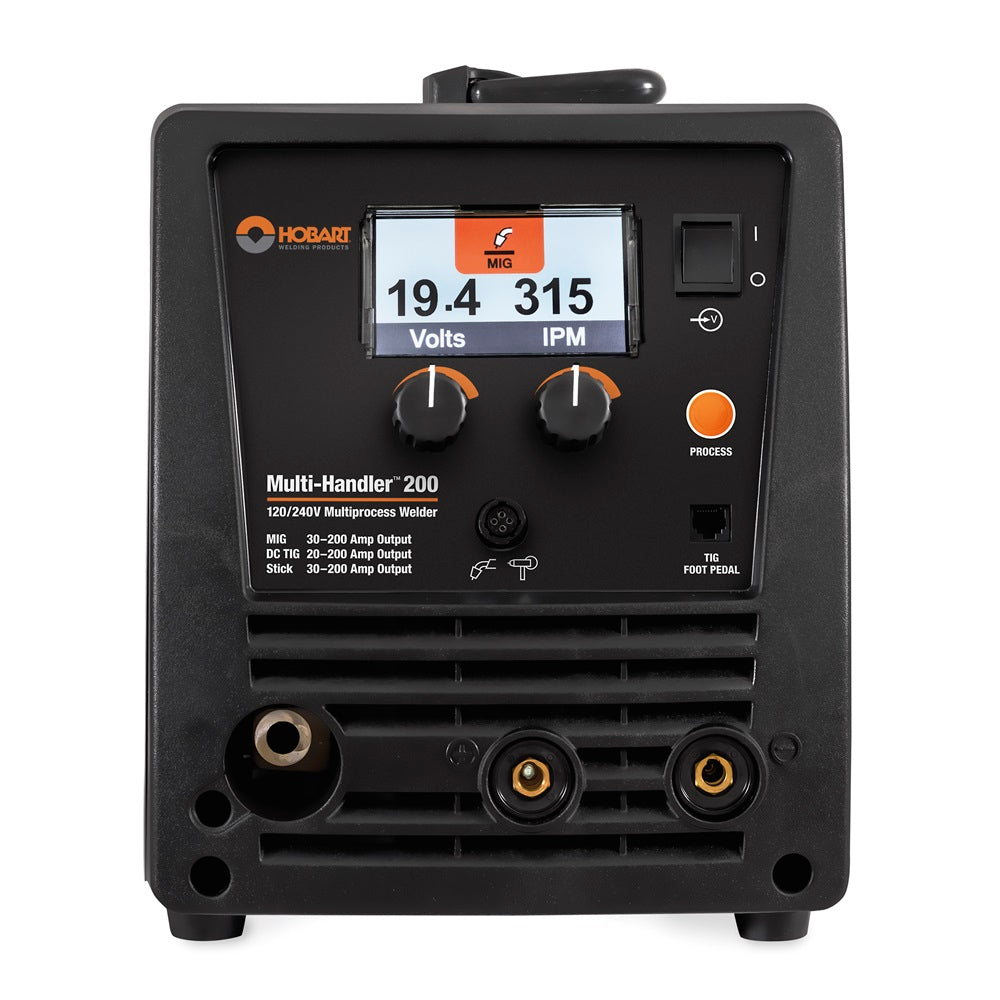

Hobart Multi-Handler 200 Multiprocess Welder

Multiprocess capabilities in a lightweight, versatile machine

Delivering 200 amps of output, the Multi-Handler 200 is capable of MIG, flux-cored, DC TIG and stick welding, giving you the flexibility to tackle many projects.

It can MIG and stick weld up to 3 8-inch material and TIG weld up to 3 16 inch. The color LCD makes setup and changeover easy.

Connect the appropriate accessory for the process, change polarity if needed, select the process and dial in your parameters. The parameter chart inside the door provides starting parameters for you to use.

The Multi-Handler 200 has multi-voltage plug (MVP) technology so it can be used on either 120 or 240 volt input power

Product Name Part Number		Hobart Multi-Handler 200  500578
Welding Processes		MIG (GMAW) Flux-cored (FCAW) AC DC TIG (GTAW) Pulsed TIG (GTAW-P) DC stick (SMAW)
Input Voltage		120-240V 1Ph
Welding Output Amps		MIG: 30–200 A AC DC TIG: 20–200 A DC stick: 30–200 A
Output Current		DC – CC CV
Aluminum TIG		❌
Foot Pedal Compatible		✔️
Dimensions		H: 13.4 in. (340 mm) W: 10.6 in. (270 mm) D: 20.8 in. (528 mm)
Weight		39 lb
Warranty		3-Year Parts & Labour

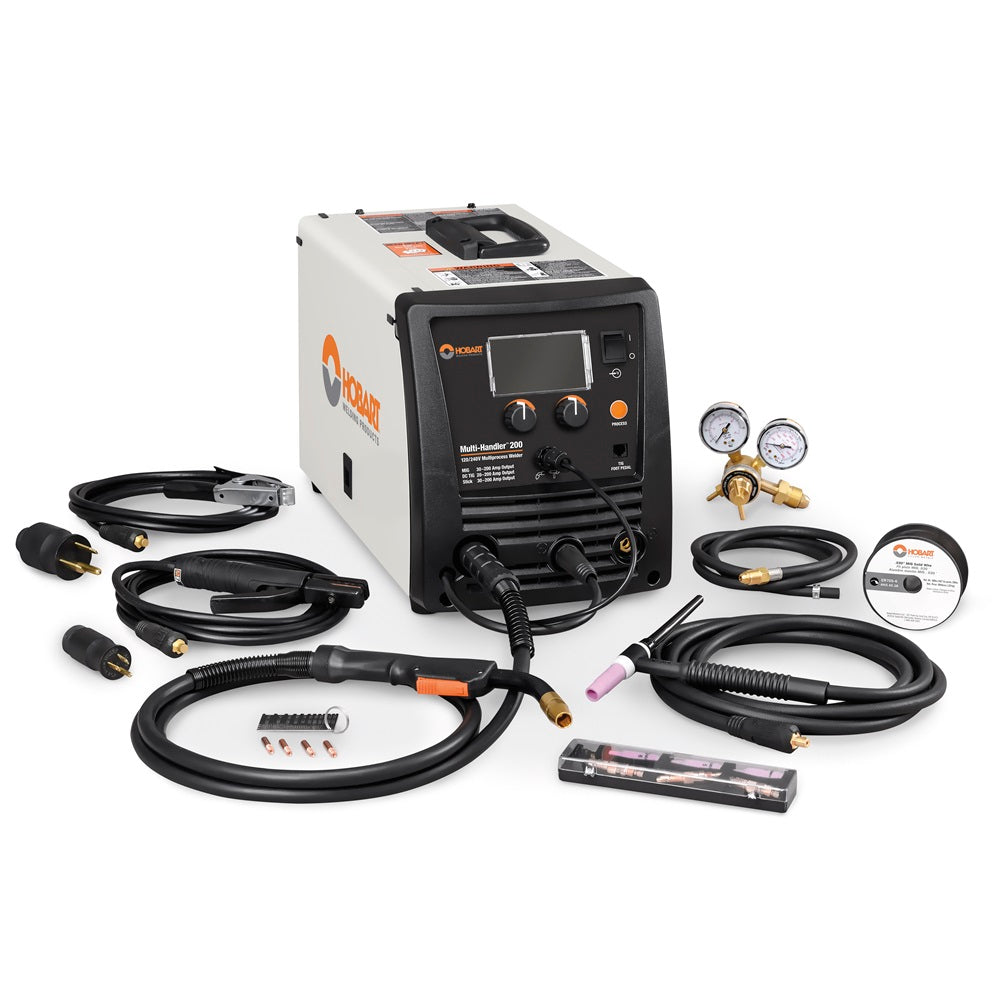

Hobart Multi-Handler 200 package comes with:

• MIG gun with 10 ft. (3 m) cable
• Electrode holder with 10 ft. (3 m) cable
• TIG torch with 12.5 ft. (3.8 m) cable
• Work clamp with 10 ft. (3 m) cable
• Power cord with 5-15P (120 V, 15 A) and 6-50P (240 V, 50 A) MVP™ plugs
• Built-in gas solenoid valve and dual-gauge regulator with gas hose
• Extra .030 and .035 in. (0.8 and 0.9 mm) contact tips
• Quick Select™ drive roll for .024 in. (0.6 mm) or .030 .035 in. (0.8 0.9 mm)
  solid wire, and .030 .035 in. (0.8 0.9 mm) flux-cored wire
• Sample spool of .030 in. (0.8 mm) solid wire
• Insulator, nozzles (#4, #5, #6), collet, collet body, electrode with 1 16 and
  3 32 in. tungsten
• Material thickness gauge

• Full Product Data Sheet
