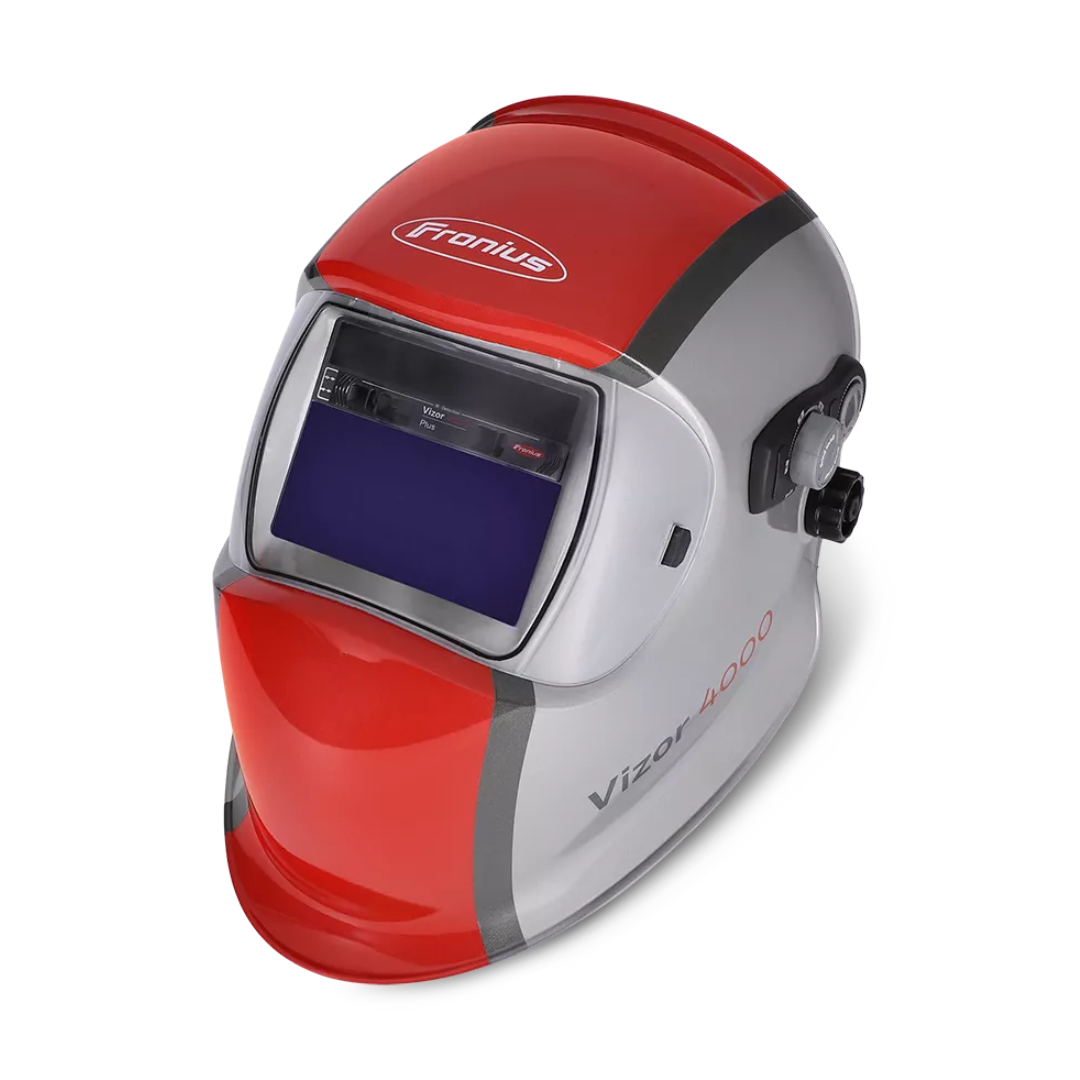

Fronius Vizor 4000 Plus Welding Helmet



As well as grinding mode, a large field of vision, real-colour display, sensor slide and its low weight, the Vizor 4000 Plus also impresses with numerous other advantages: these include the unrivalled light auto-darkening filter cartridge, that in light mode with protection level 2.5 offers a view that is up to 400% better than with an ordinary automatic welding helmet. This means the helmet is also ideally suited to grinding work.

• Realistic colour perception – A specially developed UV IR filter allows for realistic colour perception and brings colour into the world of the welder.

• Perfect vision for grinding work and operations scheduling – The auto-darkening filter cartridge with a level of protection of 2.5 in light mode redefines visibility conditions for the welder. This makes it easier to navigate the working environment during grinding work and when carrying out follow-up inspections on the weld seam.

• Ideal for overhead applications – Thanks to the smoke and particulate repellent design, the welding helmet is well suited for use in overhead applications.

• Technical Specs

  • Levels of protection: 2,5 (light condition), 8–12 (dark condition)

  • Sensitivity: Seamlessly adjustable, with “super high” sensitivity

  • Eye protection: Ultraviolet infrared protection: maximum protection across all levels of protection

  • Switching time from light to dark: 0,100 ms at room temperature 0,070 ms at 55°C

  • Switching time from dark to light: 0,1–2,0 s (dimming function)

  • Classification according to EN379 Optical class: 1 1 1 2

  • Weight: 0,5 kg 1,1 lb

  • Part No. 42,0510,0230

  • Download Brochure | Link To Replacement Parts
