Flange Wizard Magnetic Circle Layout & Burning Guide

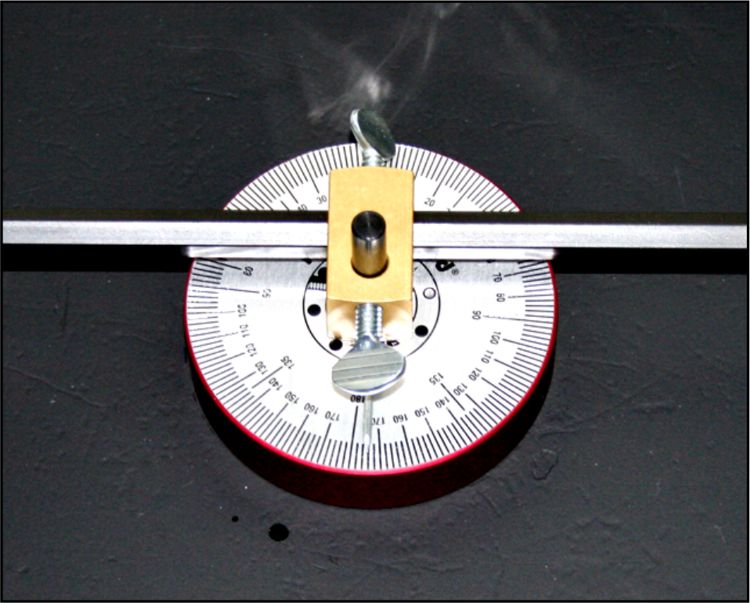

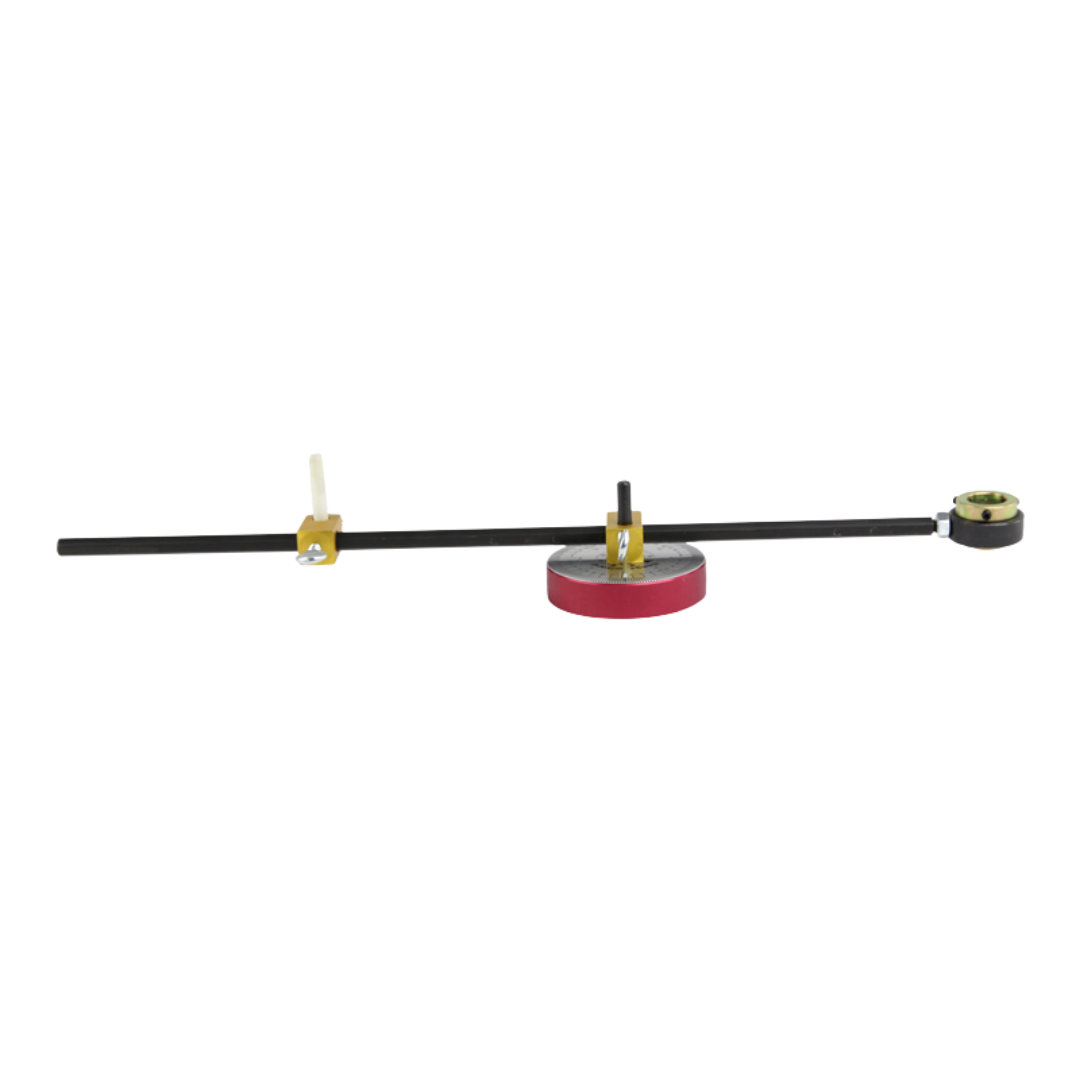

The Magnetic Circle Layout & Burning Guide is a circle layout tool with sliding soapstone holder and 360° scale on the magnetic base. It will cut circles up to 30” in diameter.

• Bolt circles, hole locations, baffle plate placement, and circle sectioning for any number of reasons is a snap with Flange Wizard’s layout scale and sliding soapstone holder.
• As a circle burning guide, use this same tool to cut a round plate; simply place the sharpened pin of the layout tool into your center punch mark and let the magnet slide down to sit firmly on the work surface.
• The magnet is strong enough to support the weight of your torch, which frees your hands for more cutting control.
• Sliding soapstone holder intended for use with round soapstone
• Bushing I.D is 41 64″ (.640)
• It is recommended the magnetic base not be used while cutting holes smaller than 8 dia. Holes as small as 4 may be cut with base removed.
• Manufacturer part number: 28439
