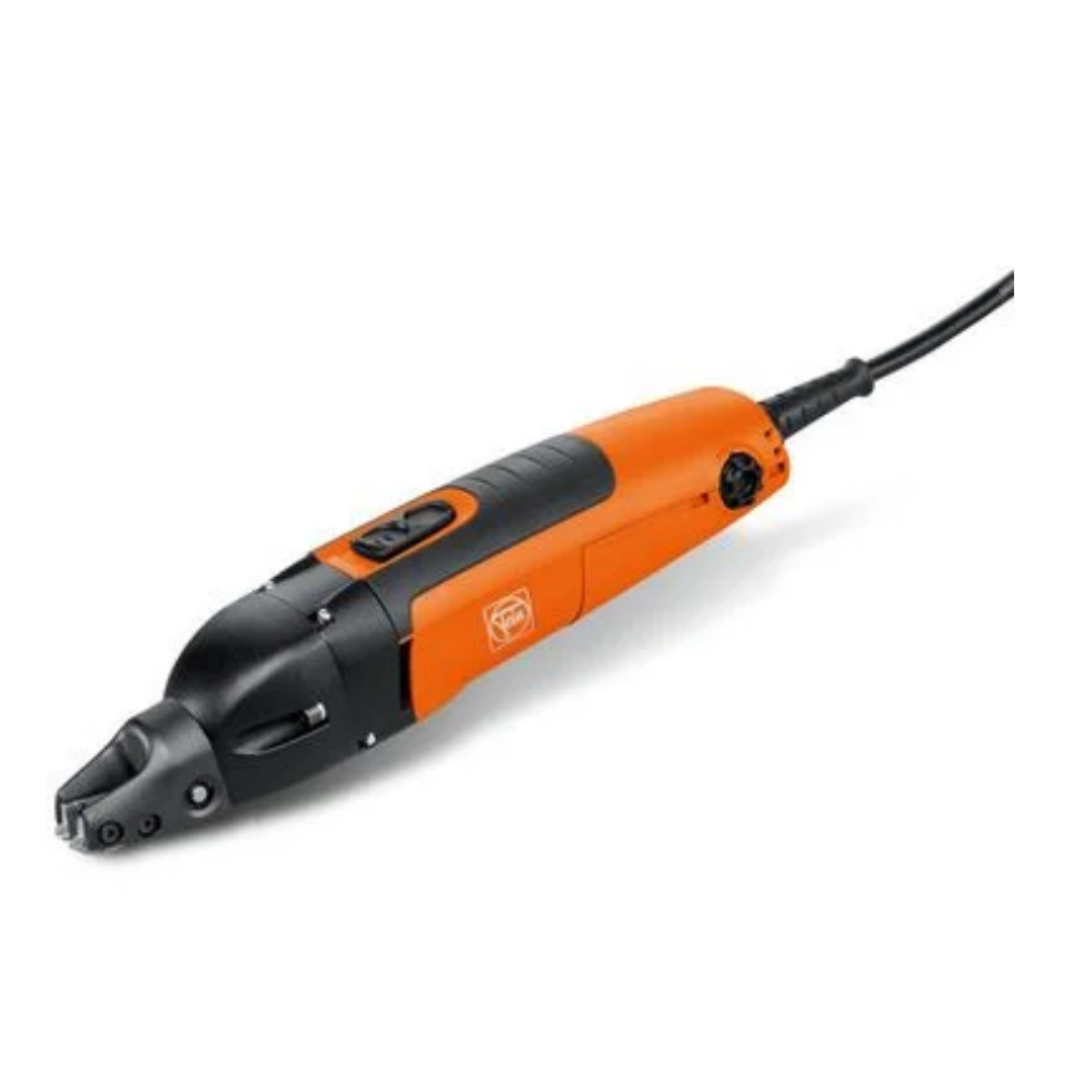

FEIN BSS 1.6 E Slitting Shear up to 16 gauge

Features:

• Rapid performance due to excellent view of the cutting line through the open-front cutting head.
• Left and right curve cuts and distortion-free cutting possible with one continuous chip.
• QuickIN for rapid, tool-free blade changing, with no further adjustment required.
• Excellent ergonomics and low weight.
• 16 ft. [5 m] cable.
• Manufacturer Part No. 7 230 31 61 09 0

• Items Included:

  • (1) cutting blade, straight (31308150009), mounted, up to 1.6 mm
  • (1) pair of dies (31308153014), mounted
  • (1) allen key 2,5 mm

  • Specifications:

    Power consumption		350 W
    Power output		210 W
    Strokes		2,100 – 4,500 spm
    Cutting speed		20 [6] – 33 [10] ft min[m min]
    Steel 58,000 lbf in²		1 16 [1.6] in[mm]
    Steel 87,000 lbf in²		3 64 [1.2] in[mm]
    Steel 116,000 lbf in²		3 64 [1] in[mm]
    Non-ferrous metals up to 36,000 lbf in²		3 32 [2] in[mm]
    Cutting width		3 16 [5] in[mm]
    Radius of smallest curve		3-1 2 [90] (1-1 4 [30] )¹ in[mm]
    Immersion dia.		1 2 [15] (1 4 [8] )¹ in[mm]
    Cable with plug		16 [5] ft[m]
    Weight		3.31 lbs



    Full Product Data Sheet
