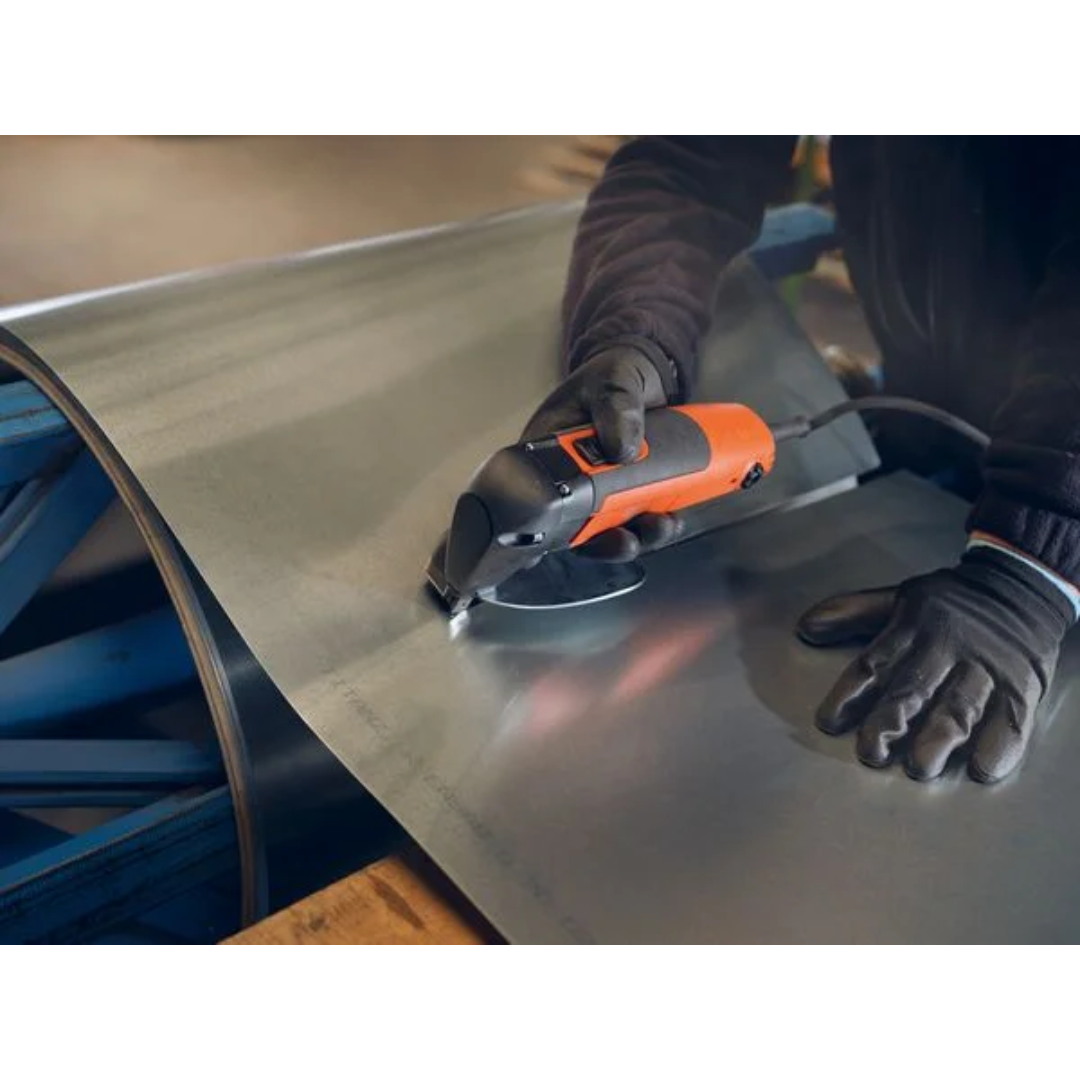

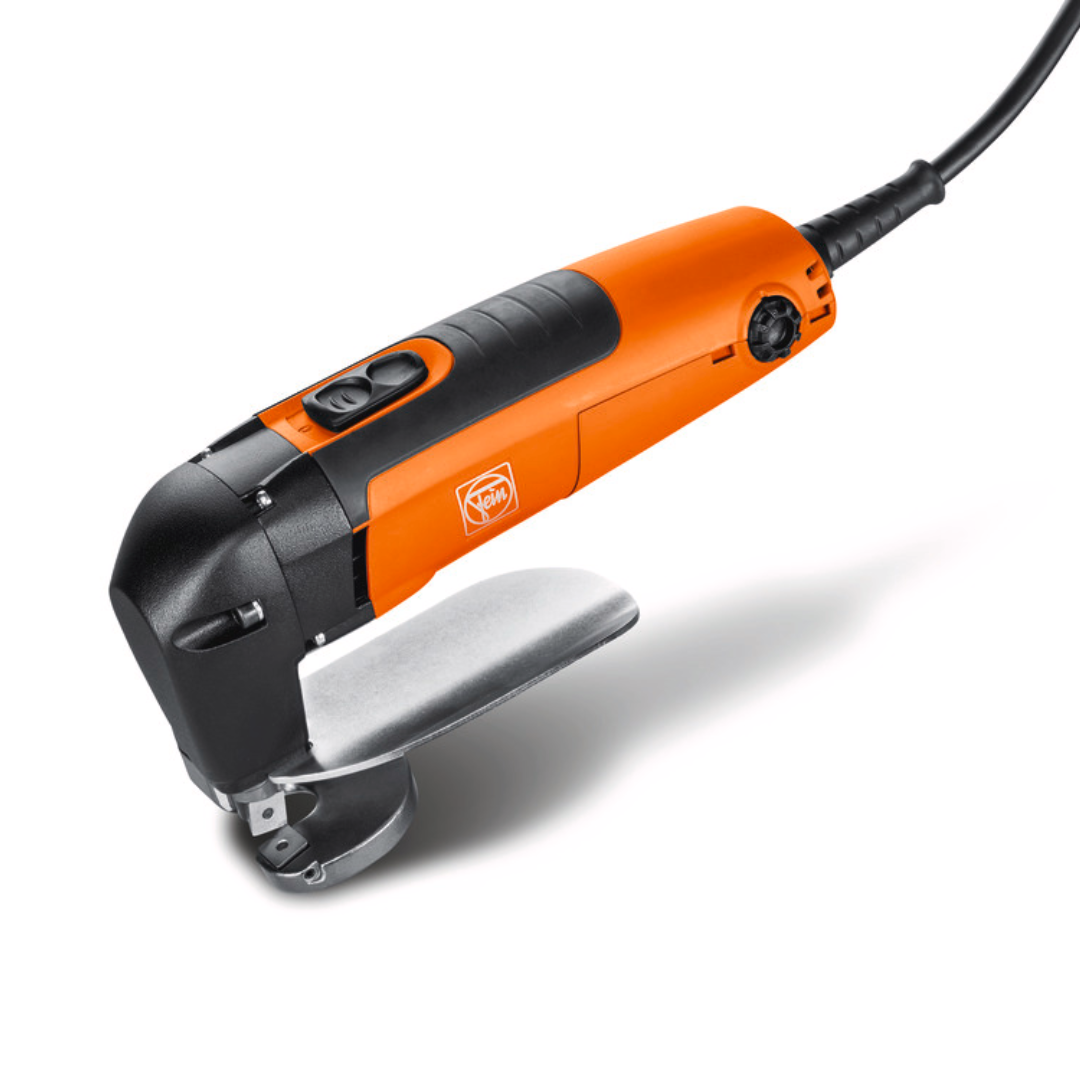

FEIN BLS 1.6 E Sheet Metal Shear up to 16 Gauge

Compact and rapid nibbler for corrugated sheet metals

FEIN sheet metal shears offer precise, straight cuts with minimal effort and time. These tools ensure efficiency in cutting large sheets of metal, reducing manual labor and increasing productivity. Additionally, they provide consistent results, contributing to the overall quality and accuracy of metalworking projects.

Features:

• Outstanding ergonomics and compact design for optimal mobility of the shear.
• Good curve precision with low sheet-metal distortion.
• Indexible cutting blades with four sides for clean and burr-free cutting with low operating costs.
• Perfect for trimming and cutting.
• Unrestricted view of the cutting line.
• Motor with outstanding performance and durability.
• 16 ft. [5 m] cable.
• Stainless steel up to 19 gauge [1.0 mm]
• Manufacturer Part No. 7 230 34 61 09 0

• Items Included:

  • 1 pair of blades (31308072000), mounted
  • 1 hand guard, mounted
  • 1 allen key 2 mm
  • 1 Allen key 1 8 [3] in[mm]

  • Specifications:

    Power consumption		350 W
    Power output		210 W
    Strokes		2,300 – 4,800 spm
    Cutting speed		26 [8] – 39 [12] ft min[m min]
    Steel 58,000 lbf in²		1 16 [1.6] in[mm]
    Steel 87,000 lbf in²		3 64 [1] in[mm]
    Steel 116,000 lbf in²		3 64 [1] in[mm]
    Non-ferrous metals up to 36,000 lbf in²		3 32 [2.5] in[mm]
    Radius of smallest curve		1 2 [15] in[mm]
    Cable with plug		16 [5] ft[m]
    Weight		3.75 lbs



    Full Product Data Sheet
