FEIN 1.5 JME MAGSPEED 150 MAG Drill

Endurance magnetic base drill up to 1-1 2 in [38 mm]

Small, lightweight 1-speed Endurance magnetic core drill with unique performance and service life, even under the most demanding conditions in workshops and on construction sites

Features:

• Increase productivity by up to 50% with excellent results and fast holemaking. Up to 60 holes are possible compared to previous models.
• Outstanding, previously unimaginable cutting performance thanks to a stable speed and torque curve with cutting speeds of up to 230 ft min [70 m min] – ideal for CARBIDE ULTRA and CARBIDE ULTRA SPEED coated annular cutters.
• Unique durability for up to 240 000 drilled holes thanks to an extremely low-wear tool concept with brushless 1,500 W FEIN PowerDrive and internal motor cord.
• Excellent access in tight situations due to the intuitive operating concept.
• A Convenient magnetic holding force indicator supports the safe positioning of the tool.
• Workplace Safety: Tilt sensor safety shutoff will shut down the drill in the event it should move or break free from the workpiece.
• Integrated coolant tank ensures high core drill tool life.
• Tool-free hand feed wheel can be mounted on either side.
• Highly visible and easy to understand motor and magnet switches.
• Storage for 5 mm Allen key directly on the tool.
• Manufacturer Part No. 7 273 24 61 09 0

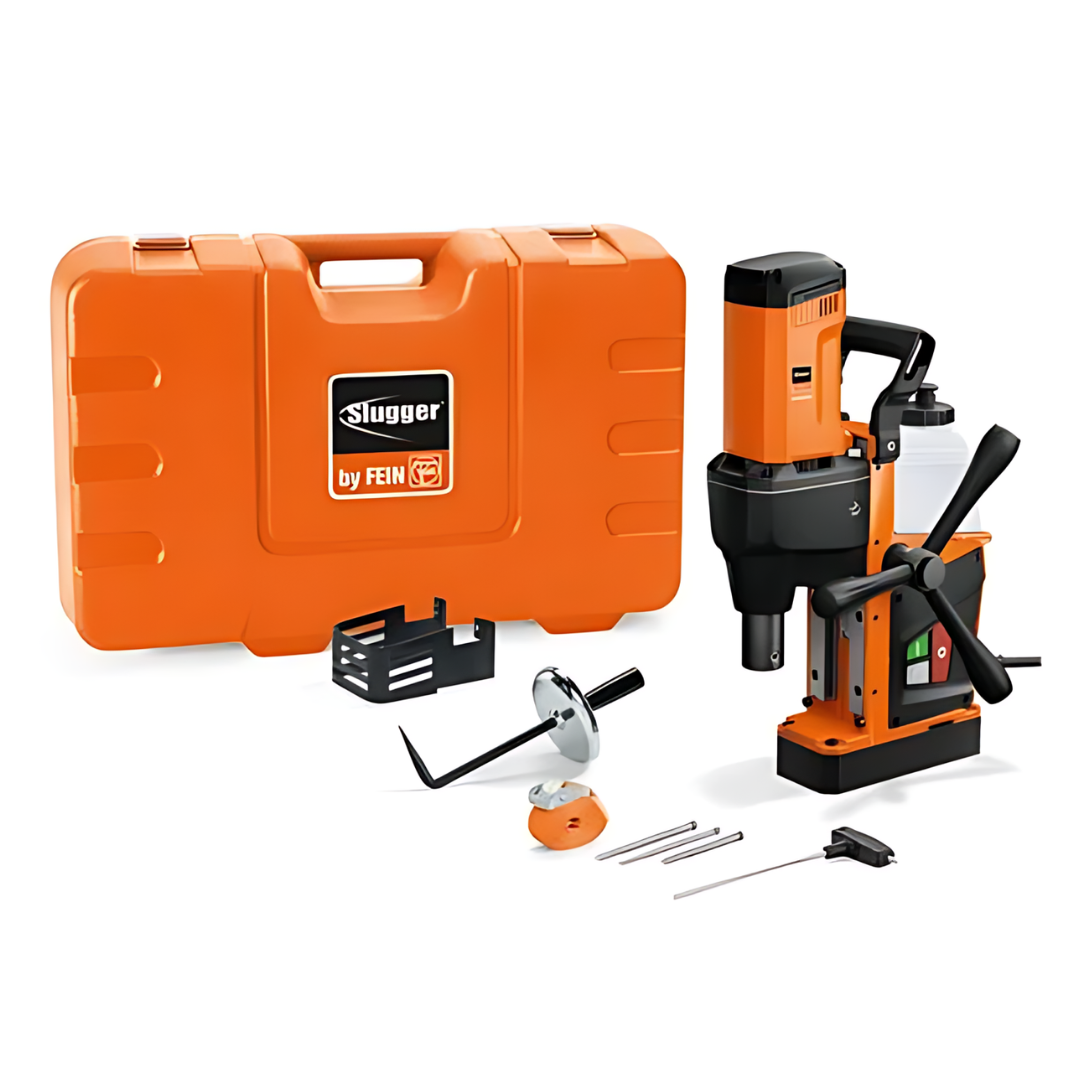

• Items Included:

  • (1) JME 150 Mag Drill w Coolant Tank & Safety Strap
  • (1) Carrying Case
  • (1) Chip Hook
  • (1) Centering pin dia. 1 4 x 3-9 16 [6.35 x 90] in[mm]
  • (1) Centering pin dia. 1 4 x 4 [6.35 x 100] in[mm]
  • (1) Centering pin dia. 3 16 x 4 [4.75 x 100] in[mm]
  • (1) Chip Guard
  • (1) Allen key 5 mm
  • (1) Hexagonal socket key with T-grip 5 mm

  • Click Here to shop for Annular Cutters

    Specifications:

    Power consumption		1,500 W
    Power output		1,500 W
    Load speed: 1st gear		620 rpm
    No-load speed: 1st gear		620 rpm
    Cutter Holder		3 4 Straight Shank
    Carbide cutter max. dia.		1-1 2 [38] in[mm]
    HSS cutter max. dia.		1 [25] in[mm]
    Cutter max. drilling depth		2 [50] in[mm]
    Max. countersinking dia.		2 [50] ** in[mm]
    Cutter holder		3 4 straight shank
    Stroke		4-3 16 [107] in[mm]
    Cable with plug		13 [4] ft[m]



    Full Product Data Sheet
