FEIN 1-1 4 ShortSlugger II MAG Drill

Model No. 72709461090

Small, extremely lightweight 1-speed Endurance magnetic core drill with basic functionality for core drilling on the construction.

Features

• For tough use, thanks to high-quality workmanship and internal motor cable routing.
• Uncompromising service life through extra-durable gearbox design with up to 400 hours of operation time.
• Lightweight with FEIN high-performance motor and high torque for all core drilling work.
• Excellent price performance ratio.
• Easy to read convenient magnetic holding force display.
• Motion sensor.
• Internal cooling.
• High magnetic holding force.
• Hand feed wheel can be mounted on either side.
• Good accessibility in cramped operating situations.
• Personal safety switches.

• Click Here to shop for Annular Cutters

  Technical Data

  Power consumption		1,200 W		Cutter max. drilling depth		2 [50] in[mm]
  Power output		770 W		Cutter holder		3 4 Weldon
  Full load speed		450 rpm		Stroke		3-9 16 [90] in[mm]
  No load speed		700 rpm		Magnetic holding force		2248 [10,000] lbs[N]

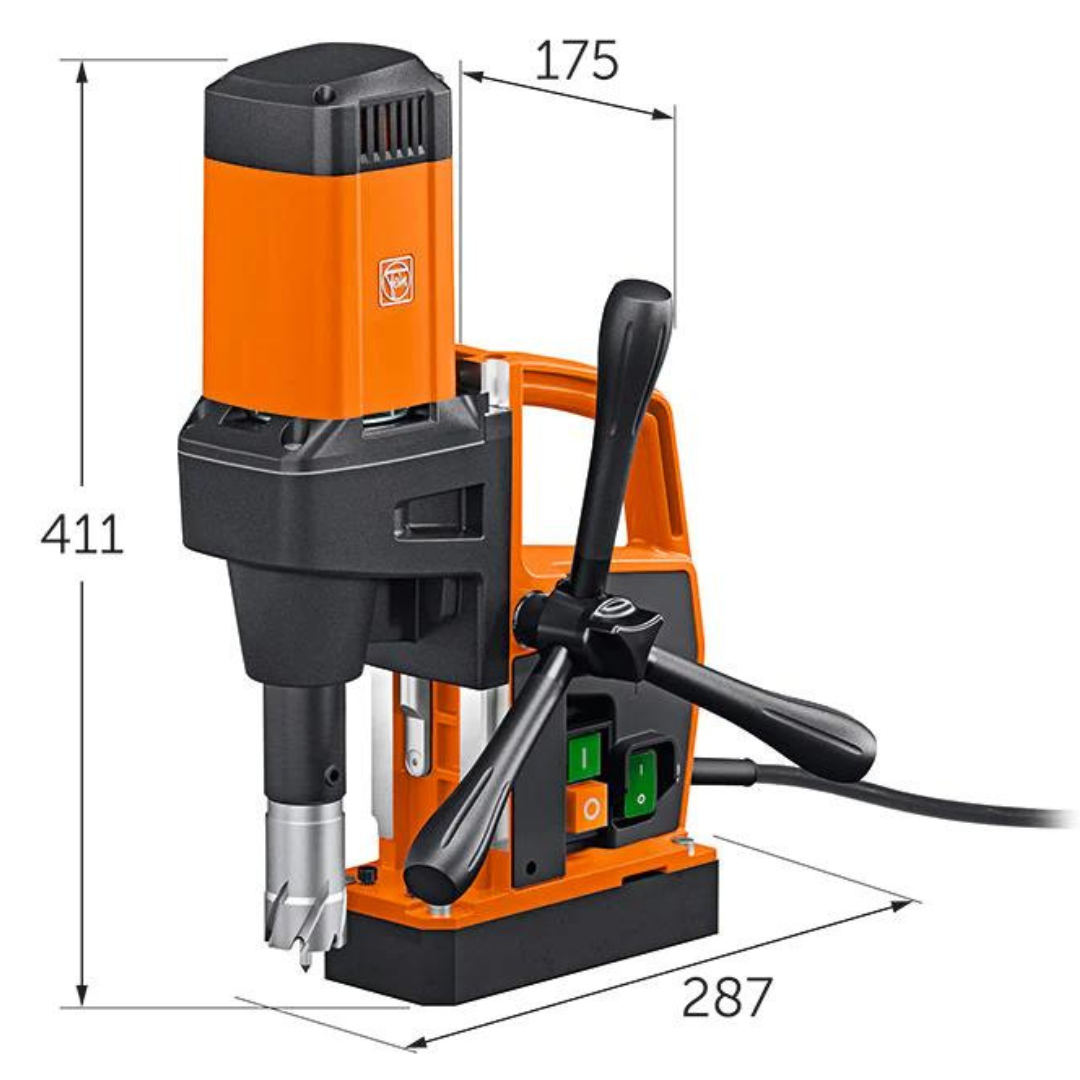

  Carbide cutter max. dia.		1-1 4 [32] in[mm]		Magnetic base dimensions		6-7 8 [175] x 3-1 8 [80] in[mm]
  HSS cutter max. dia.		1-1 4 [32] in[mm]		Cable with plug		9.8 [3] ft[m]
  Weight		23.81 [10.80] lbs[kg]

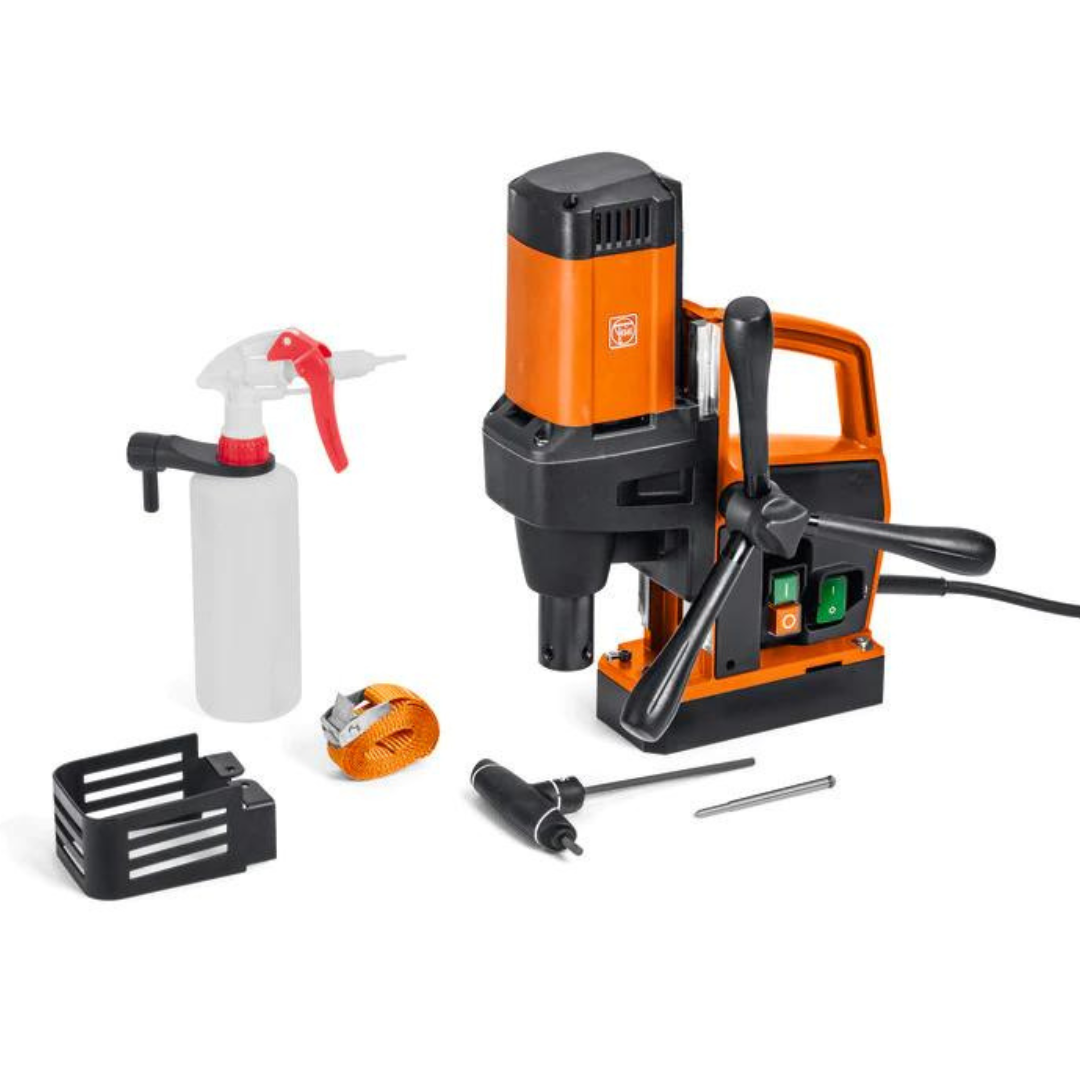

  Package Includes

  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 3 centering pins
  • 1 chip guard
  • 1 case

  • Full Product Data Sheet
