ESAB Spoolarc 86 ER70S-6 TIG Rod Online

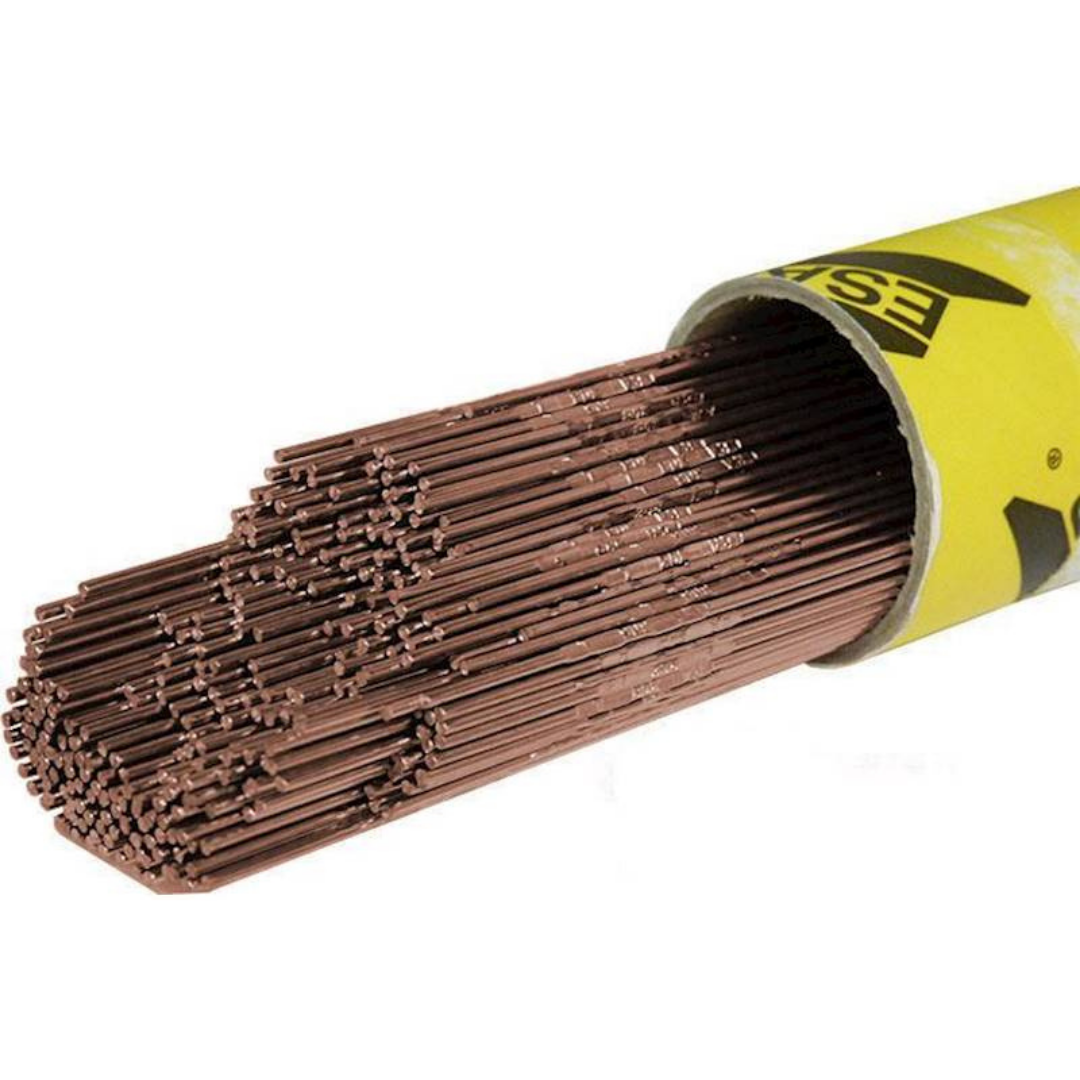

ESAB SPOOLARC® 86 ER70S-6 TIG Rod

Spoolarc 86 is a copper-coated TIG rod containing high levels of manganese and silicon. Spoolarc 86 is suitable for many carbon steel welding applications using the MIG Gas Metal Arc Welding (GMAW) process. The high levels of deoxidizers in Spoolarc 86 provide excellent tolerance of rust and mill scale. The high levels of manganese and silicon also provide excellent wetting action and a highly fluid weld puddle. Shielding gas choices for Spoolarc 86 in the GMAW mode are 100% carbon dioxide, argon carbon dioxide mixtures, argon oxygen mixtures, and other argon based mixed gas blends. Spoolarc 86 excels in HVAC duct work, heavy equipment fabrication, structural, and other general steel fabrication.

Industries Served:

• Automotive
• Mobile Equipment
• Industrial and General Fabrication
• Ship Barge Building

• Available Options:

  • 1 16 (1.6 mm) – 10 lb (4.54 kg) 36 – 1381F28
  • 3 32 (2.4 mm) – 10 lb (4.54 kg) 36  – 1381F20

  • 1 8 (3.2 mm) – 10 lb (4.54 kg) 36  – 1381F22

  • Classification:

    • AWS A5.18 : ER70S-6  CSA CAN CSA-ISO14341, B-G 49A 3C G6 (ER49S-6)
    • AWS A5.17 : EH11K

    • Product of USA

      Spoolarc 86 TIG Rod Data Sheet
