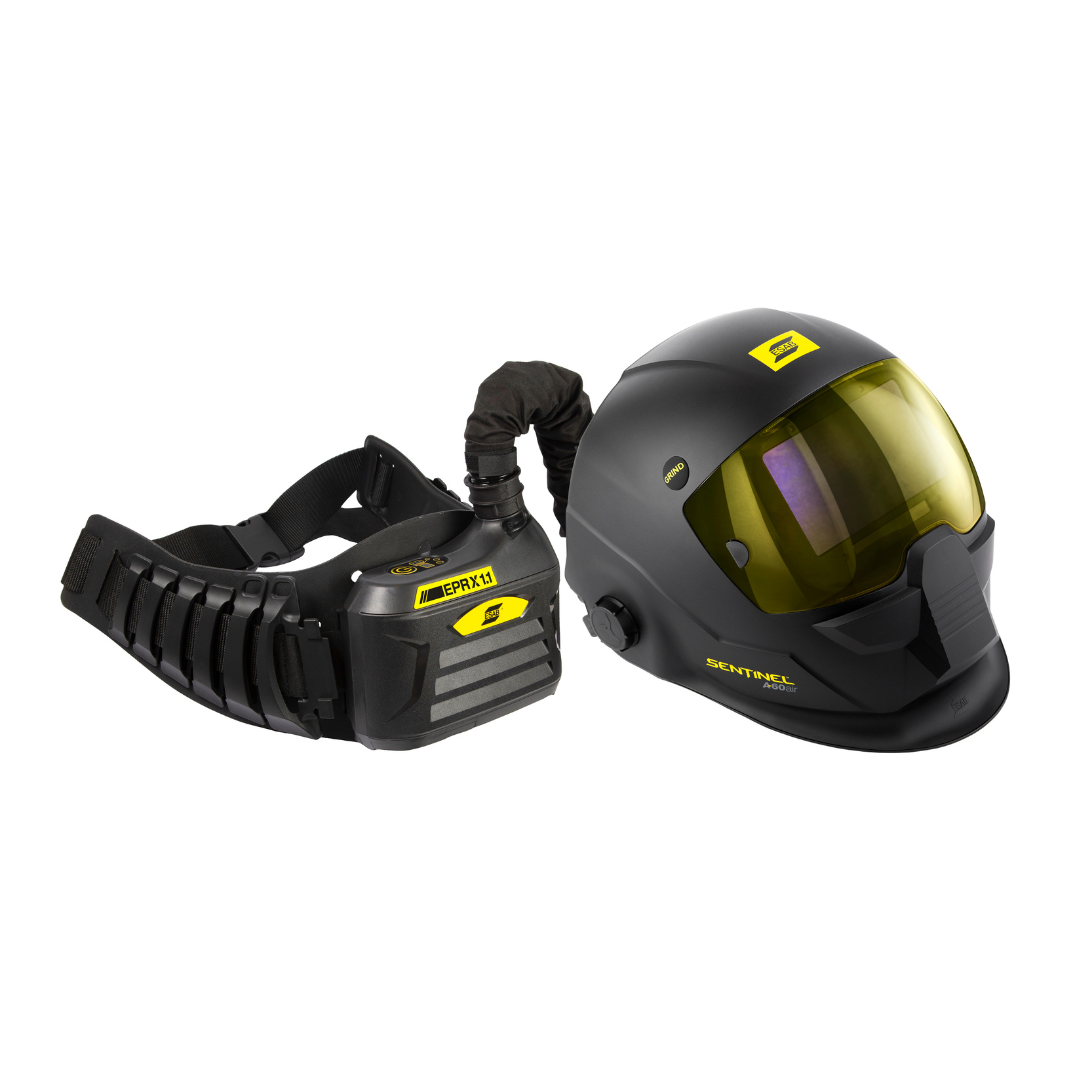

ESAB Sentinel A60 AIR PAPR Welding Helmet

The best selling Sentinel A60 from ESAB, is now available as a PAPR system to protect you from dangerous welding fumes.

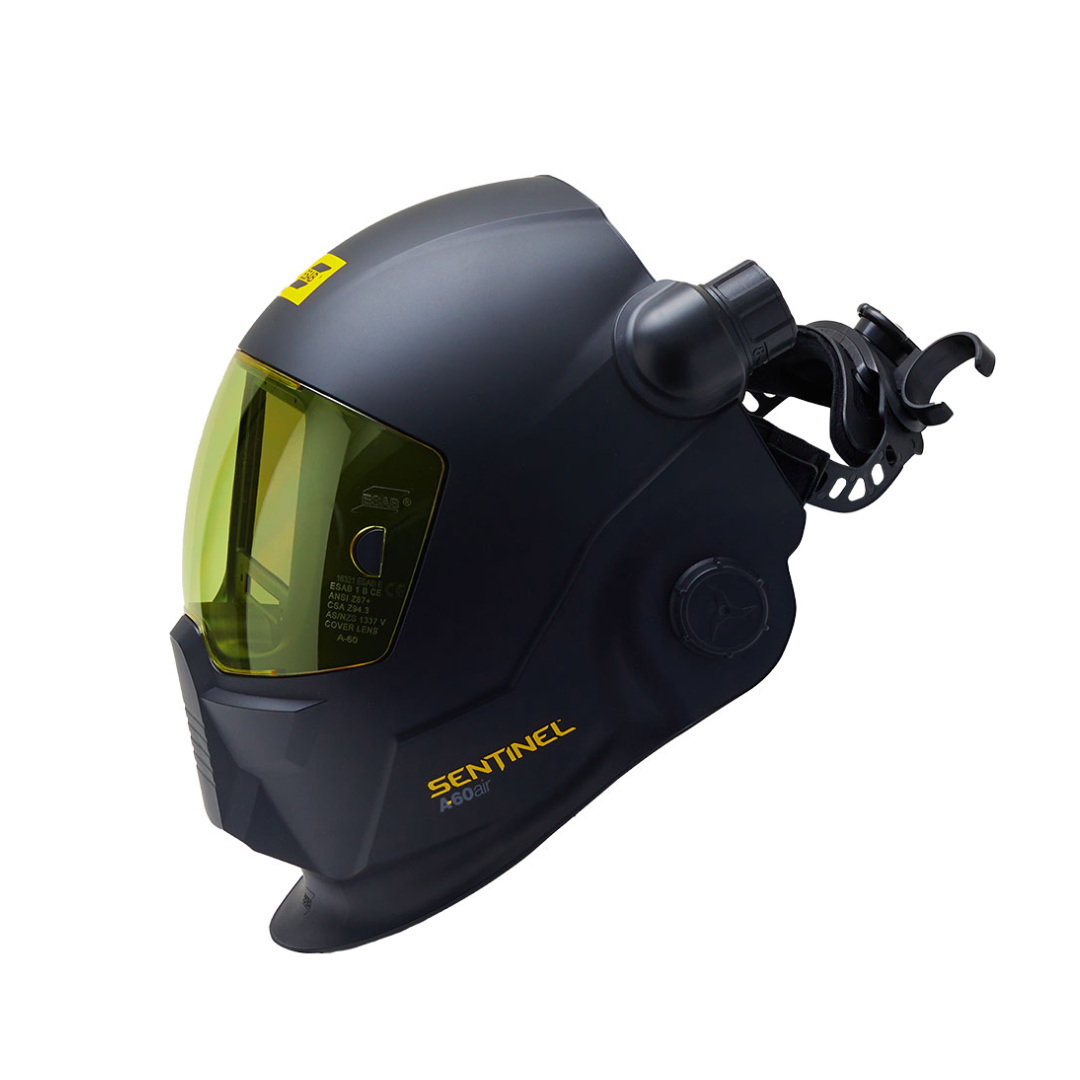

The Sentinel A60 Air welding helmet builds on the advancements of the standard Sentinel A60, taking your welding to the next level. A large panoramic view and
perfect 1 1 1 1 EN optical clarity provide an even wider view of the weld pool without any distortion.

The re-engineered auto-darkening filter lens (ADF) is 40% larger than the original A50 lens and features the new ESAB OpTCS™ broad-spectrum light control technology.  This delivers an enhanced True Colour view with reduced eye fatigue for the most demanding days on the job.  This technology also features 0.5 increment shade adjustment to give you more precise control of your welding shade and view of the puddle.

The signature shell design of Sentinel, fully adjustable Halo™ headgear, and external grind mode button complete the most comfortable, highest performance helmet ESAB has ever produced.

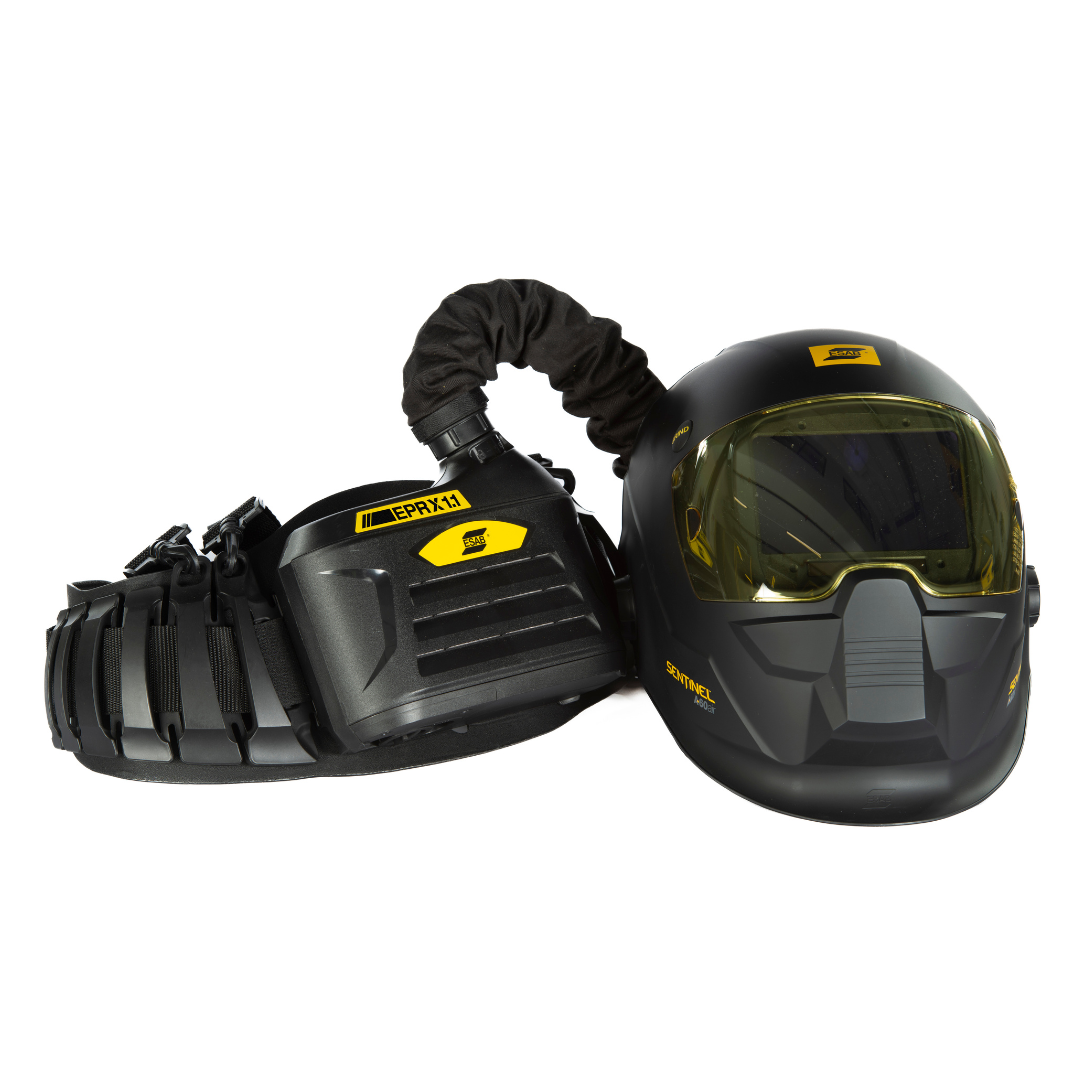

The ESAB EPR-X1 PAPR unit connects seamlessly with all current ESAB prepared-for-air welding helmets and provides advanced respiratory protection from harmful welding fume particulates. This PAPR is designed for applications ranging from occasional use to full-time industrial applications.

The EPR-X1 offers a robust, compact housing with a powerful blower to ensure maximum life and performance. Check your battery status, fan settings, and filter conditions at a glance with quick-access status LED lights. Additionally, the PAPR provides audible and vibratory alerts to notify the user of low airflow (indicating a needed filter change) and low battery conditions.

The EPR-X1’s turbo unit is controlled with easily-accessed push buttons allowing three airflow speed ranges of 170 190 220 l minute. The HEPA-quality, EN12941 TH-3P certified two-stage filter and spark arrestor are easily accessed through a removable front door.

Sentinel A60 AIR Features:

• Shade range: DIN 3 5–13, adjustable in 0.5 increments, and ADF a shade lock setting
• ESAB OpTCS True Color Lens Technology
• On-board memory for up to 9 settings
• Arc sensors: 4
• Fast switching time of 0.08 milliseconds
• Replaceable CR2450 battery
• Low battery, grind mode, and shade lock LEDs
• Part no. 0700600861

• ESAB EPR-X1 PAPR Features:

  • Compatible with all ESAB prepared for air helmets: Sentinel A-50; Savage A-40; G-30 40 50; F-20
  • User adjustable airflow 170 190 220 l min
  • Li-Ion battery pack (up to 10h duration @ 170 l min)
  • P3 filter and pre-filter
  • International intelligent charger (interchangeable pins)
  • Audio visual vibration blocked filter and low battery alarm
  • Part no. 0700500920

  • Specifications
    Viewing Area		118 x 71 mm (4.65 x 2.8 in.)
    Active Lens Shade		5–13 (Adjustable in 0.5 shade increments)
    Passive Lens Shade		3
    Power Supply		2 CR2450 batteries, replaceable
    Arc Sensors		4
    Switch Time (Light to Dark)		1 25,000 second
    Switch Time (Dark to Light)		Digitally adjustable from 0.1 to 0.9 second
    CE Optical Classification		1 1 1 1
    Standards and Certifications		CE: EN175; EN379; EN166 | ANSI: Z87.1 | CSA: Z94.3 | AS NZS 1338.1 | ISO 16321 +TIG This Products is NOT NIOSH Approved
    Weight		644 g (1.4 lbs)



    ESAB Sentinel A60 Fact Sheet | Sentinel A60 Replacement Parts

    Options	PAPR Helmet w/ EPR-X1 PAPR, PAPR Helmet Only
