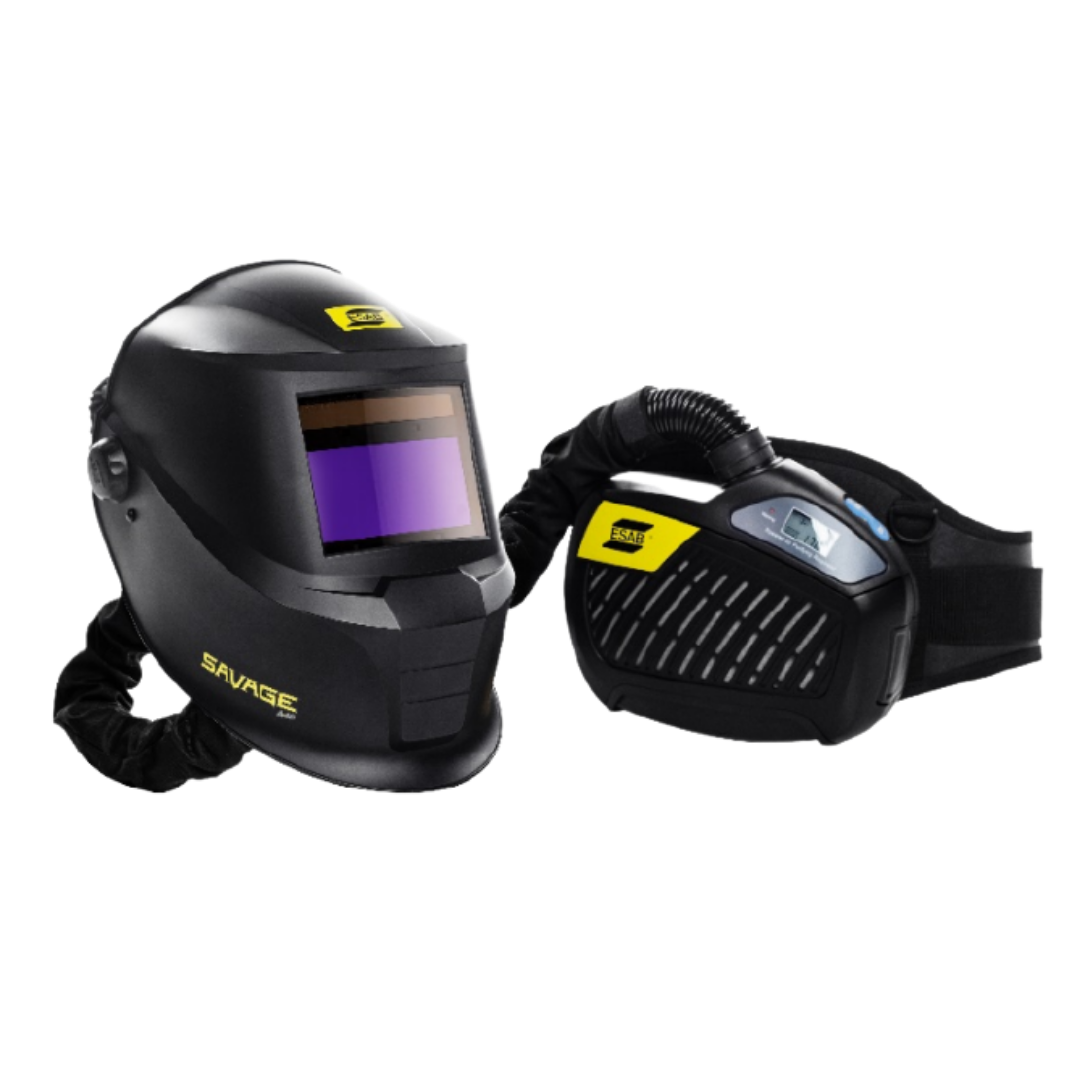

ESAB Savage A40 PAPR – Complete Kit



The Savage A40 PAPR pairs the advanced features of the Savage A40 welding helmet with a powerful PAPR system designed to filter 99.9% of fine particles from the air during routine procedures.

• NIOSH-approved PAPR filtration system delivers three setting adjustable flow from 170 to 230 liters per minute
• Convenient push-button interface with easy to read
• LCD display for PAPR adjustment
• High efficiency 2 stage filtration system with spark arrestor for added safety
• LCD display indicating fan speed, flow rate and battery charge level with additional audible alert for low battery
• High quality shielded air tube with simple connections
• Fully adjustable PAPR harness and multi-point helmet headgear adjustment for total comfort
• Four sensor ADF with adjustable shade, sensitivity and delay controls to dial in the precise darkness and reaction speed

• Specifications

  Lens Viewing Area		3.93 x 1.96 in. (100 x 50 mm)
  Lens Shade		DIN 4, Adjustable 9-13
  Lens Power Supply		Replaceable CR2450 battery with solar backup
  PAPR Power Supply		4400mAh rechargeable battery, low battery alert
  PAPR Airflow		Low: 170 lpm Medium: 200 lpm High: 230 lpm
  Filtration Efficiency		HEPA
  ADF Lens Sensors		4
  ADF Switching Time @ 23°C		0.07ms
  Lens Classification		1 1 1 2
  Standards		NIOSH, ANSI Z87.1, CSA Z94.3, CE EN379, EN175, & AS NZS 1338.1
  Weight		2.97lbs (1350g)

  Included in this Kit

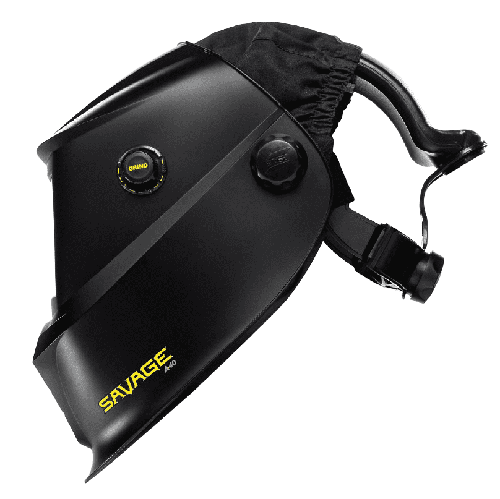

  • Savage A40 welding helmet
  • PAPR blower unit & breathing tube
  • Battery (2 each)
  • Main filter (2 each)
  • Pre-filter (6 each)
  • Inside Outside cover lenses (2 of each)

  • Battery charger
  • Waist belt w shoulder strap
  • Portable air flow tester
  • Spark arrestor for blower unit
  • Carrying bag that fits all accessories
  • ESAB Part Number: 0700002400

  • Download Catalogue
