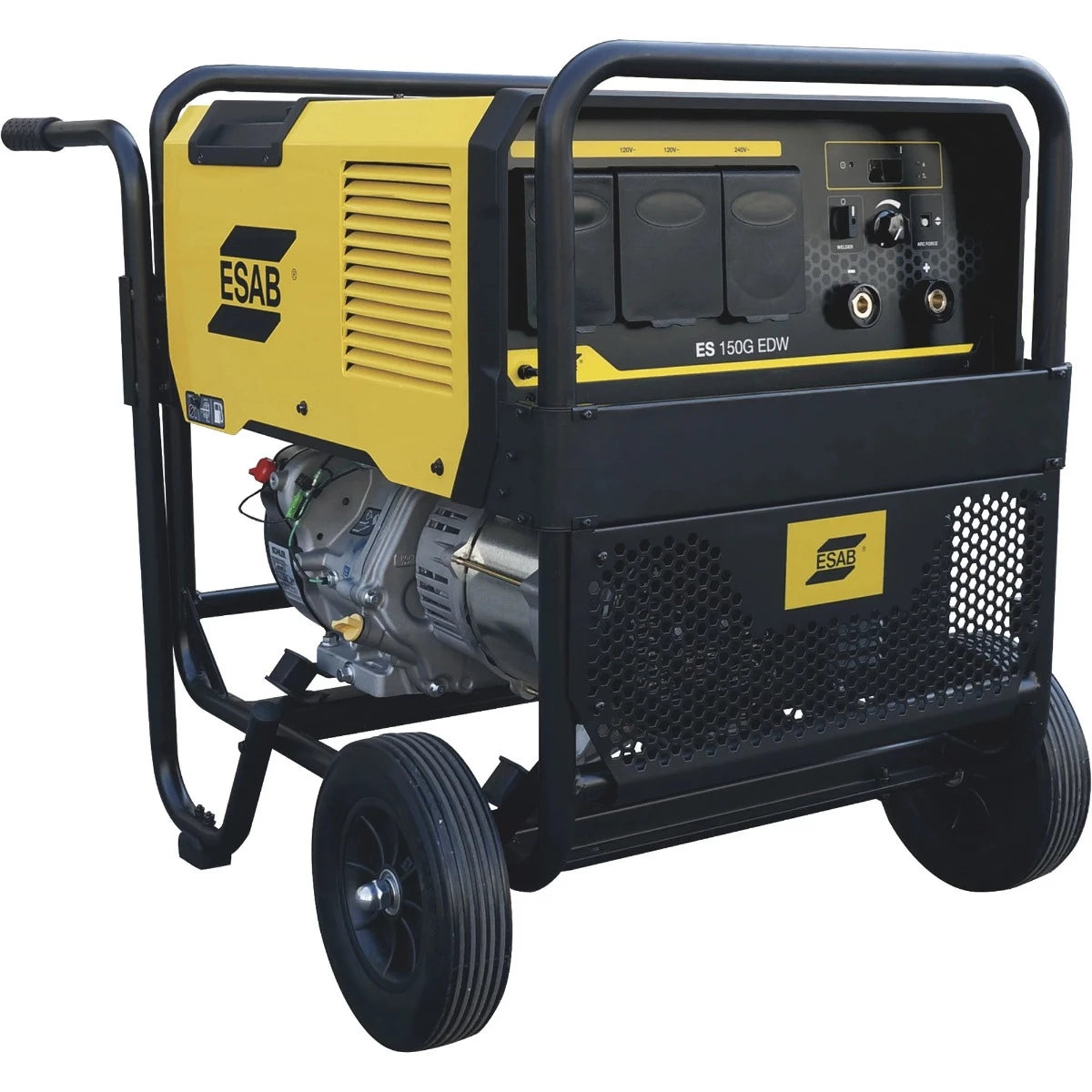

ESAB Ruffian ES 150G Engine Driven Welder



Lightweight, powerful, all-in-one DC Stick welding machine and AC generator combined.

As a welder, Ruffian uses inverter technology to provide up to 150 A of reliable welding power at 60% duty cycle in a very stable arc that helps avoid rework. As an AC generator, Ruffian uses a 14 HP Kohler® engine to deliver up to 4.5 kW starting power. 120 VAC and 240 VAC outlets provide versatility to run lights, grinders, hand tools – even light-duty plasma cutters and MIG TIG welders – and to use as emergency backup.

Ruffian ES 150G Features

• 150A Welding Output @ 60% Duty Cycle
• Running gear included with convenient lifting handles
• Exceptional performance with cellulosic electrodes (6010)
• Kohler Command PRO CH440 Engine, 5 gal. fuel tank
• 4x 120V, 20A outlets, and 1x 240V, 50A outlet for auxiliary power

• Technical Data

  Product Name Part Number		ESAB Ruffian ES 150G EDW 0707070150
  Welding Process		Stick (SMAW)
  Rated Duty Cycle		150A, 26V @ 60% 115A, 24.6 @ 100%
  Welding Output Range		20A – 150A DC, 78V OCV
  Engine Type		14HP Kohler CH440, Gasoline
  Generator Power (Peak Cont.)		4,500W Peak 4,000W Continuous
  Engine Start Type		Pull start only
  Auxiliary Power Outlets		4x 120V 15 20A 1x 240V 50A
  Auxiliary Power (Max.)		120V: 34A 240V: 17A
  Dimensions L x W x H – Without Wheels and Handles: – With Wheels and Handles:		28.70 x 22.52 x 25.98 in 40.83 x 28.74 x 31.61 in
  Weight (Empty Weight, No Gas) – Without Wheels and Handles: – With Wheels and Handles:		223.8 lb (101.5 kg) 248.0 lb (112.5 kg)
  Warranty		3-Year ESAB: Welder Generator 3-Year Kohler: Engine



  What s Included

  • Ruffian ES 150G EDW Machine
  • Handle kit (4 pieces)
  • 2x Wheels and axle
  • Hardware to mount handles and axle
  • ESAB Ruffian Manual, Kohler CH440 Manual

  • *Electrode holder, ground clamp, cables and connectors not included. Ruffian 150G is equipped with female Dinse 35 (50mm) connectors.
