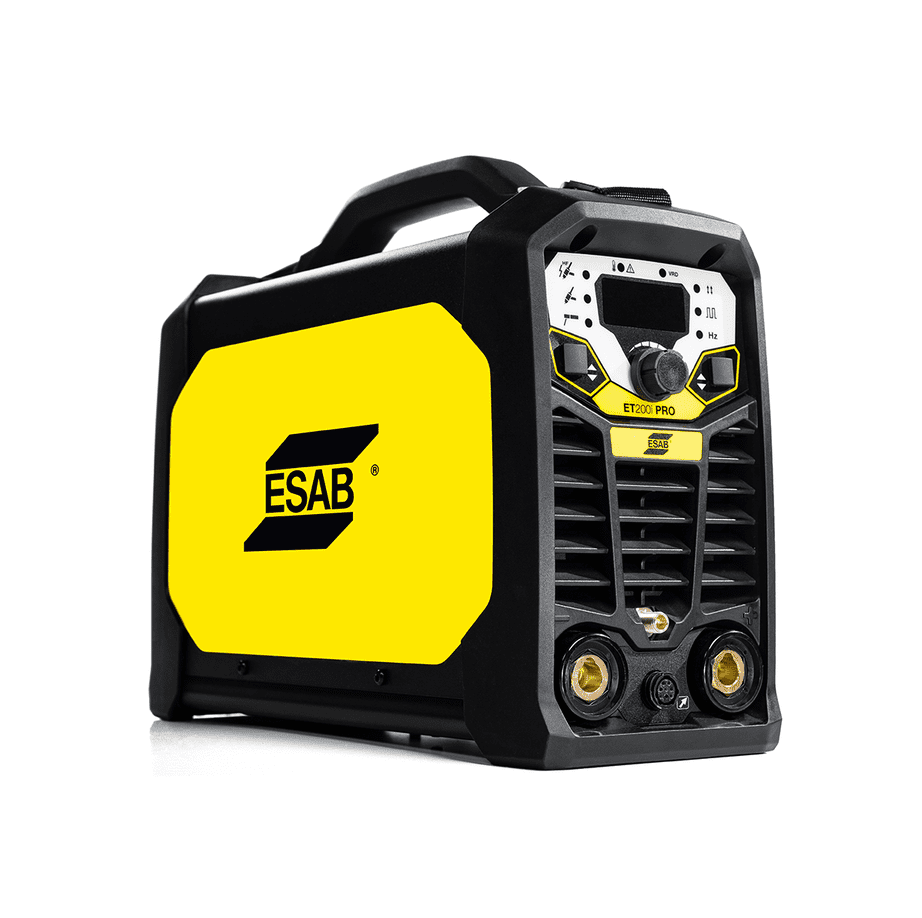

Rogue ET 200iP is a compact but powerful TIG and Stick welding machine which includes professional settings to maximize productivity. The robust case ensures this machine will stand up to the duties of a portable machine welding on site. Includes an ergonomic handle and carrying strap. Take the Rogue 200iP wherever work demands.

Rogue ET200iP performs with exceptional arc characteristics, both in TIG and Stick mode. There are a broad number of advanced parameters that can be adjusted in TIG: gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of these can be worked with 2 or 4 stroke mode. Additional pulse feature with up to 500Hz adjustment helps control heat input. In Stick the user can adjust Hot Start or Arc Force, to match his best welding preferences or application. All of this can be quickly adjusted by simple and intuitive user interface.

• Dual voltage input 120 230V flexibility
• Excellent high frequency TIG start
• Easy to Use – compatible with generators (5kW recommended)
• Robust Design – IP23S designed for both fabrication floor or site applications
• Advanced TIG controls for full cycle control to match every application you need, and pulse feature up to 500 Hz for perfect control of heat input
• PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
• Optional remote current adjustment from: TIG torch, foot pedal, hand remote control

• Product Name		ESAB Rogue 200iP Pro
  Welding Processes		DC TIG (GTAW), Pulsed TIG (GTAW-P), Stick (SMAW),
  Input Voltage		120-230V Inclusive, 1Ph
  Welding Output Amps		TIG: 10-200A (DC) Stick: 10-200A (DC)
  Output Current		DC – CC
  Aluminum TIG		❌ – Suitable for Steel, Cast Iron, Copper, Ferrous Metals
  Remote Control Connector		✔️ – Hand Control on Included Torch, Foot Pedal Available
  Dimensions		H: 10.4 in. (264 mm) W: 6.0 in. (153 mm) D: 15.7 in. (403 mm)
  Weight		21.2 lb (9.6 kg)
  Warranty		3-Year ESAB Warranty

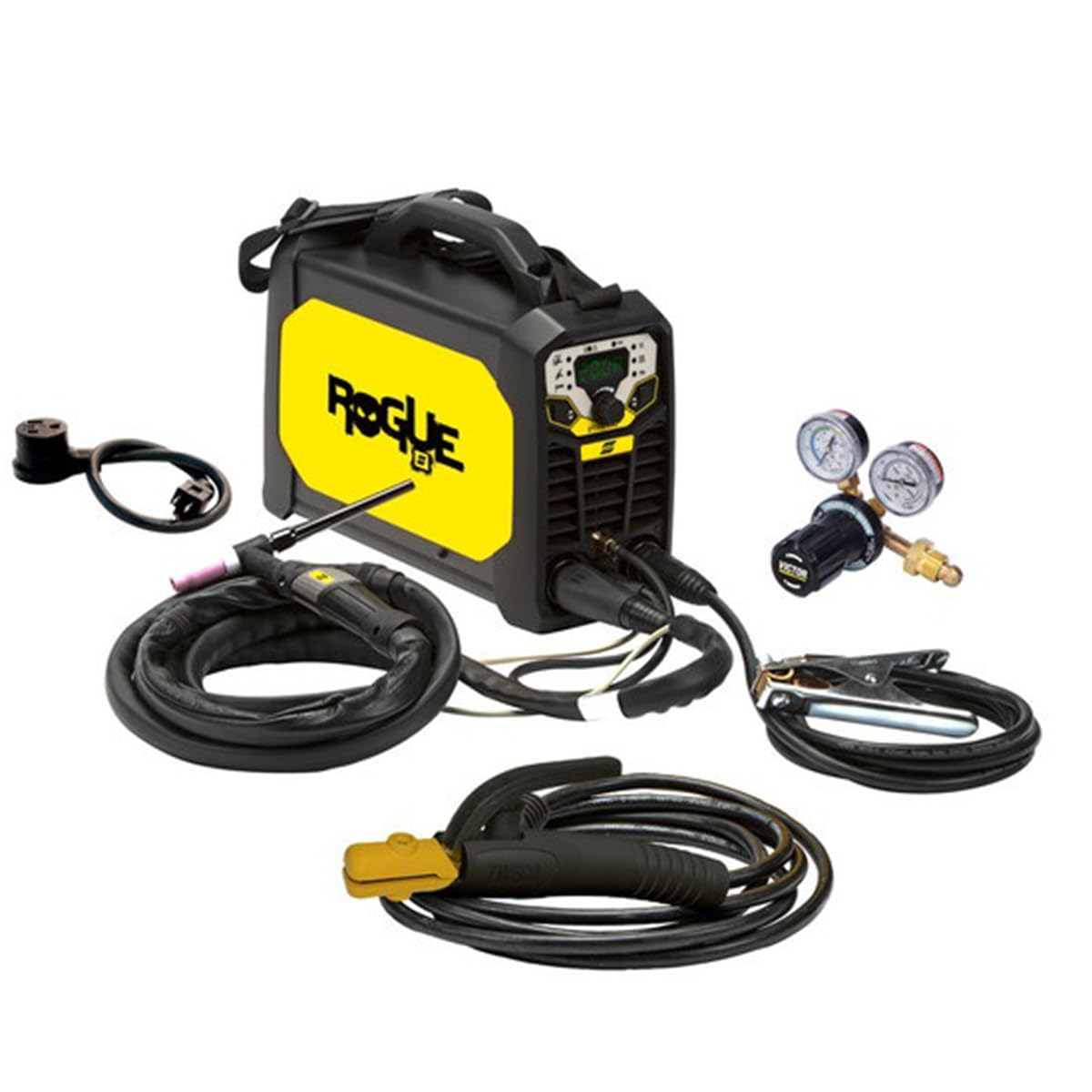

  What s Included:

  • Power Source
  • Work Clamp Leadset
  • Electrode Holder Leadset
  • TIG Torch
  • Gas Hose and Gas Regulator
  • Power Adaptor (120 V–230 V)
  • Instruction Manual

  • Spec Sheet     Accessories    User Manual
