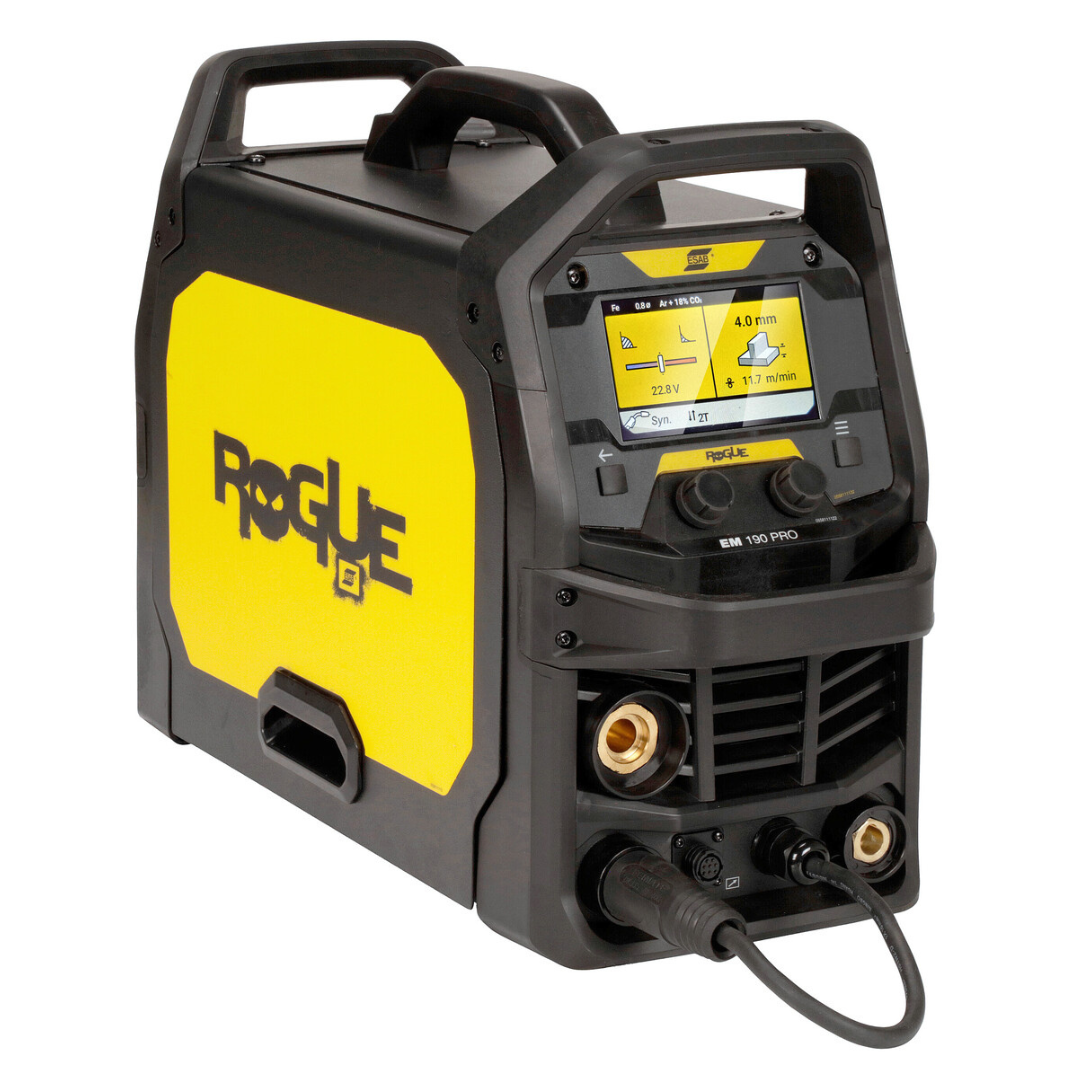

ESAB Rogue EM 190 PRO MIG Welding Machine

Until the end of 2024 – Purchase an EM 190 PRO and receive a $135 Rebate.
Rebates issued by ESAB, see esabburnandearn.ca to claim your reward.



Portable, 230V Powered MIG and Flux Core Welding System

ESAB Rogue EM 190 PRO is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.

With a weight of only 16.9 kg (37.3 lbs), single voltage input, 230V single-phase and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Top Features

• Intuitive 5.0 in TFT screen offers clear views with direct interaction

• Synergic Weld Programs – full range of welding parameters, 0.5 – 10.0 mm (0.020 – 0. 375 in) with single knob control

• Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)

• Unique rugged industrial design – supporting multiple lift points and cable management

• Arc Dynamics – fine tune arc characteristics for a crisp stiff arc for carbon steel or a smooth soft arc for stainless steel

• Jobs – 10 memory save recall function

• Spool Gun Ready – Rogue automatically configures set up when spool gun is connected

• Multi-language display – configure the display to 1 of 29 languages

• IP23S rated for indoor outdoor use

• Additional Product Specifications

  Product Name Part Number		ESAB Rogue EM190 PRO 0700301083
  Welding Processes		MIG, Flux Core
  Spool Gun Compatible		– Tweco Spool Gun 160A
  Spool Sizes		4 and 8 Spools Accepted
  Input Voltage		230V AC, 50 60 Hz.
  Input Current		16A Max.
  Output Power		Current: 30-190A Voltage: 12-26V
  Dimensions		23.2 x 8.7 x 15.2 in.
  Weight		37 lb. (Unloaded)
  Warranty		3 Year, ESAB Authorized Repair Centres

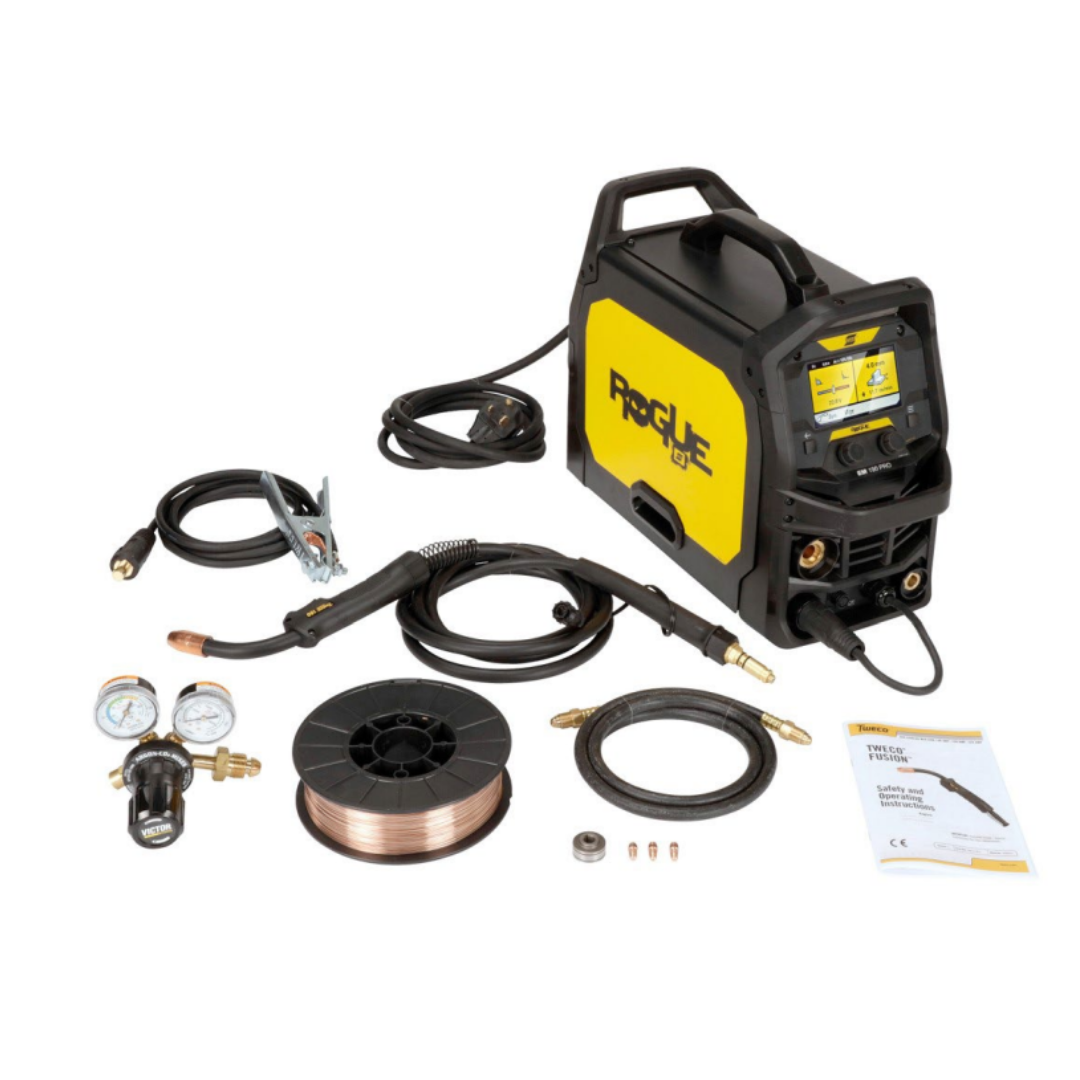

  What s in the Box?

  • ESAB Rogue EM190 Power Source
  • Tweco Fusion 180 MIG Torch 3 m (10 ft)
  • Victor Gas Regulator Flow gauge
  • 10 ft. Ground Cable Work Lead

  • 10 ft. Gas Hose
  • Sample Spool of ESAB OK AristoRod 12.50 (ER70S-6), 0.030 , 2.2 lb
  • Drive Rolls: 0.6 0.8 mm (0.023 0.030 in.) V (fitted), 0.8 0.9 mm (0.030 0.035 in.) V and 0.8 0.9 mm (0.030 0.035 in.) Knurled
  • Instruction manual

  • Full Product Spec Sheet | Tweco Fusion 180 – Velocity Light Duty Torch Consumables | Rogue EM 190 PRO Manual
