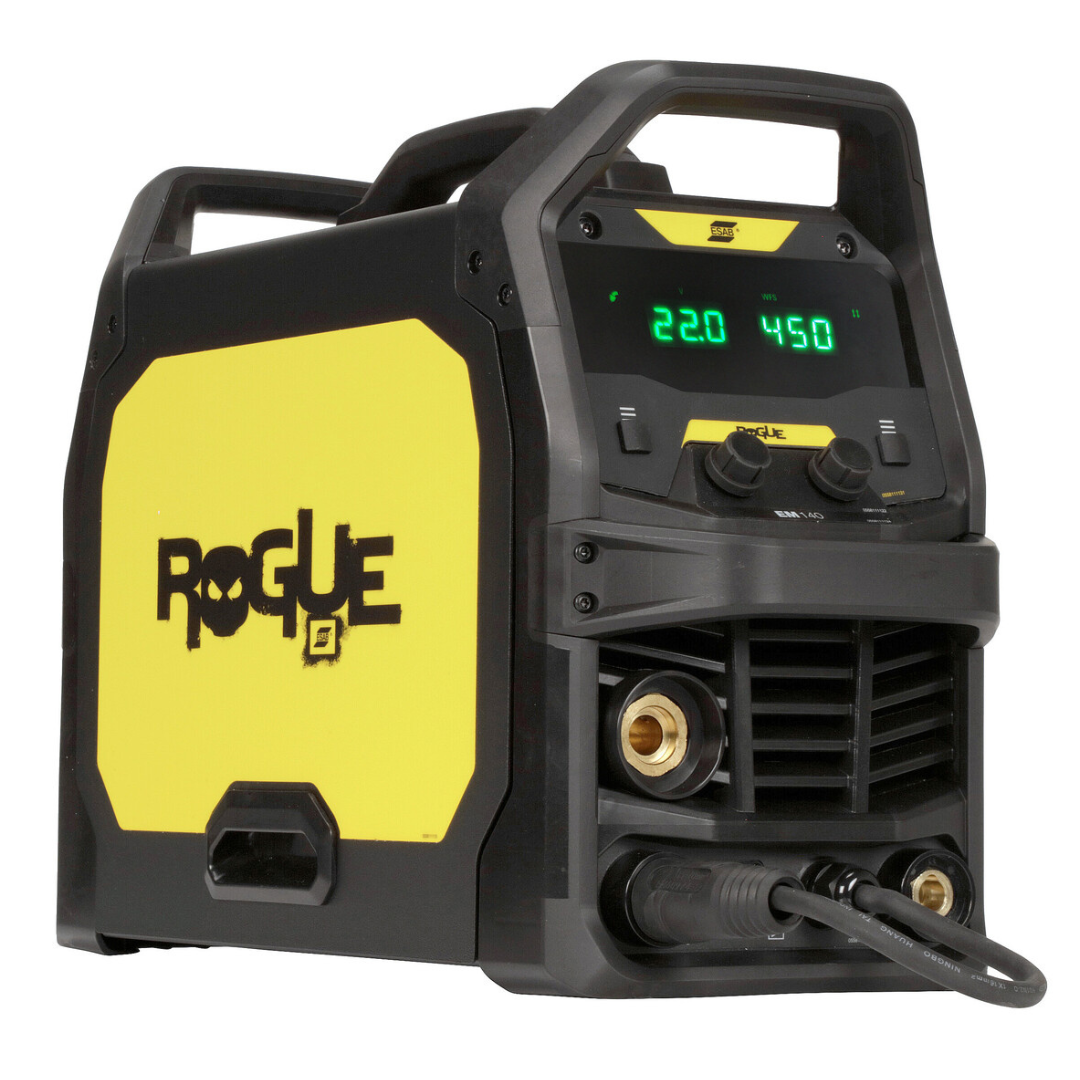

ESAB Rogue EM140 MIG Welding Machine

Portable, 120V Powered MIG and Flux Core Welding System

ESAB Rogue EM 140 is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.

With a weight of only 13 kg (28.8 lbs), single voltage 120V single-phase input and compatibility with 6 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Top Features

• Weld material up to 1 4 (6 mm) thick
• Large 14 Segment Display – instantaneous feedback for both voltage and wire feed speed for clear viewing

• Unique rugged industrial design – supporting multiple lift points and cable management

• Arc Dynamics – fine tune arc characteristics based on the material being welded

• Advanced control features – adjustable pre- and postflow, burn back control, creep start and 2T 4T trigger latch

• Spool Gun Ready – Rogue automatically configures set up when a spool gun is connected

• IP23S rated for indoor outdoor use

• Additional Product Specifications

  Product Name Part Number		ESAB Rogue EM140 0700301082
  Welding Processes		MIG, Flux Core
  Spool Gun Compatible		✅ – Tweco Spool Gun 160A
  Spool Sizes		4 and 8 Spools Accepted
  Input Voltage		120V AC, 50 60 Hz.
  Input Current
  Output Power		Current: 30-140A Voltage: 12-22V
  Dimensions		23.2 x 8.7 x 15.2 in.
  Weight		29 lb. (Unloaded)
  Warranty		3 Year, ESAB Authorized Repair Centres

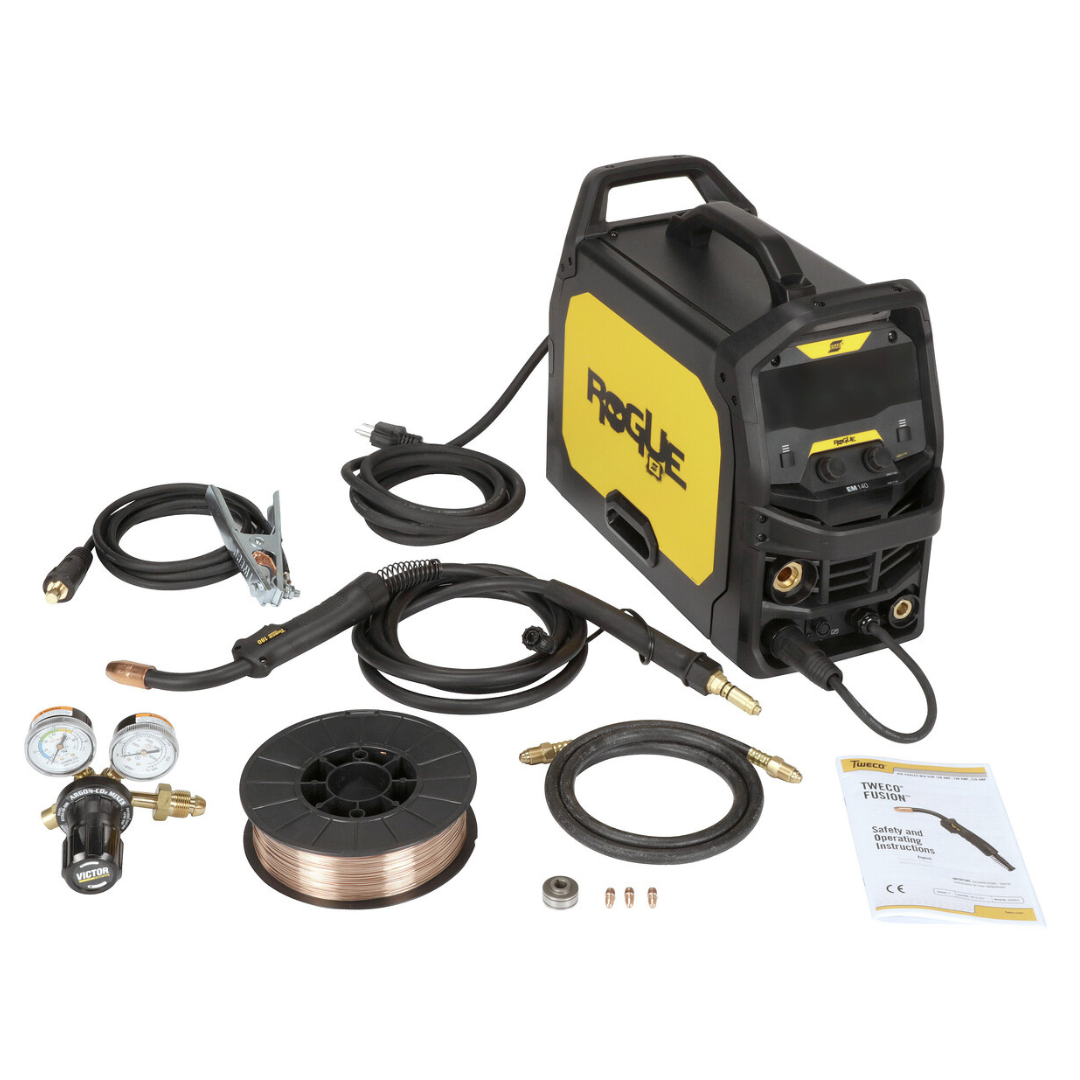

  What s in the Box?

  • ESAB Rogue EM140 Power Source
  • Tweco Fusion 180 MIG Torch 3 m (10 ft)
  • Victor Gas Regulator Flow gauge
  • 10 ft. Ground Cable Work Lead

  • 10 ft. Gas Hose
  • Sample Spool of ESAB OK AristoRod 12.50 (ER70S-6), 0.030 , 2.2 lb
  • Drive Rolls: 0.6 0.8 mm (0.023 0.030 in.) V (fitted), 0.8 0.9 mm (0.030 0.035 in.) V and 0.8 0.9 mm (0.030 0.035 in.) Knurled
  • Instruction manual

  • Full Product Spec Sheet | Tweco Fusion 180 – Velocity Light Duty Torch Consumables
