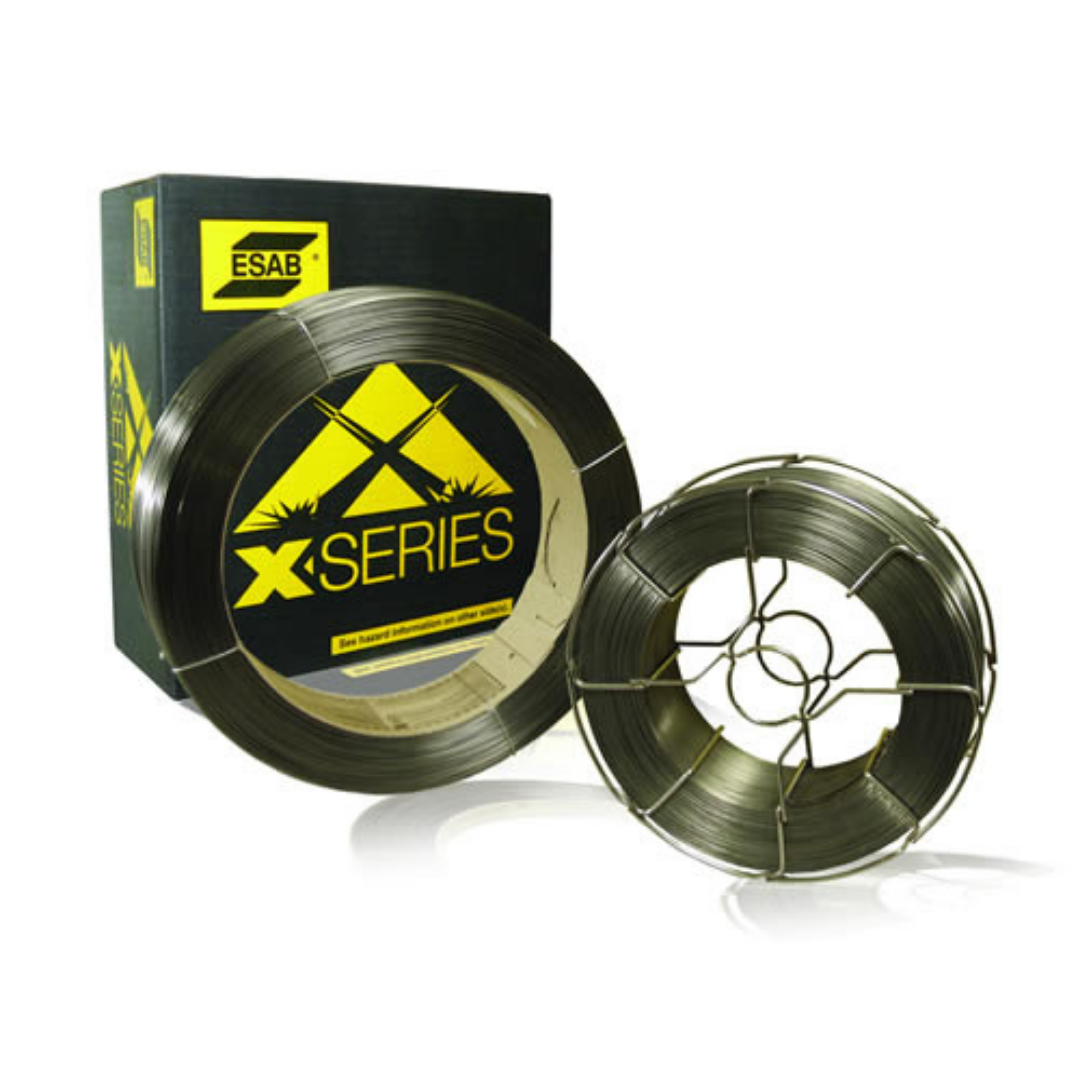

ESAB DUAL SHIELD® 710X-M

Mild steel flux core MIG wire

Dual Shield 710X-M provides outstanding operator appeal with an easily controlled arc, improved operation at both lower and higher current levels, minimal spatter and
easily removed slag. Dual Shield 710X-M is designed to be used with 75 25 Argon CO2 gas mix, however pure CO2 may also be used.

Applications include railcar and earth moving equipment, as well as general structural steel fabrication.

• General purpose mild steel cored wire
• Low Fume
• All-position Wire
• CWB Approved
• CWB: E491T1-GA3-CS1-H8
• AWS A5.36 : E71T1-M21A4-CS1-DH8
• AWS A5.20 : E71T-1MD-H8 T-9MD-H8

• Documents and Specs

  Available Spool Sizes, Wire Diameter & Item Number:

  • 33 lb (15 Kg) – 0.045 (1.2mm) – 245019807
  • 33 lb (15 Kg) – 0.052 (1.4mm) – 245019815
  • 33 lb (15 Kg) – 1 16 (1.6mm) – 245019823
