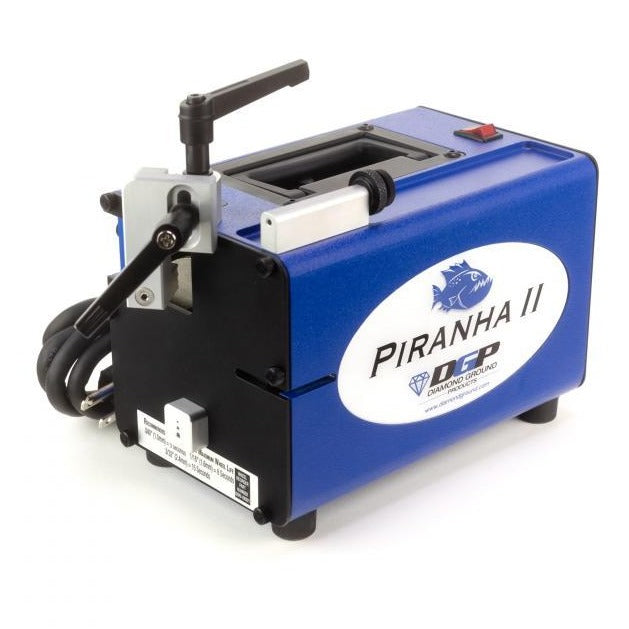

DGP Piranha II Tungsten Electrode Grinder

DGP-PG2-A

The Piranha II tungsten electrode grinder is the best value you can find for properly sharpening tungsten welding electrodes. It is simple to set up and operate and is a safe alternative to a standard bench grinder or some of the lesser quality tungsten electrode grinders on the market. The Piranha II tungsten electrode grinder includes a universal collet which will grind tungsten electrode diameters from .040 (1.0mm) to 3 32 (2.4mm) and as short as .75” (19.5mm) and taper angles from 10˚ – 60˚. Additionally, this high quality tungsten electrode grinder is fully enclosed and will contain excess tungsten dust

• Range of Included Angle: 10° – 60°

• Electrode Diameters: .040″ (1.0 mm), 1 16″ (1.6 mm), 3 32″ (2.4 mm)

• Minimum Electrode Length: 1.75″ (44.5 mm)

• Voltage: 110 220 VAC, 50 60Hz

• Power Consumption: 60 Watts

• Motor: 6,000 rpm, .5 amps

• Length: 7.750″ (196.85 mm)

• Width: 4.750″ (120.65 mm)

• Height: 6.000″ (152.4 mm)

• Weight: 10 lbs (4.54 kg)

• • SAFETY
    Enclosed grinding area captures Tungsten dust for easy disposal.

  • WELD QUALITY
    20 Ra surface finish improves Tungsten life, arc starting, arc stability & produces consistent weld penetration.

  • PRODUCTIVITY
    Correctly & consistently diamond grind your Tungsten Electrode (up to 3 32″) longitudinally in less than 30 seconds.

  • VALUE
    Diamond grinds, flats & notches your Tungsten economically.

  • • Easy set-up, optimal consistency and near-perfect repeatability.
    • Compact, durable and solid design with no vibration.
    • Longitudinal 20 RA grinding for maximum arc starting, arc stability, electrode life and weld penetration.
    • Universal collet arm for 3 electrode sizes – 040″ (1.0mm), 1 16″ (1.6mm), 3 32″ (2.4mm) – with no equipment changes.
    • Included angle scale for angles from 10° – 60° Precision tip flat gauge & depth adjustment stop ensures exact tungsten points every time – enabling consistent, repeatable arc performance and welding output.
    • Containment baffle to keep dust inside the grinder housing, for safety and easy disposal.
    • Electrode notching station for simple cut-off.
    • Double-sided grinding wheel for maximum wheel life and value.
    • Detailed manual for valuable engineering data and welding recommendations.
    • Integrated receptacle for electrode storage access.
    • Recessed carry handle for better form & function.

    • CSA Certification is available at an extra cost – 3 – 4 week lead time required.

      Link To: Replacement Grinding Discs
