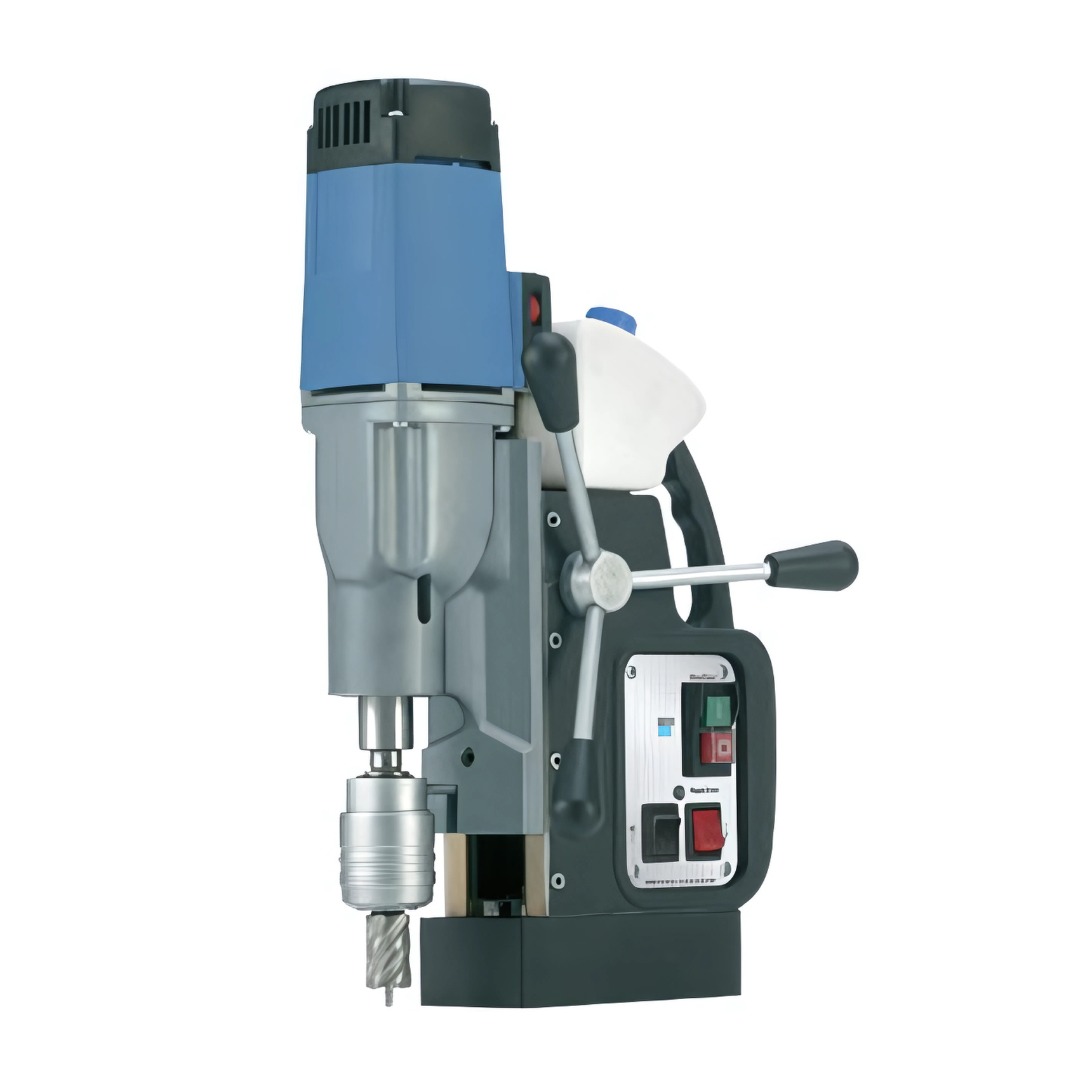

CS Unitec MAB 525 Portable Magnetic Tapping Drilling Machine

High power, ideal for production use

Features:

• 14.5 Amp doubleinsulated motor
• 19 high, 35 lbs.
• High-speed, 2-speed oilbath gearbox, ideal for annular cutters and twist drills
• Designed for continuous use
• Intelligent electronic torque control

• Drill up to 2-1 2 dia. – Tap up to 15 16 dia.

  • Uses annular cutters up to 2-1 2 dia.
  • Twist drilling capacity up to 1 dia.
  • Tapping capacity up to 15 16 dia.
  • Integrated cutting oil reservoir
  • Automatic internal lubrication

  • Integrated Safety

    • Green Red LED magnetic force indicator for safe operation
    • Internal cable routing
    • Simple, ergonomic arrangement of controls for one-handed operation
    • Emergency-off function

    • Items Included:

      • 1 Magnetic drilling machine
      • 1 Quick-change arbor system KEYLESS Weldon 3 4
      • 1 Manual arbor with set screws, Weldon 3 4 , MT3
      • 1 Geared chuck, 3 4
      • 2 Pilot pins – 1 and 2 depth
      • 1 Safety chain
      • 1 Drift key MT3
      • Tap collet adapters – 1 4 , 3 8 , 1 2 and 3 4
      • 1 Warranty certificate

      • Product Catalogue Page

        Specifications:

        Motor Power		14.5 Amp 110 Volt
        Weight		35 lbs.
        Stroke		6-1 3
        Hole Capacity		2-1 2 dia.
        Twist Drill Capacity		15 16 dia.
        Tapping Capacity		15 16 dia.
        Speeds		70-280 and 180-580 RPM
        Magnet Base Size		7-1 8 L x 3-1 2 W
        Dimensions		19 H x 11-3 4 L x 6-3 4 W
        Magnetic Force (1 Plate)		4500 lbs.
        Arbor Bore		3 4 Weldon Shank
        Spindle		MT3
        Automatic Lubrication		Included
