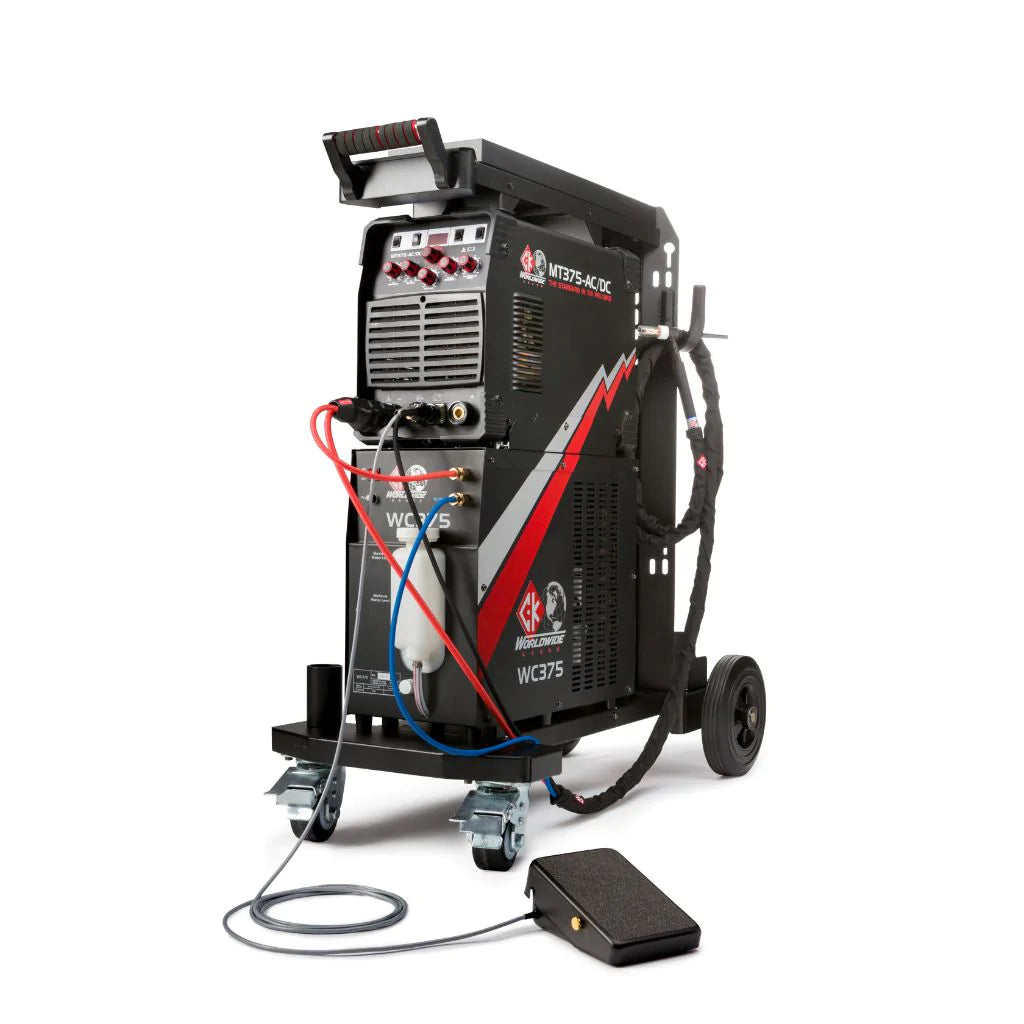

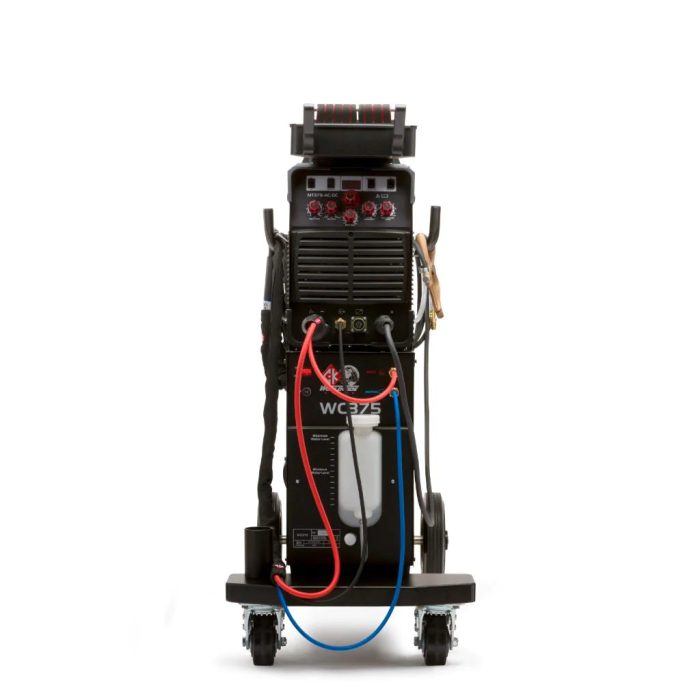

CK Worldwide MT-375 AC DC TIG Welder



The MT375-AC DC is the answer to both creativity and production driven TIG welding. This innovative water cooled TIG welding system provides the ability to quickly and efficiently adapt to dynamic welding situations, while maintaining the same quality of experience you have come to expect from CK Worldwide.

The MT375AC DC is a dual voltage powerful 375 amp inverter with; AC balance and frequency, post gas flow settings, and pulse settings that use analog dials allowing for ease of use and range.

With background testing performed by production welders and the best TIG welding professionals in the industry the MT375 delivers precision welding.

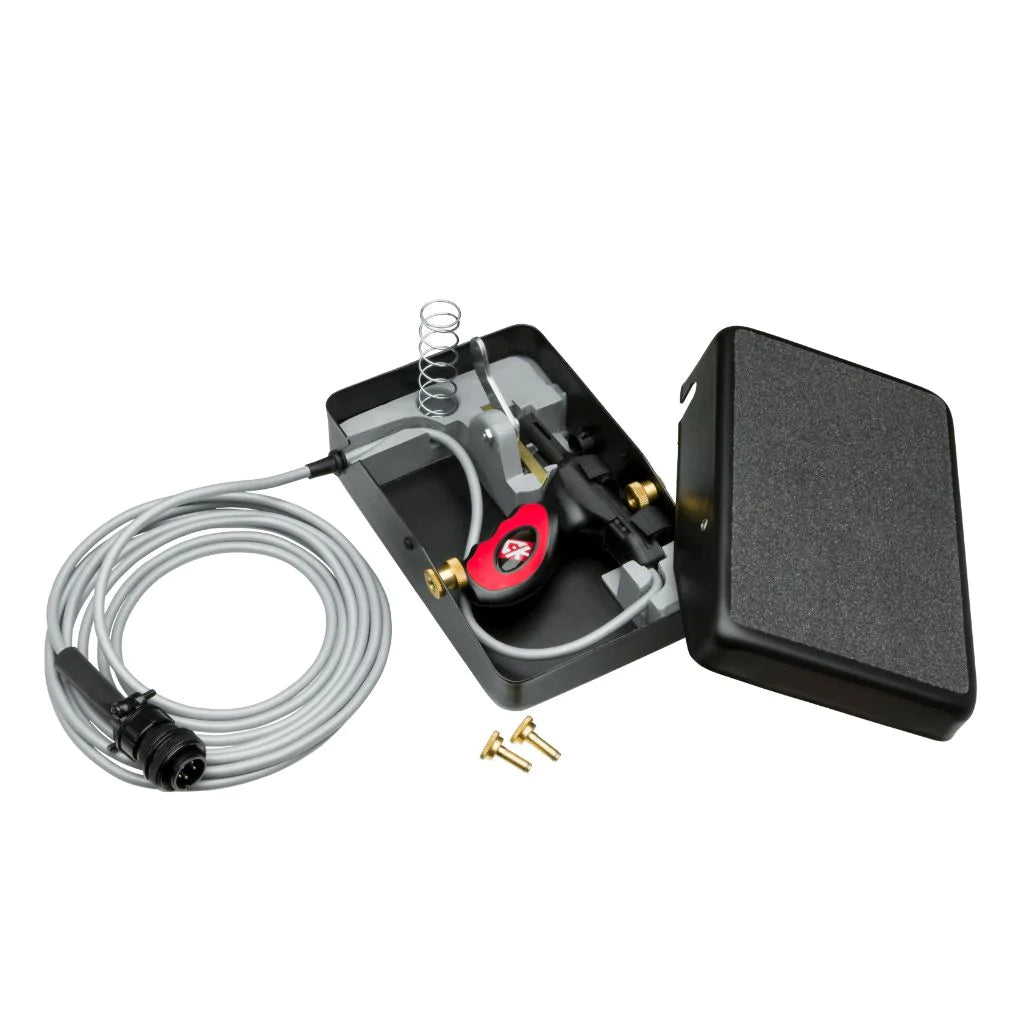

New patented Steady-Grip Foot Pedal

This new foot pedal design provides maximum flexibility due to the integrated Steady-Grip pistol grip amperage control. Simply open up the foot pedal using two quick release bolts and extract the popular Steady-Grip pistol grip amperage control when needed. Attach your torch via the hook-and-loop straps and you’re ready to weld!

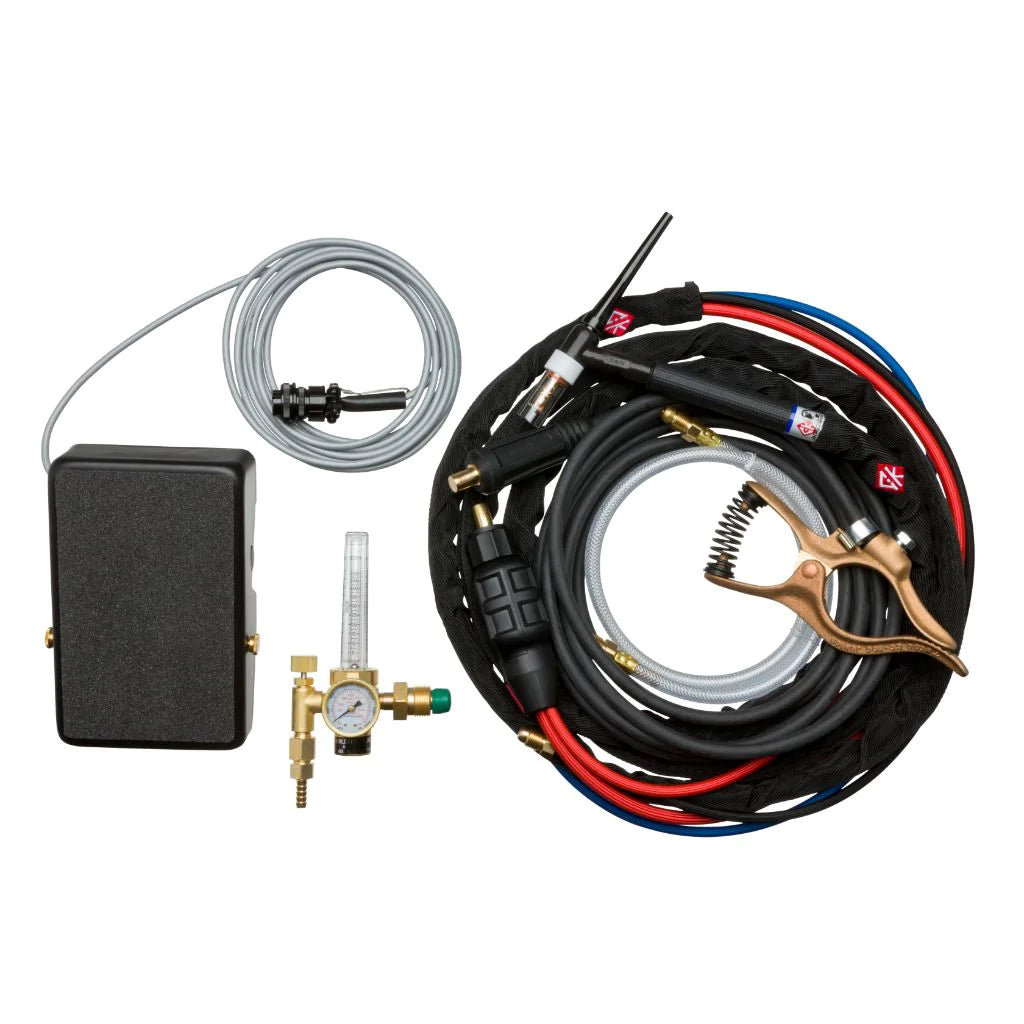

Package Includes:

• MT375 AC DC Welding Machine
• TL18 Flex-Head Trim-Line 350 amp TIG Torch
• Super-Flex™ Cables with Dinse Connector
• AK-3 Accessory Consumable Kit
• Ground Clamp
• Single-Flow Regulator
• Patented Steady-Grip™ Foot Pedal
• Dual Pump Water Cooler
• Utility Cart

• Machine Specifications

  Input Voltage		230VAC 10%, 50 60Hz, single phase
  460VAC 10%, 50 60Hz, single phase
  Input Current		230V: 44 Amps 26 Amps
  460V: 38 Amps 23 Amps
  Output Current Range GTAW		230V: 5 – 275 Amps DC; 5 – 260 Amps AC
  460V: 5 – 375 Amps DC; 5 – 360 Amps AC
  Output Current Range SMAW		230V: 10 – 200 Amps DC
  460V: 10 – 300 Amps DC
  Rated Output GTAW		230V: 275 Amps @ 21.0 VDC, 35% duty cycle 260 Amps @ 20.4 VAC, 35% duty cycle
  460V: 375 Amps @ 25.0 VDC, 35% duty cycle 360 Amps @ 24.2 VAC, 35% duty cycle
  Rated Output SMAW		230V: 200 Amps @ 28.0 VDC, 40% duty cycle
  460V: 300 Amps @ 32.0 VDC, 40% duty cycle
  Max. Open Circuit Volts		84 Volts
  Gas Pre Flow		0.5 Seconds
  Gas Post Flow		0.5 – 20 Seconds
  AC Frequancy		20 – 200 Hz
  Pulse Frequancy		1 – 200 Hz
  Pulse Width		50%
  Base Current		10 – 100%
  Arc Start		High Frequancy
  Dimensions		Height: 15 in. (381mm)
  	Width: 10.5 in. (267mm)
  Length: 20.5 in. (521mm)
  Weight		82 lb. (14.5kg)

  Full Product Brochure
