Bug-O K-BUG 3000 Digital Compact HD Fillet Welder

Magnetic travel carriage with oscillation for welding in all positions. Increases welding production, improves weld quality and reduces operator fatigue

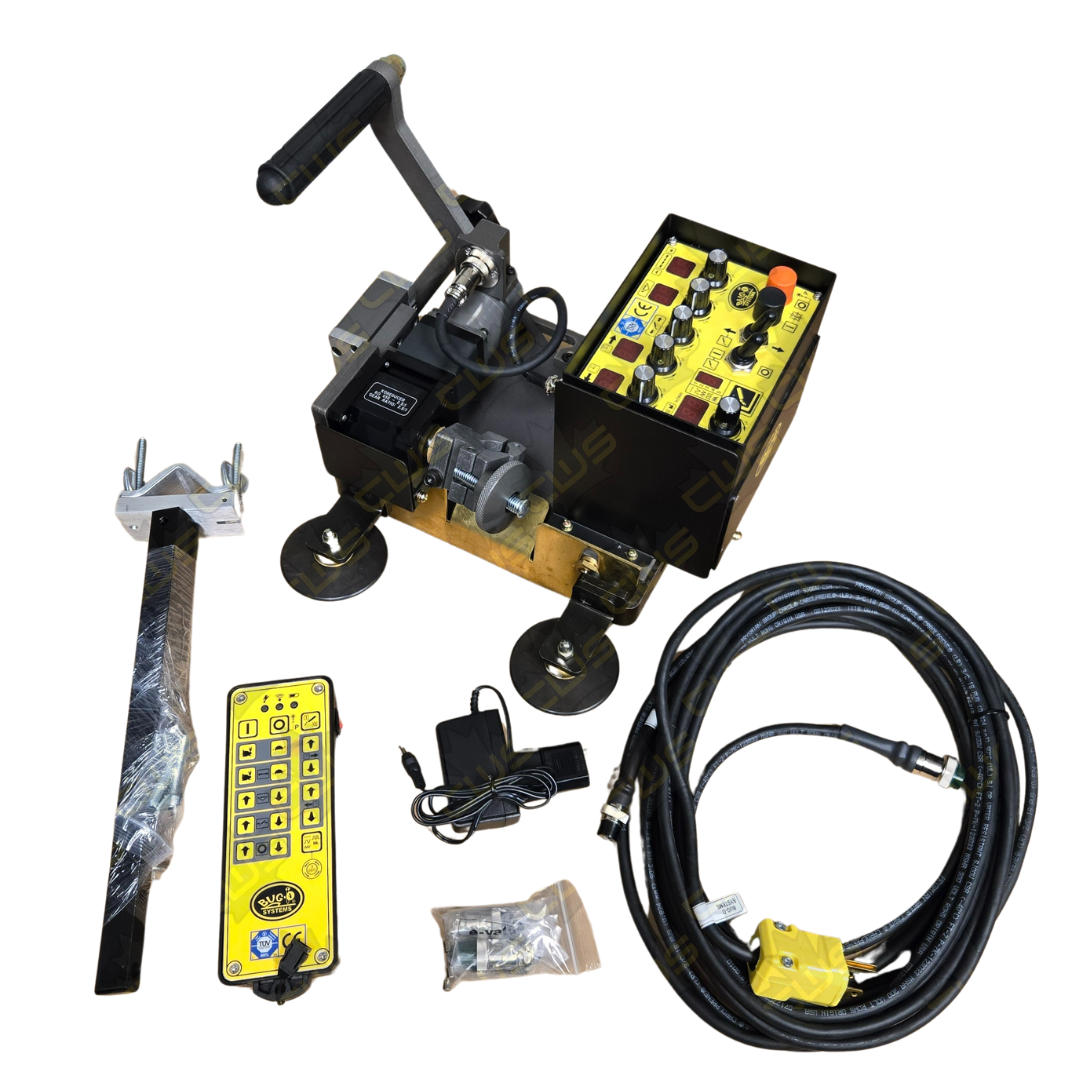

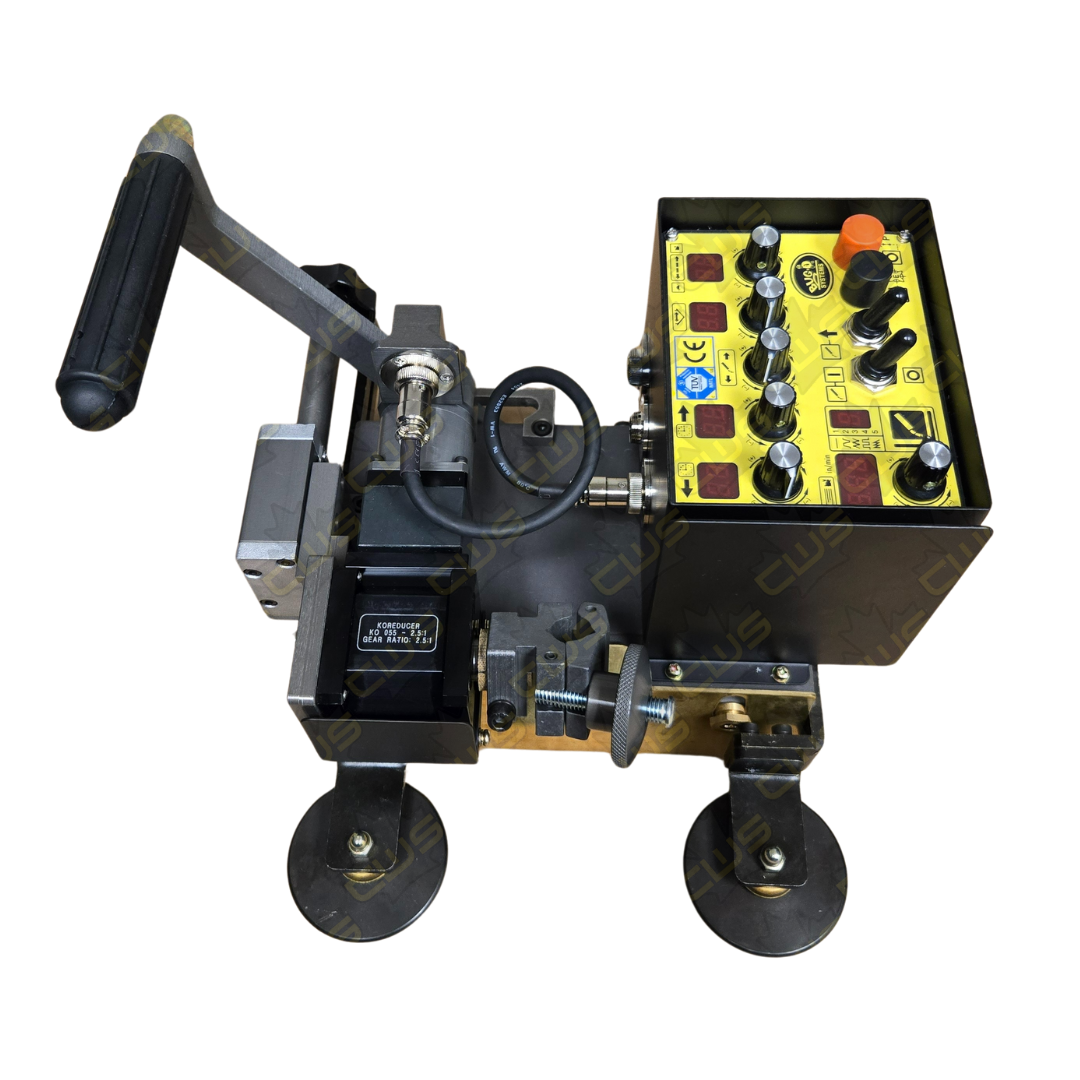

The K-BUG 3000 and the K-BUG 3000-BAT are digital, compact, heavy duty fillet welders with oscillation designed for welding fillet joints. A lightweight, portable carriage utilizes powerful magnets and guide wheel clamps to track directly to the work piece. The K-BUG 3000 and the K-BUG 3000-BAT feature programmable control of weave parameters that include tractor speed, weave speed and weave width.

This K-BUG also has independent settings for left right dwell. Both the K-BUG 3000 and the K-BUG 3000-BAT have the capability to perform in horizontal, vertical and flat positions.

Maximum vertical lifting capacity is 50 lbs (22.7 kg). Safety cables are recommended to protect the operator and equipment. Control of all tractor and welding functions can be set or adjusted on the tractor s panel or remotely via remote control. Remote range is up to 32 ft (10 m) away
