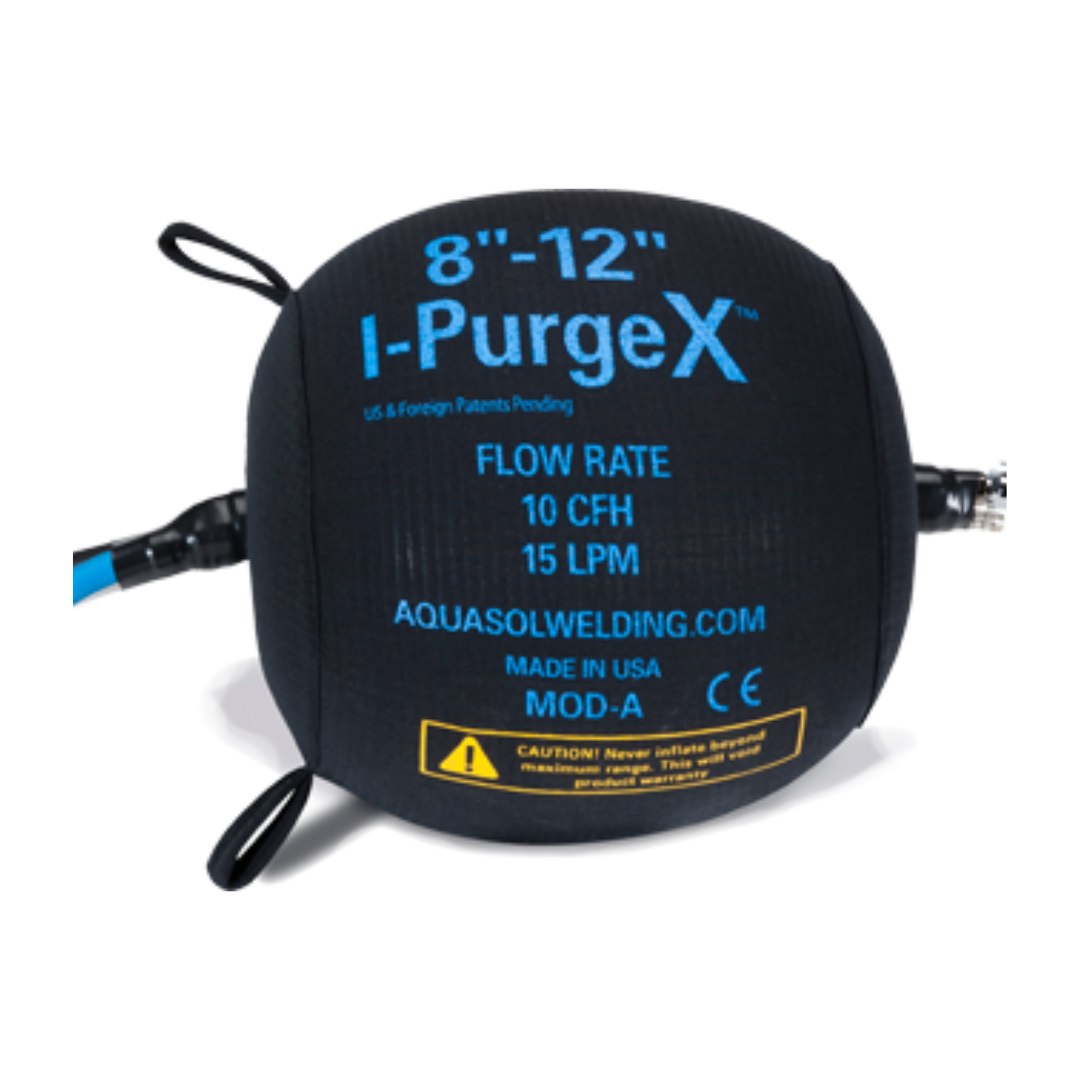

Aquasol I-Purge X Isolator® Single Bag Inflatable Purge Dams

Multi-Size Single Inflatable Purge Dam Systems

• Spark Resistant Durable Exterior Cover
• Heavy-Duty Interior Inflatable Bag
• Corrosion Resistant Quick Connect Fittings
• 10 (3m) Gas Hose With 1 4 NPT Female Fitting and Optional 1 4 NPT to 3 8 Hose Barb Fitting Included
• Preset Relief Valve Allows for Precise Flow Rates & Decreases the Risk of Over-Inflation
• Strong Pull Loops for Insertion and Removal
• Protective Carrying and Storage Bag Includeded
• Kink Resistant Hose Assures Continuous Gas Supply
• Made in USA
• Sold individually

• Available Options and Part Numbers

  ITEM NO		DIMENSIONS			DESCRIPTION
  		English		Metric
  XISO 2-3		2-3		51-76 mm		2-3 I-Purge X Isolator One-Sided Plug with 10 Hose and Valve
  XISO 4-6		4-6		102-152 mm		4-6 I-Purge X Isolator One-Sided Plug with 10 Hose and Valve
  XISO 8-12		8-12		203-305 mm		8-12 I-Purge X Isolator One-Sided Plug with 10 Hose and Valve
  XISO 14-18		14-18		356-457 mm		14-18 I-Purge X Isolator One-Sided Plug with 10 Hose and Valve
  XISO 20-26		20-26		509-660 mm		20-26 I-Purge X Isolator One-Sided Plug with 10 Hose and Valve
  XISO 28-36		28-36		711-914 mm		28-36 I-Purge X Isolator One-Sided Plug with 10 Hose and Valve
  XISO 38-48		38-48		965-1219 mm		38-48 I-Purge X Isolator One-Sided Plug with 10 Hose and Valve




  Please see the I-Purge X Datasheet for more Details

  Non Stock Item – Some modules may require a 3 week lead time

  System Size	4-6" – XISO4-6, 8-12" – XISO8-12, 14-18" – XISO14-18, 20-26" – XISO20-26
