3 Series Gas Lens Silica-Nitride Super Cups on Sale

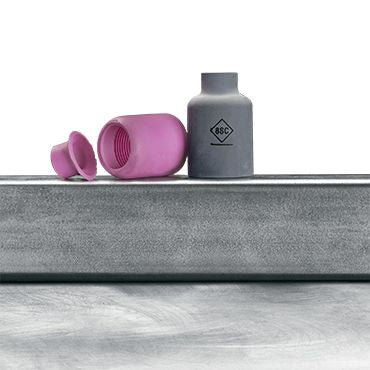

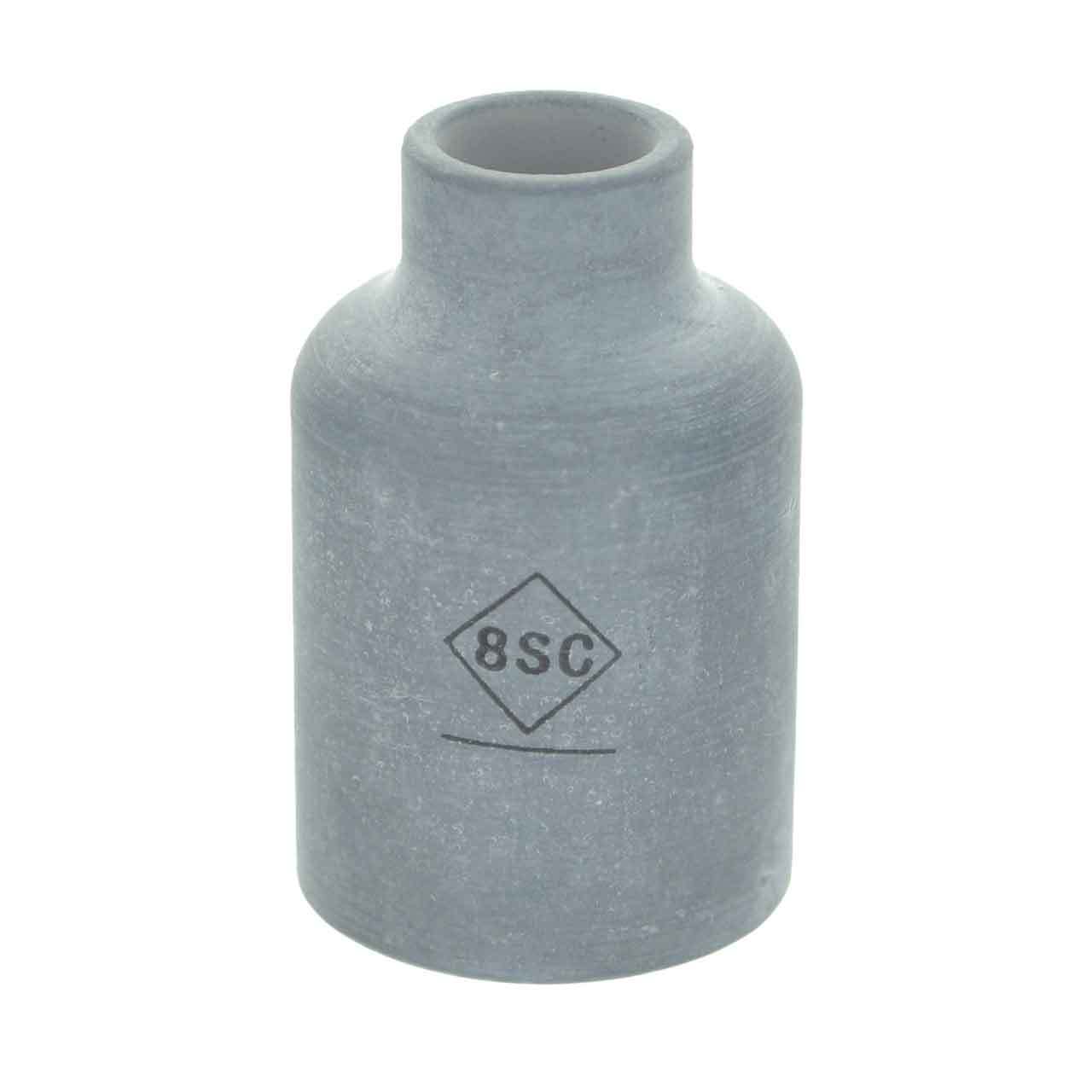

CK Worldwide 3 Series Large Diamater Gas Lens Silica-Nitride Super Cups

5% Discount added at checkout for orders of 10+ Cups

Silica-nitride ceramic cups are designed to run up to 40% cooler than standard alumina ceramic cups.  Oven curing in a pure nitrogen environment creates a much denser grain structure.  Silica-Nitride Super Cups eliminate the potential for thermal shock which can result in standard cups cracking, splitting and melting when exposed to high AC amperage TIG welding jobs.  Options below for available sizes with interchangeable Weldcraft part numbers.

Options:

Cup Size		Orifice Diameter		CK Part#		Weldcraft part#
#4		1 4		3SG4		54N18SC
#5		5 16		3SG5		54N17SC
#6		3 8		3SG6		54N16SC
#7		7 16		3SG7		54N15SC
#8		1 2		3SG8		54N14SC

• Cups measure 1-5 8 (47.6mm)

• Fits 3 Series Gas Lens

  Fits the following torches:

  • 17-Series
  • 18-Series
  • 26-Series
  • CK150
  • CKC150
  • CK210
  • CK300
  • CK510
  • FL150
  • FL25
  • FL3L
  • TL18
  • TL26
  • TL210
  • TL300
  • MT100
  • MT400
  • MT500
  • CKM350
  • CS300

Cup Size	#4 Super Cup – 3SG4, #5 Super Cup – 3SG5, #6 Super Cup – 3SG6, #7 Super Cup – 3SG7, #8 Super Cup – 3SG8
